SSUPD MESHLICIOUS V2?

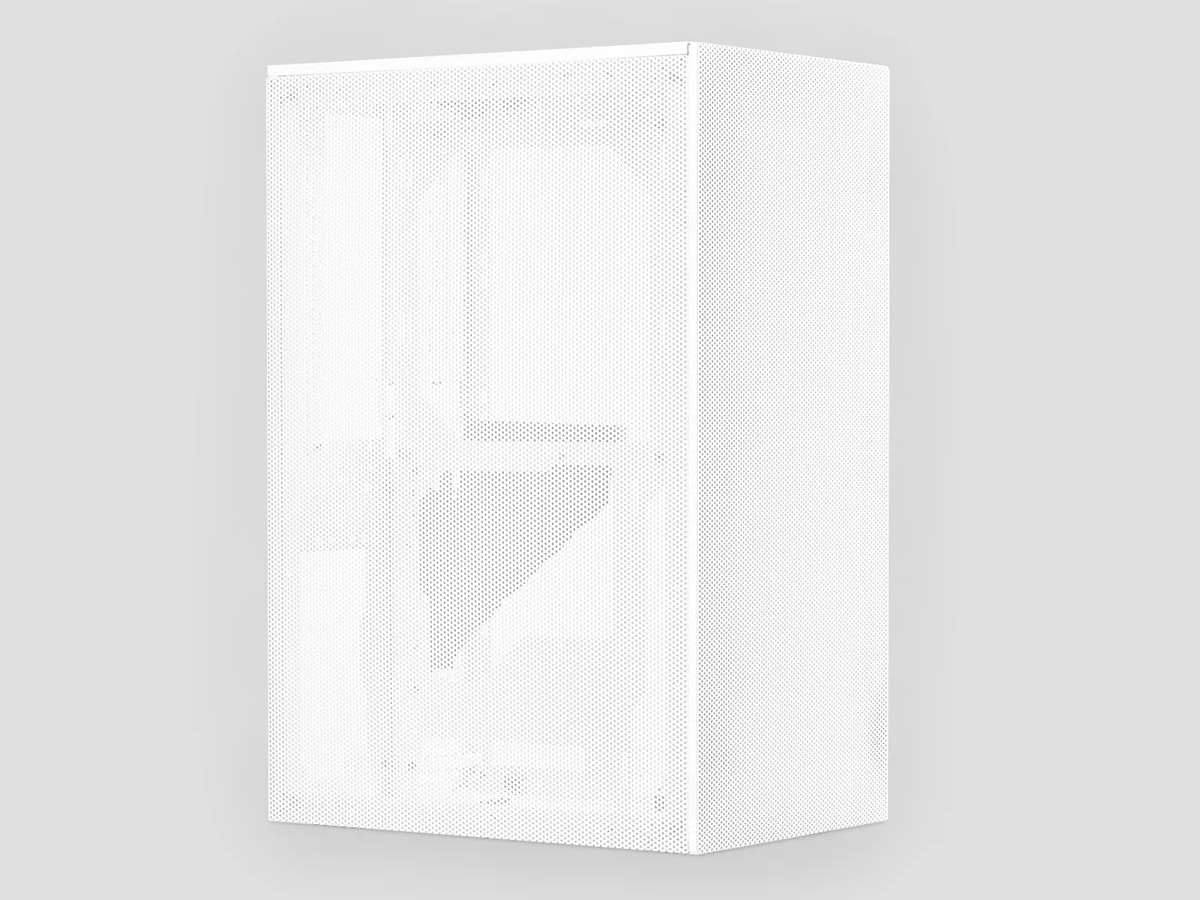

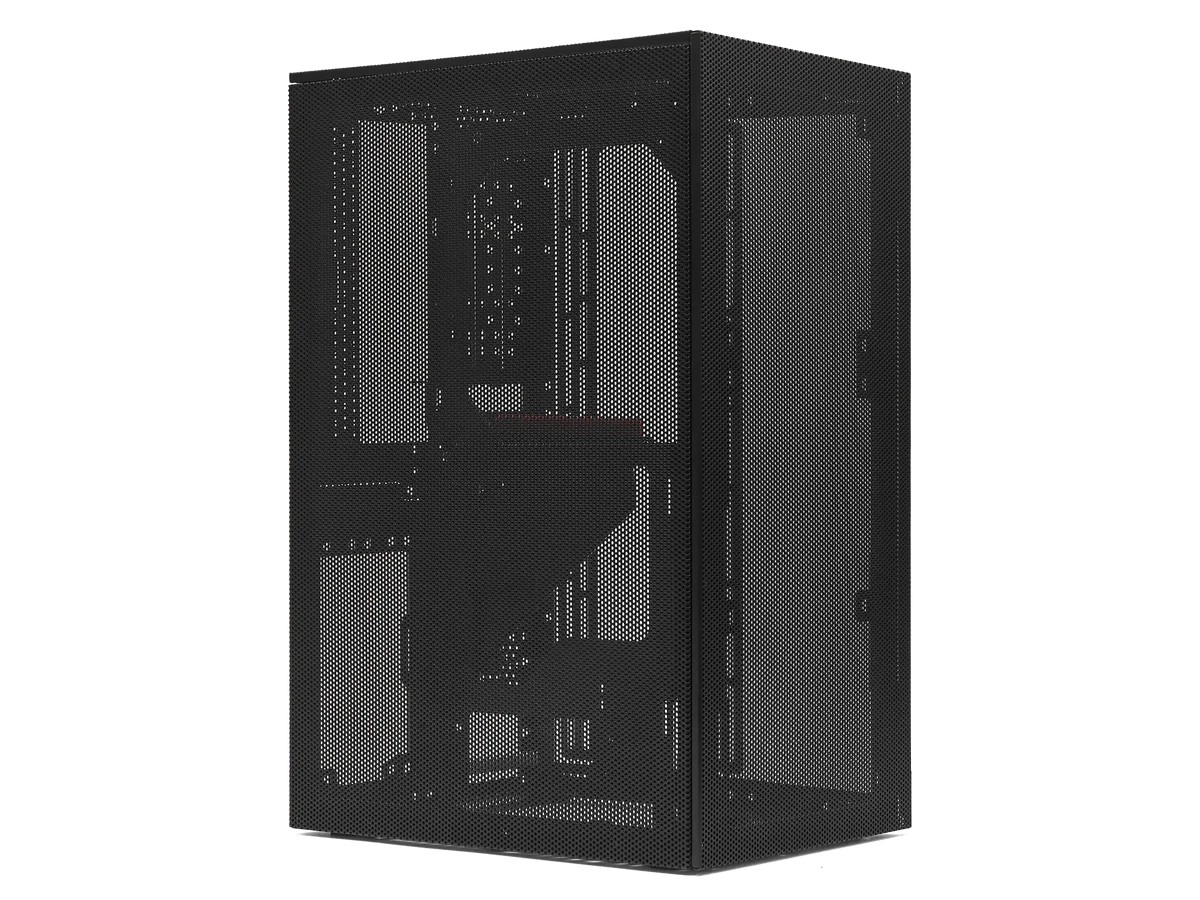

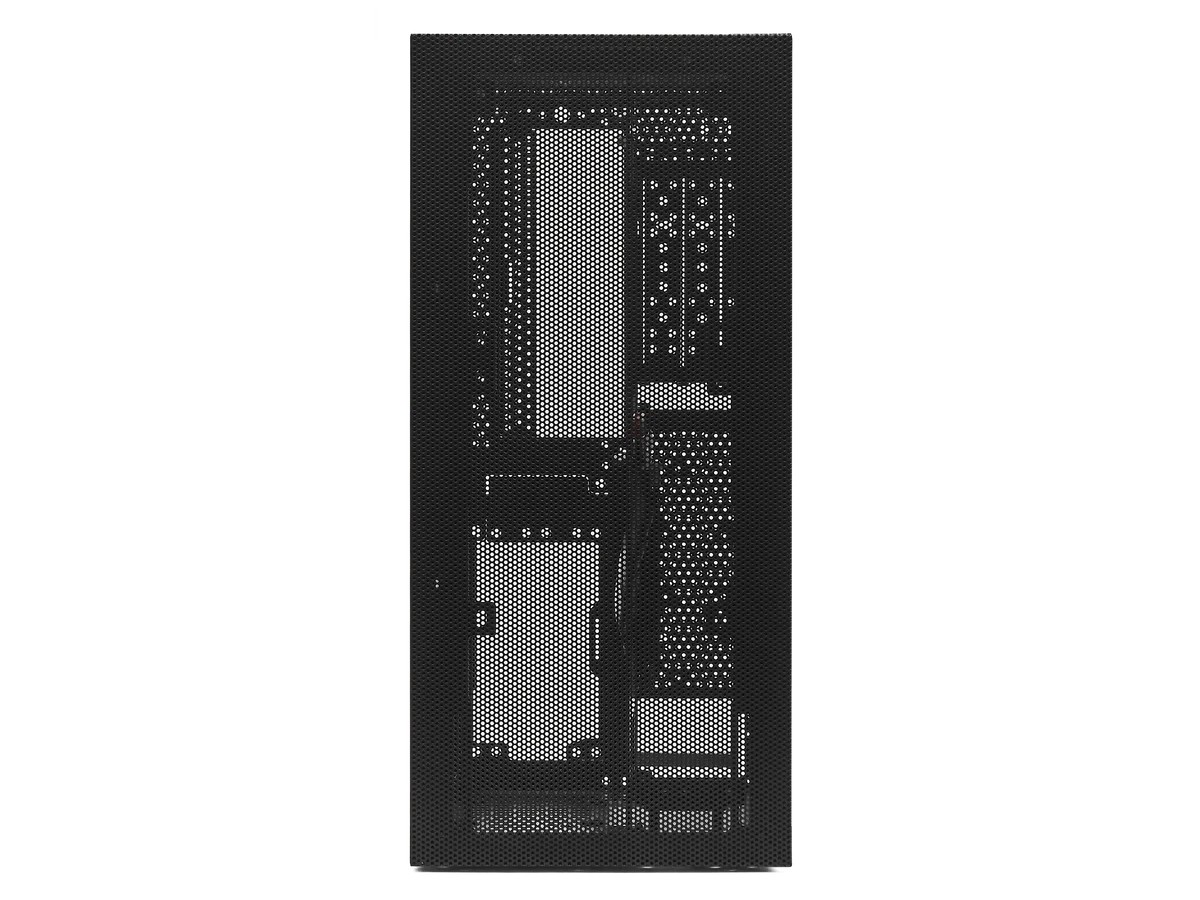

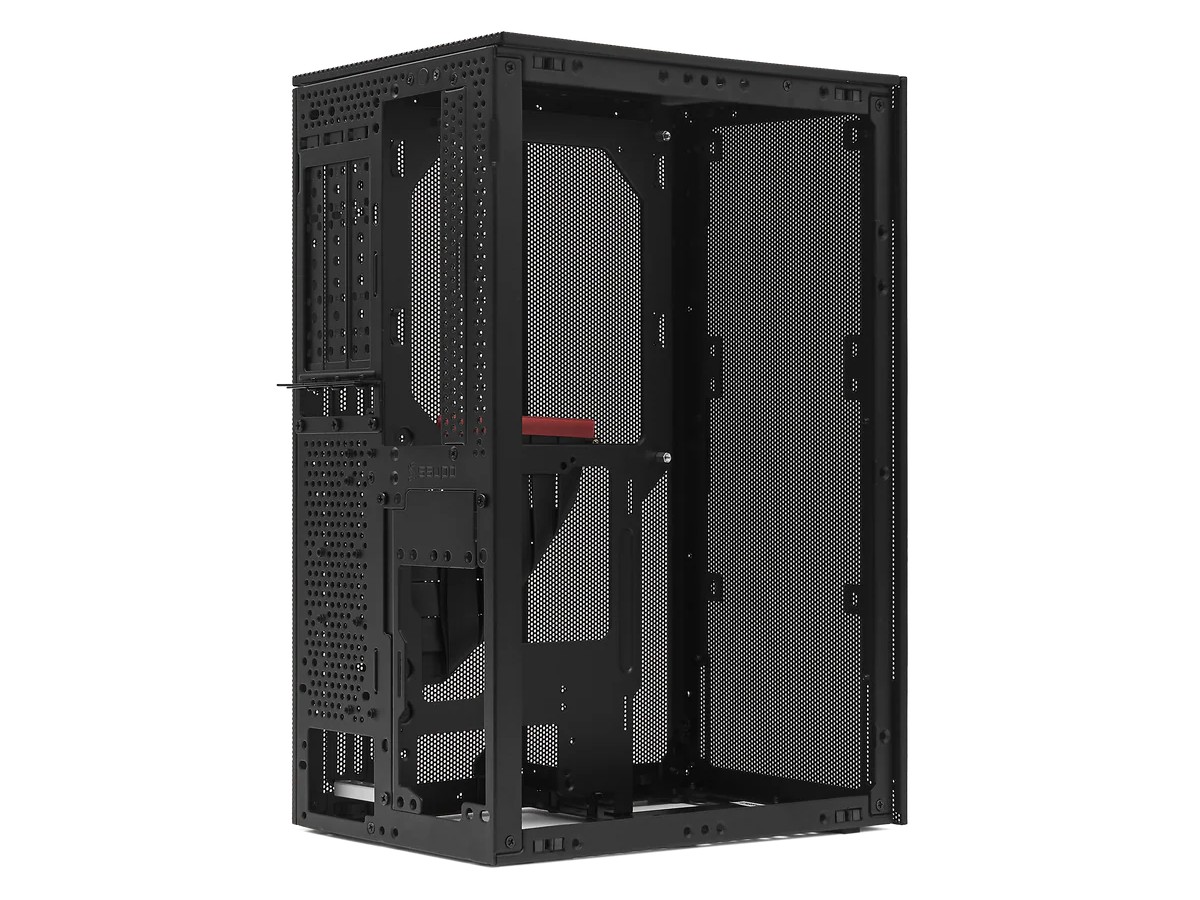

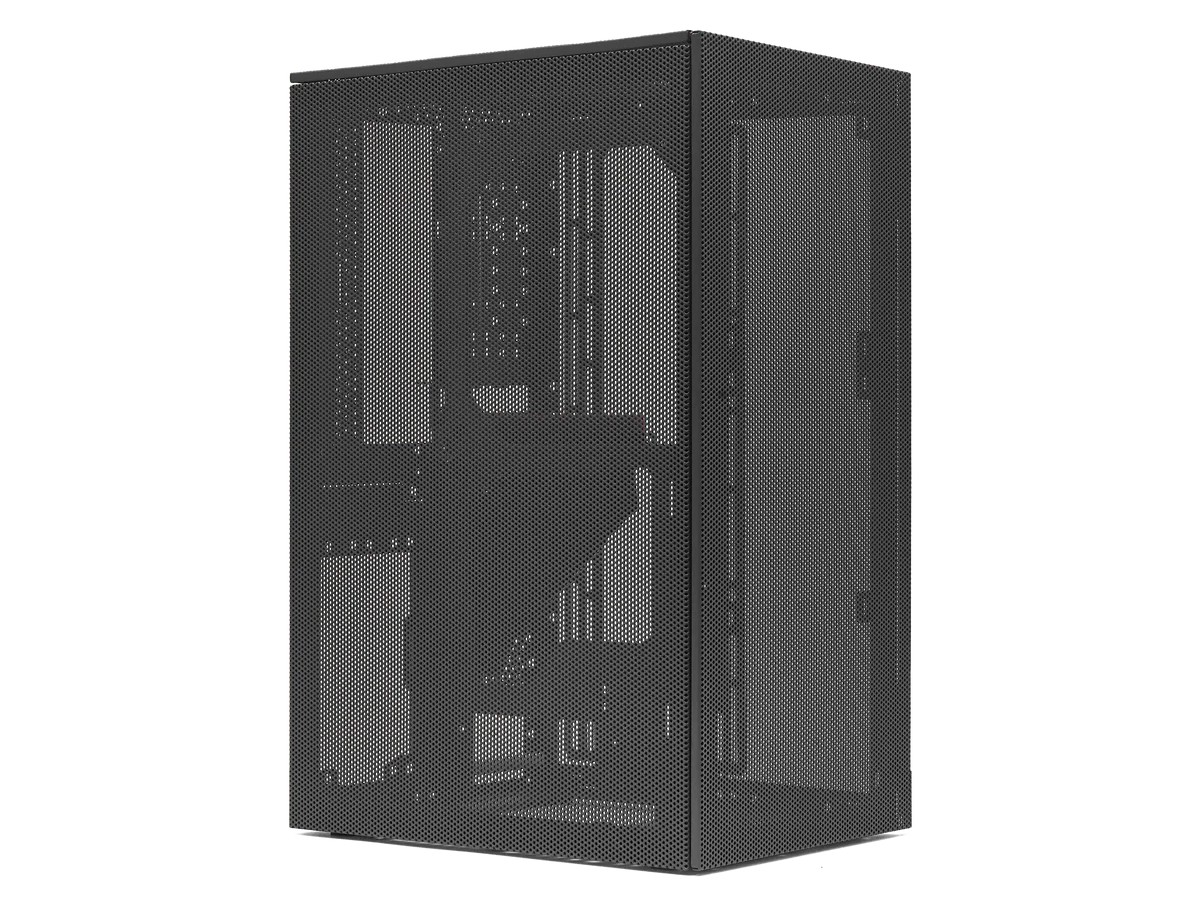

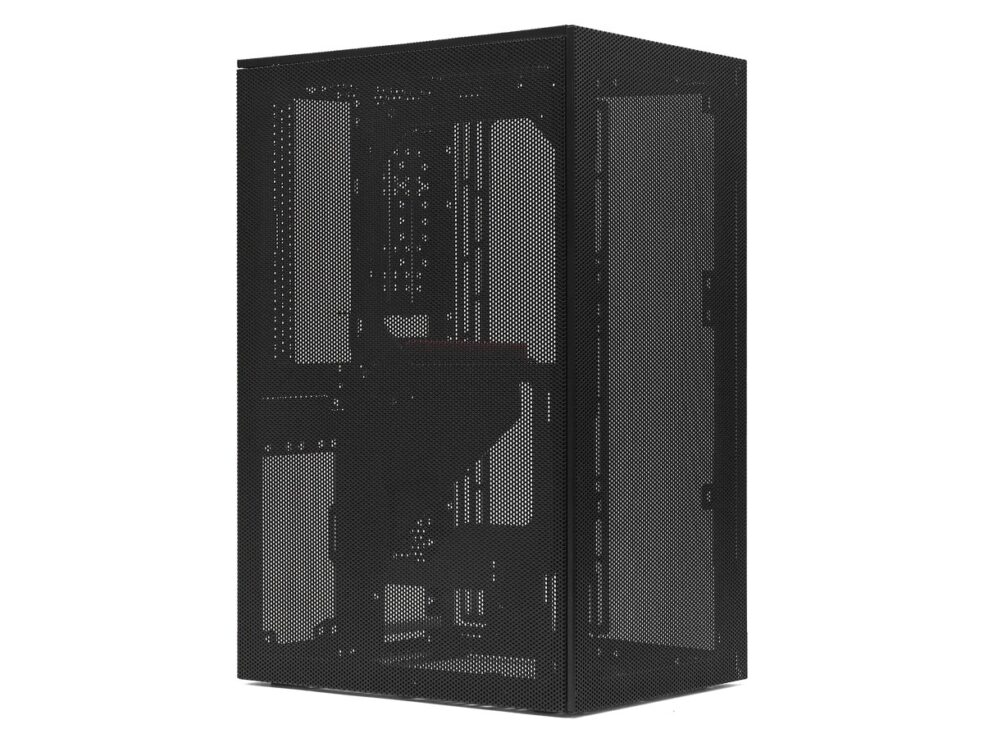

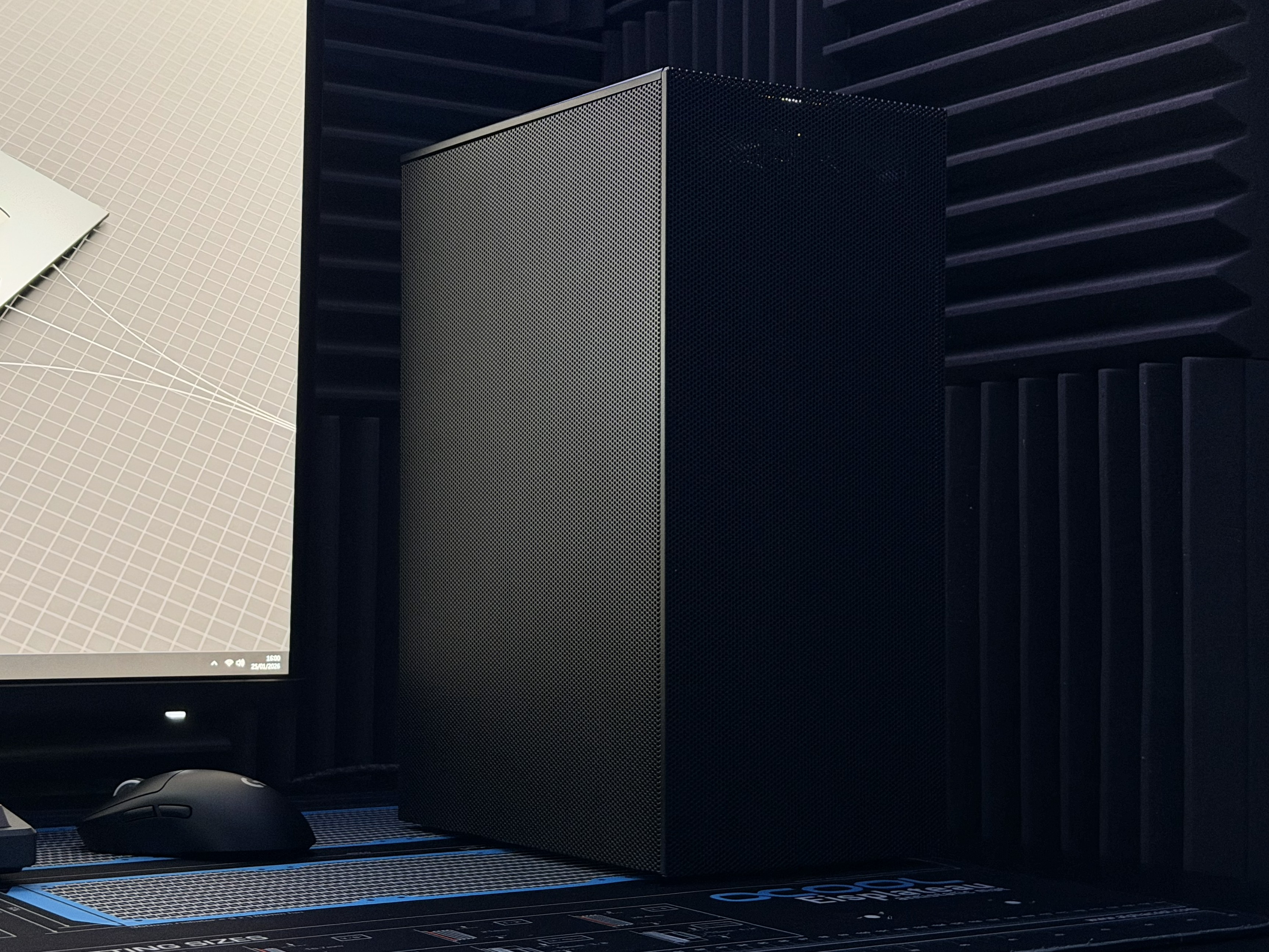

SSUPD Meshroom S is a 14.9L vertical sandwich layout SFF PC case with an all mesh external design and successor to the well received Meshlicious case. The case leans more towards liquid cooling with limited CPU air cooler clearance compared to standard reference layout cases of similar volume. You can also install ATX/MATX motherboards with some caveats... this makes the SSUPD Meshroom S one of the smallest ATX cases available.
View Gallery
SPECIFICATIONS
| MODEL | Meshroom S v2 (variant b) |
| MATERIALS | SGCC powder coated steel |
| DIMENSIONS | 247×167×362mm (L×W×H) |
| VOLUME | 14.93 Litres |
| CASE I/O | 1x USB 3.2 Gen 2 Type-C (20 Gbps), 1x USB 3.0 Type-A (5 Gbps), 1x Power button |
| MOTHERBOARD SUPPORT | Mini ITX / Mini DTX / Micro-ATX / ATX (ATX requires separate PCIe riser) |
| COOLER COMPATIBILITY | 3-slot mode: 74mm; 4-slot mode: 54mm |
| EXPANSION SLOTS | Rear GPU position: 4 slots (82mm); Front GPU position: 3 slots (61mm); Horizontal SFF GPU position: 3 slots (63mm) |
| RISER CABLE | PCIe 5.0 X16 |
| GPU COMPATIBILITY (REAR POSITION) | 3-slot mode: 332mm×63×153mm; 4-slot mode: 332×82×153mm |
| GPU COMPATIBILITY (FRONT POSITION) | 3-slot mode: 314×61×120mm |
| CASE FANS SUPPORTED | Top: 1x 120/140x15mm; Front: 2x 120/140mm |
| LIQUID COOLING SUPPORT | Front: 240/280mm (63mm thick including fans); Front GPU position: 240mm (53mm thickness including fans); Rear GPU position: 240/280mm (45mm thickness including fans, GPU limited to 31mm thickness) |
| POWER SUPPLY SUPPORT | SFX / SFX-L / ATX (ATX power supply support limited to ITX motherboards or short GPU (239×63×160mm) |
| 2.5 / 3.5” DRIVES SUPPORTED | Horizontal SFF GPU position: 6× 2.5” SSD; Front/Rear GPU position: 4× 2.5” SSD; Front/Rear/Horizontal GPU position: 2× 3.5” HDD |

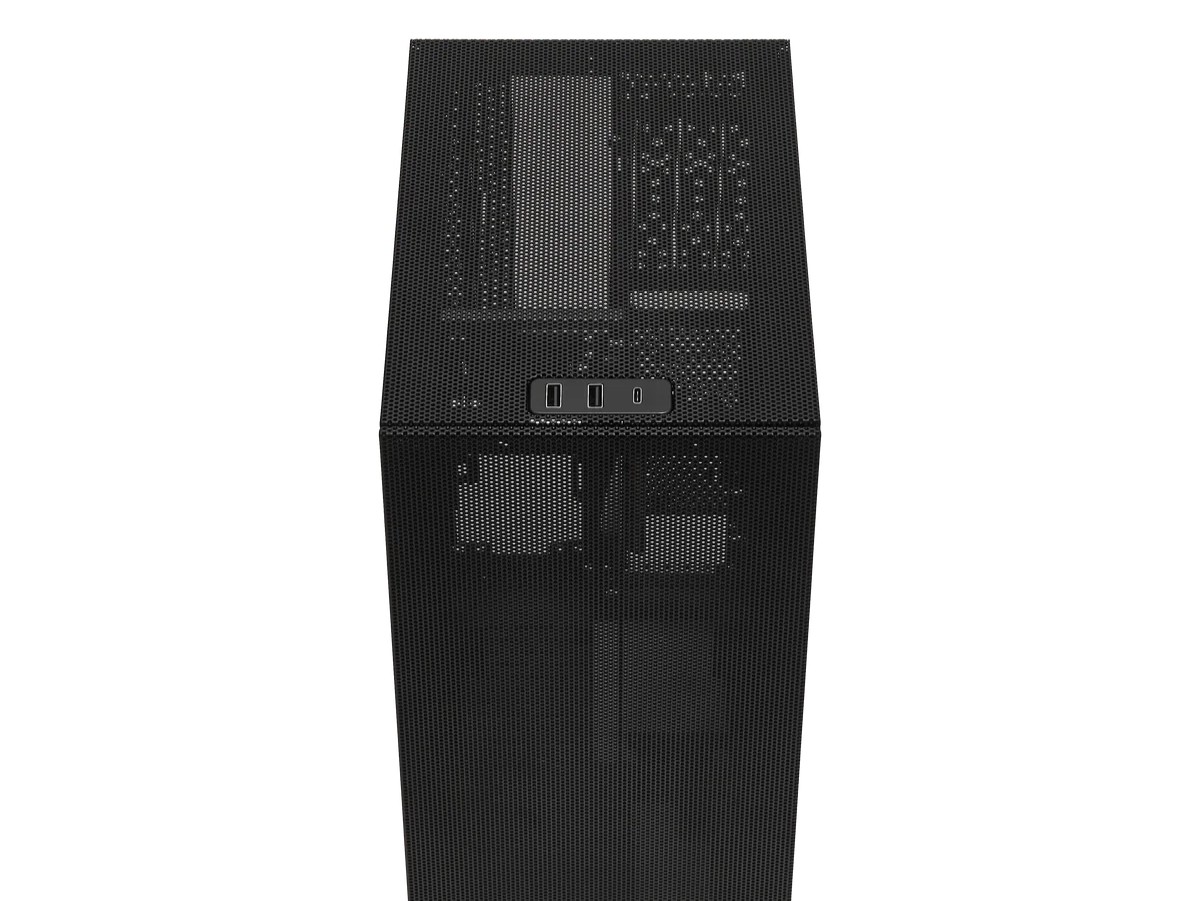

| CASE REVISIONS | V2: Top panel has been reinforced and power button has been relocated from rear of the case to the top of case where USB I/O is. |
MESHROOM
EXPANSION BRACKET

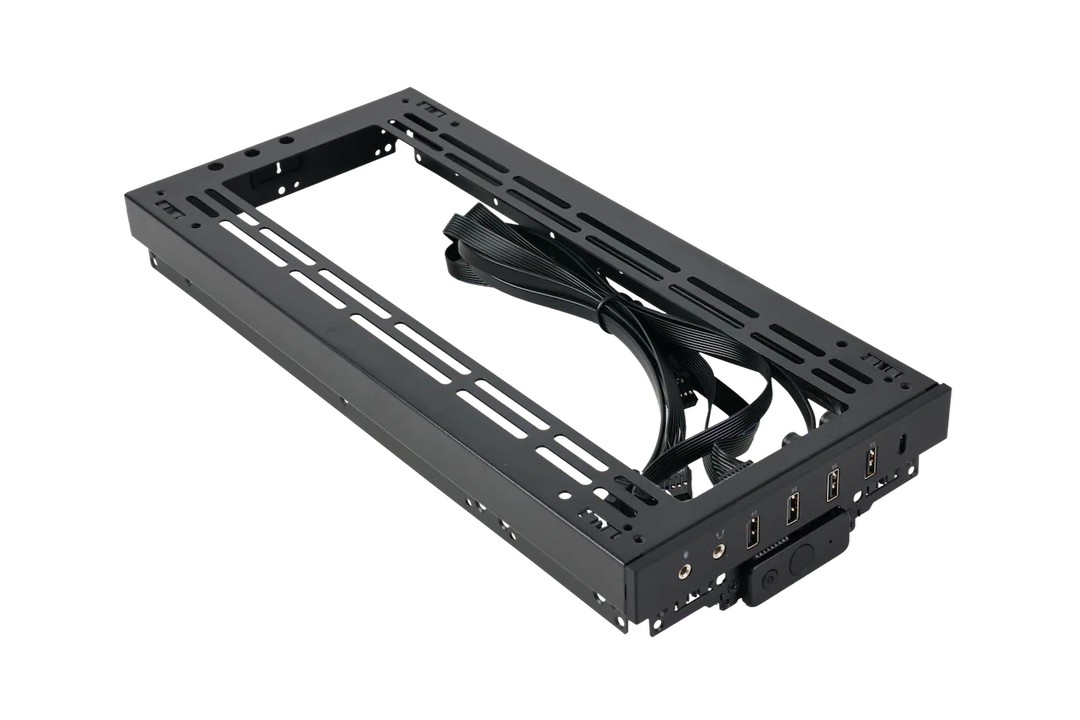

SSUPD extender bracket is only compatible with Meshroom D and Meshroom S v2. The expansion bracket adds approximately 25mm to front of the Meshroom S; increasing case volume to 16.44L; improving motherboard, cooling and/or GPU compatibility.
BUILD #1

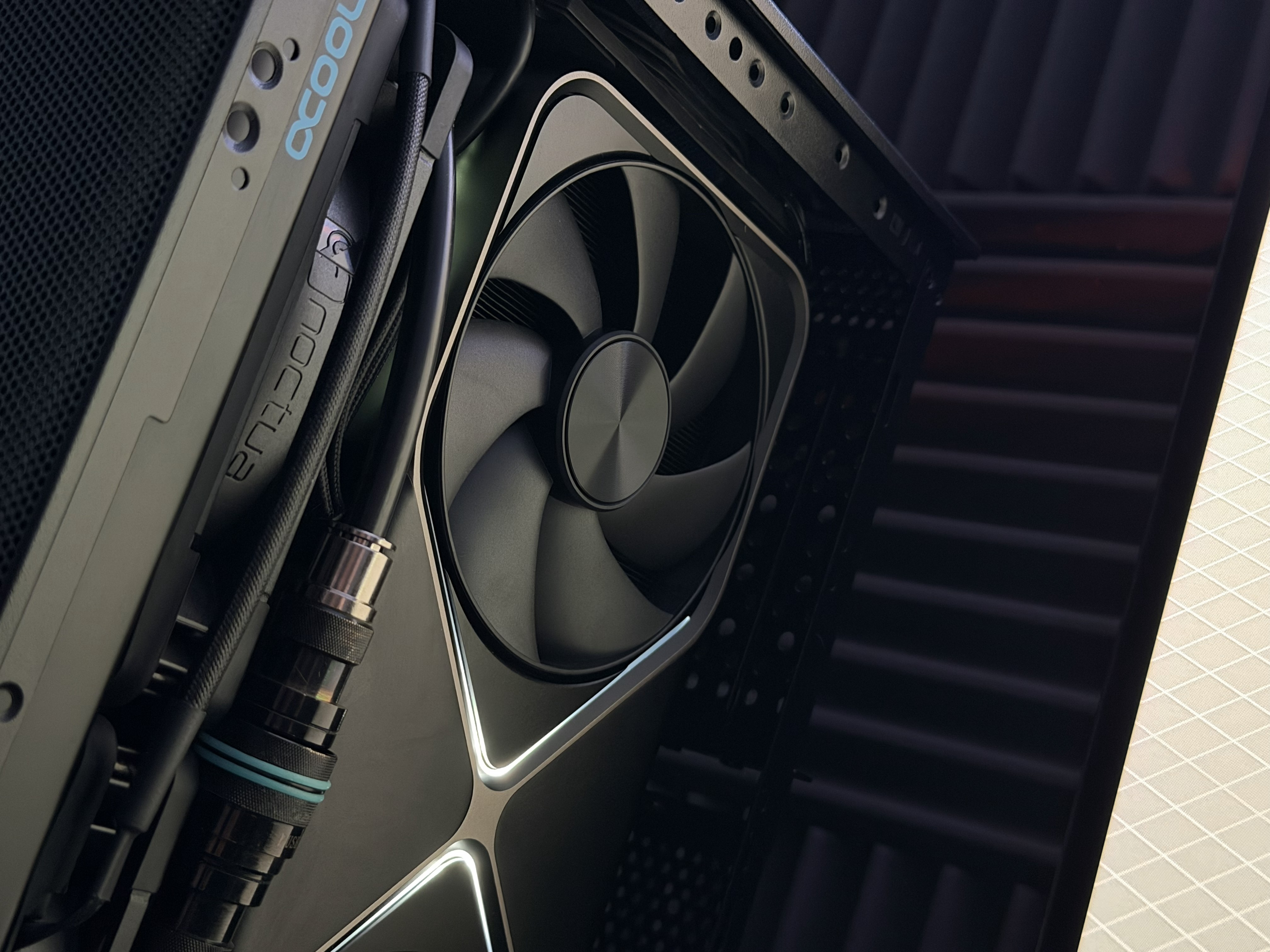

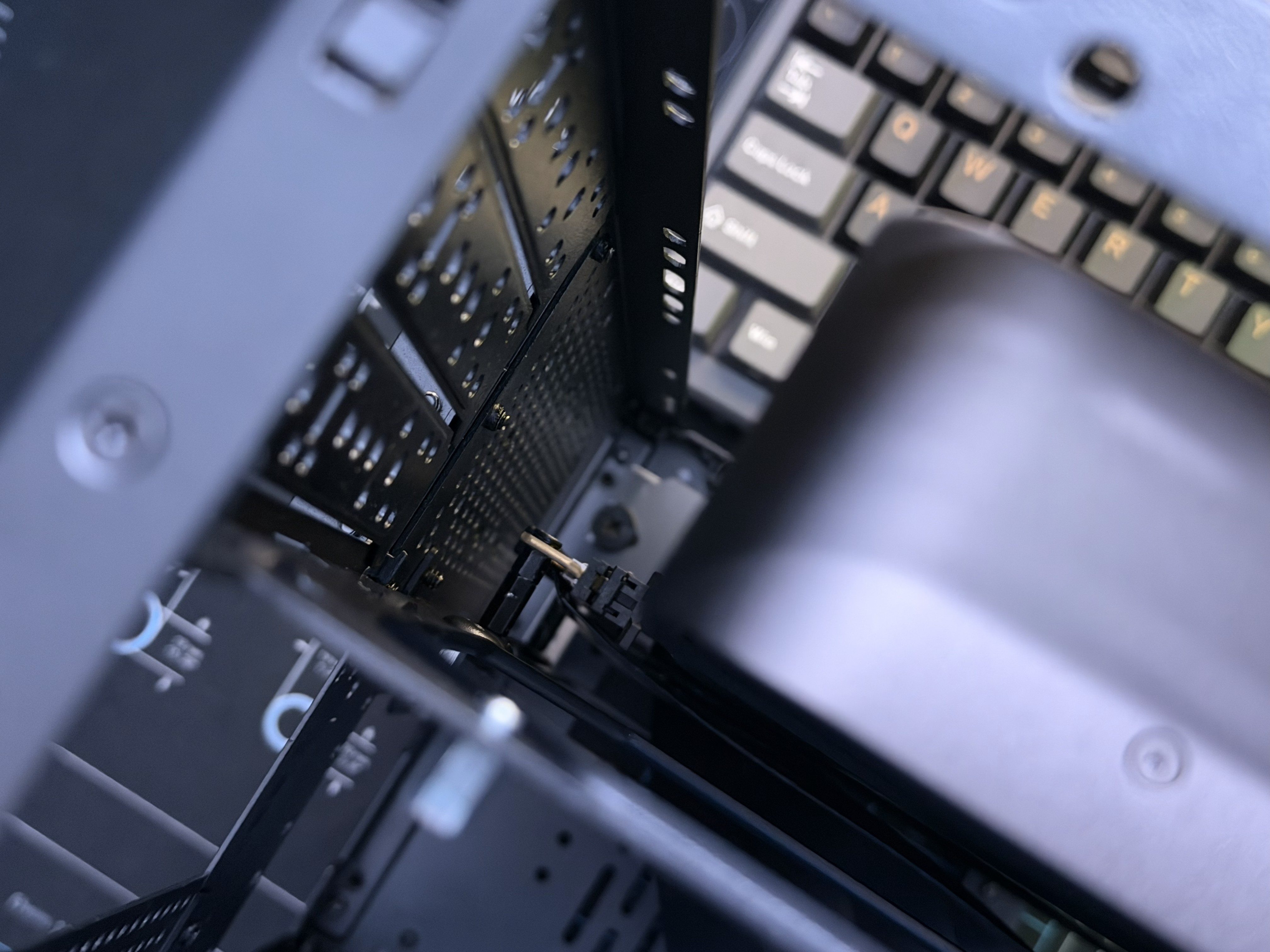

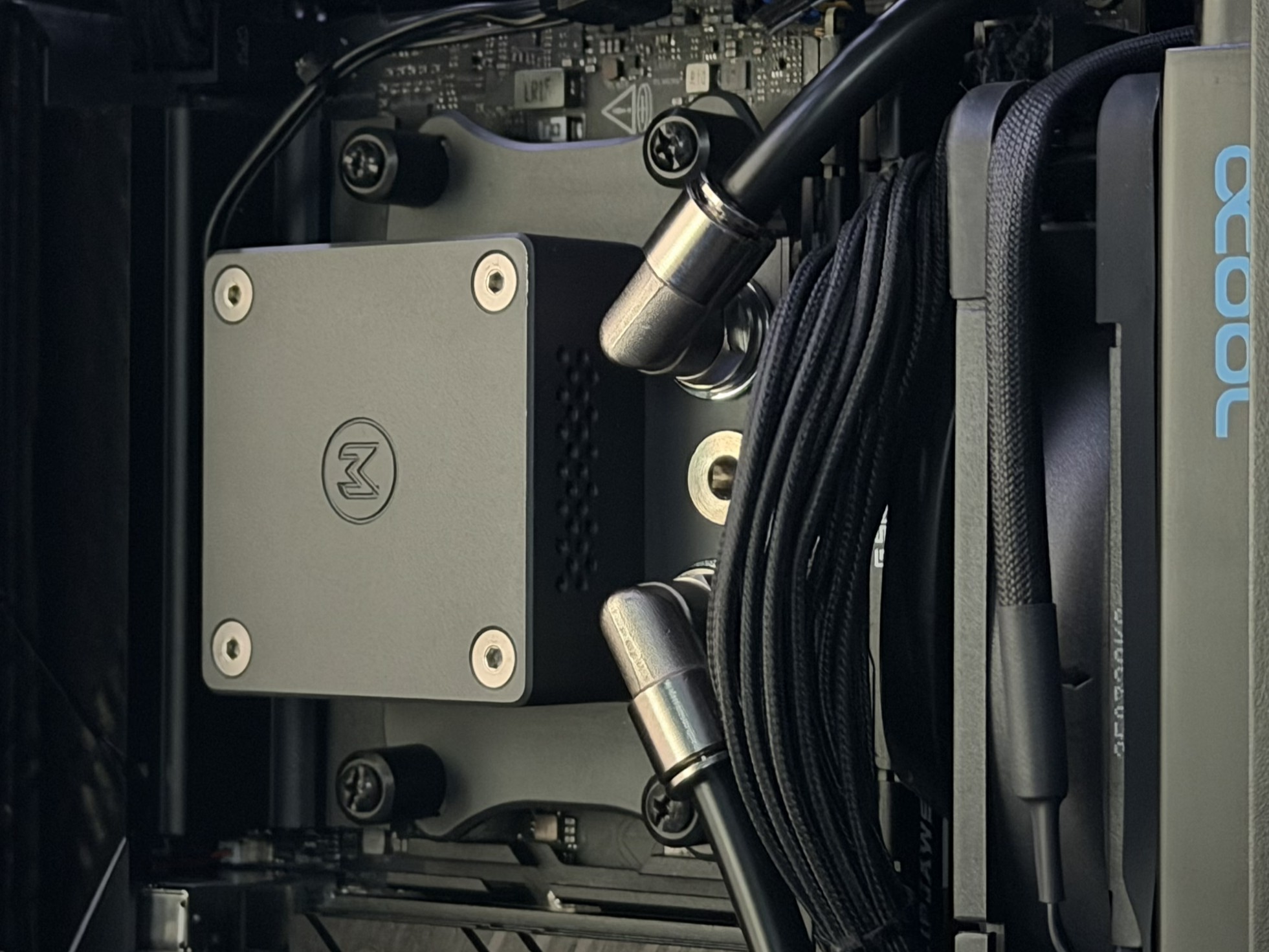

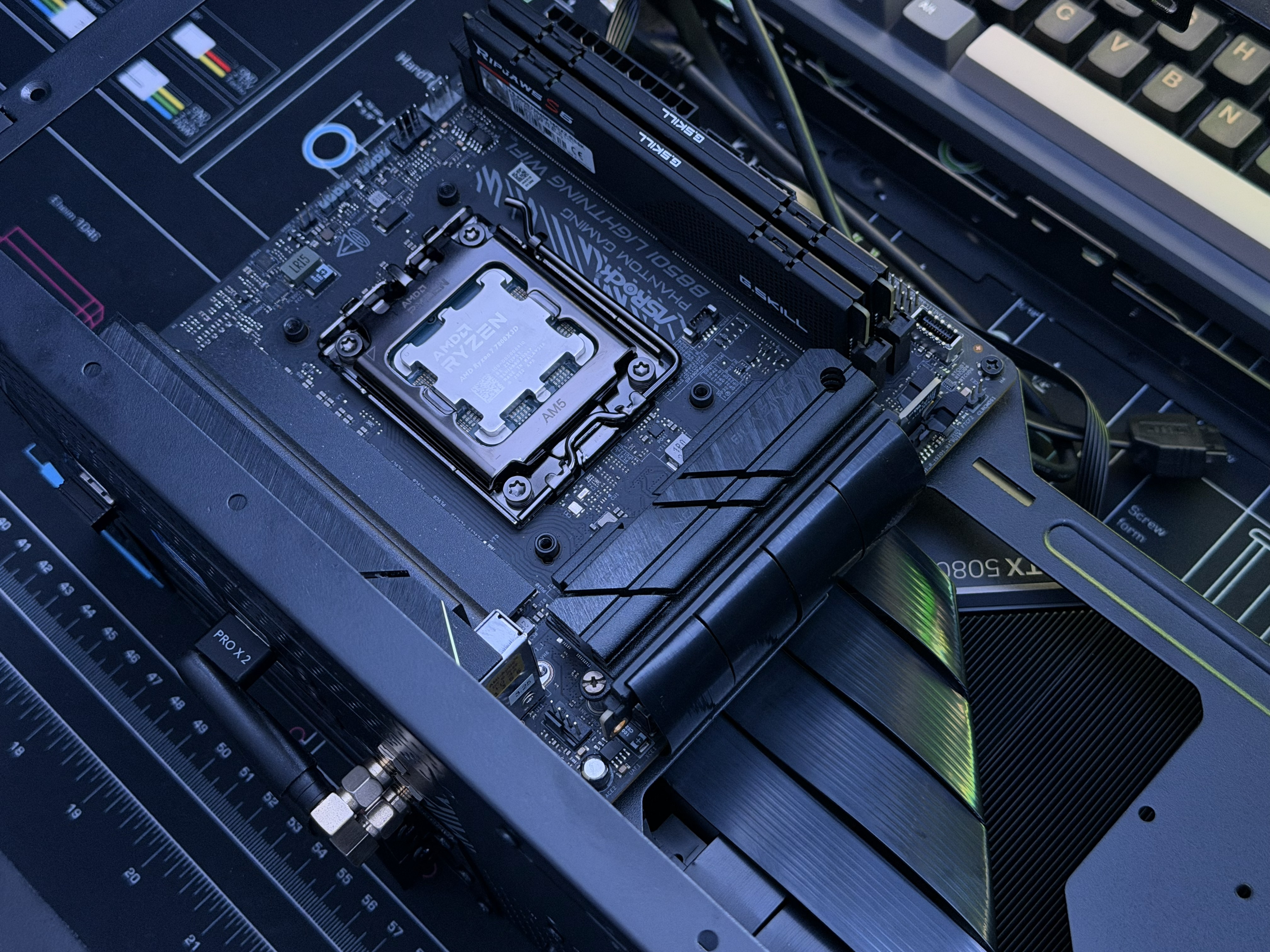

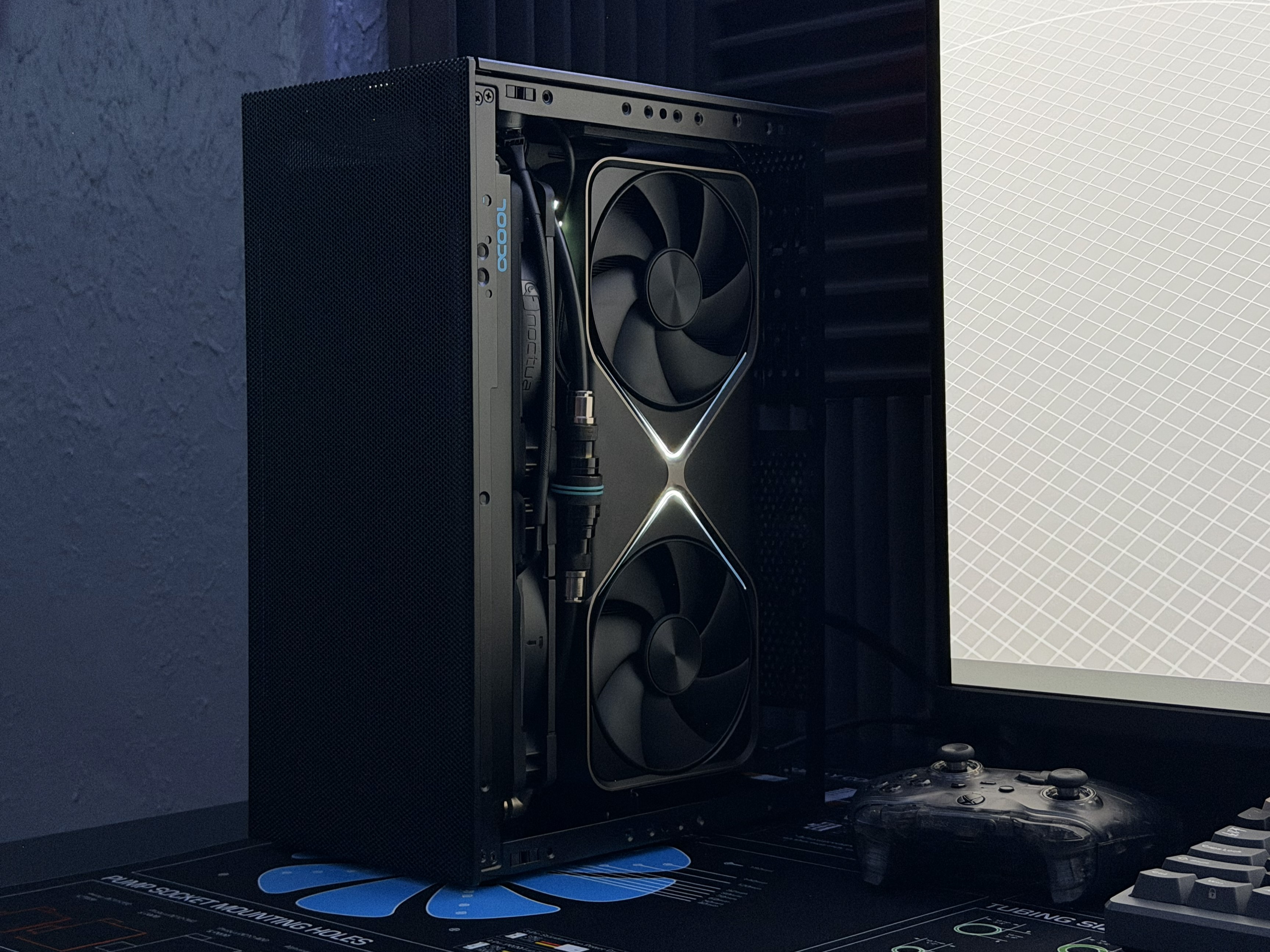

Meshroom S v2 in 3 slot mode, with offset RTX 5080 FE & 280mm CPU only custom liquid cooling. This build uses pneumatic fittings reduce bulk and quick disconnect fittings to fill the loop via external pump.
MOTHERBOARD
ASRock B850I Lighting
PAID LINK
CPU
Ryzen 7 7800X3D
PAID LINK
GPU
RTX 5080 FE
PAID LINK
RAM
32GB Gskill S5 DDR5, 6000MHz, CL30
PAID LINK
COOLER
Modultra LOBO
MODULTRA STORE
PSU
Corsair SF1000 2024
PAID LINK
STORAGE
1TB + 2TB NVME
PAID LINK
RADIATOR
Alphacool NexXxoS ST30 280
PAID LINK
RADIATOR FANS
2x NF-A14 G2 Chromax
PAID LINK
CASE FANS
SilverStone Air Slimmer 120
PAID LINK
BUILD #2

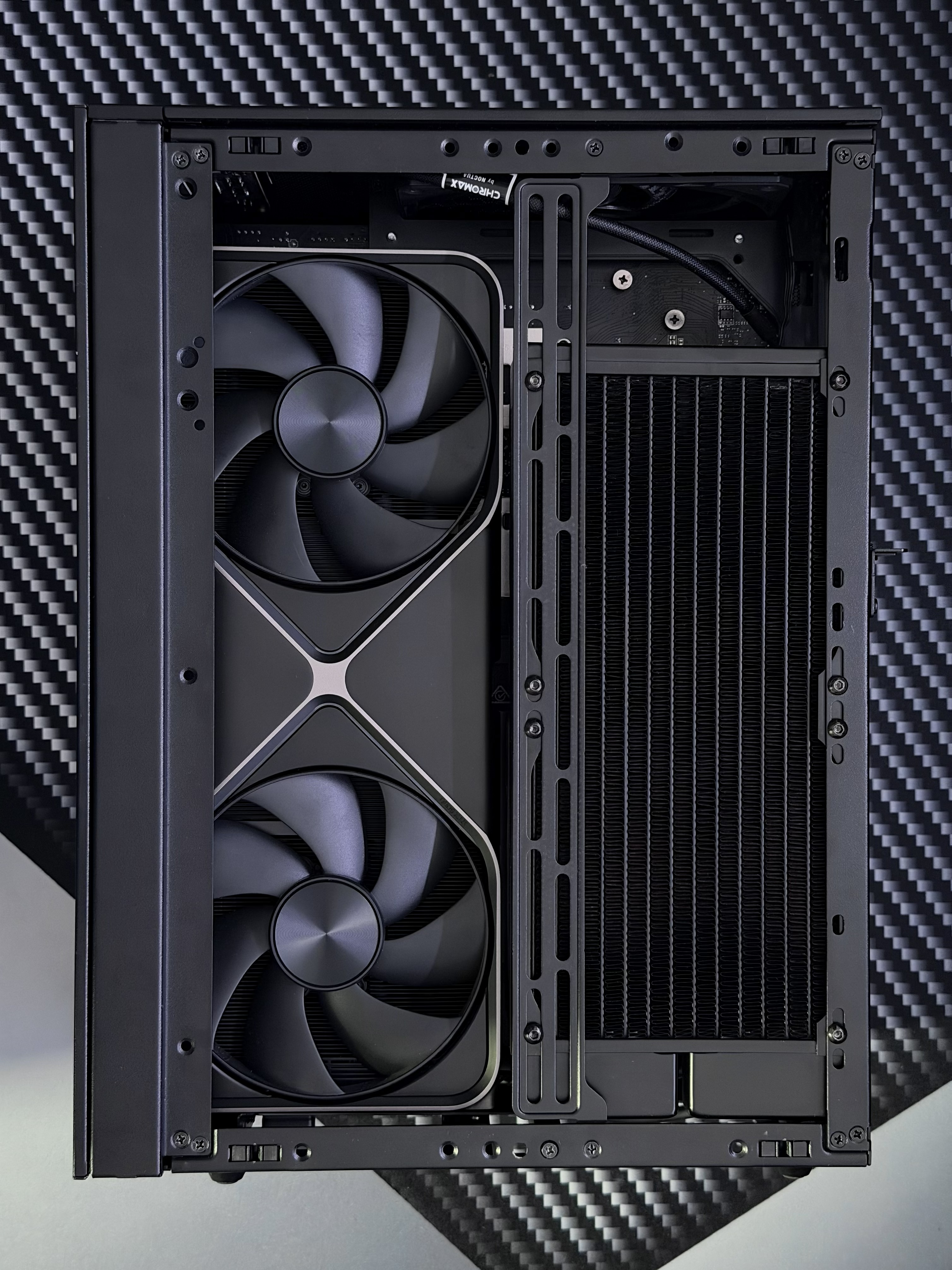

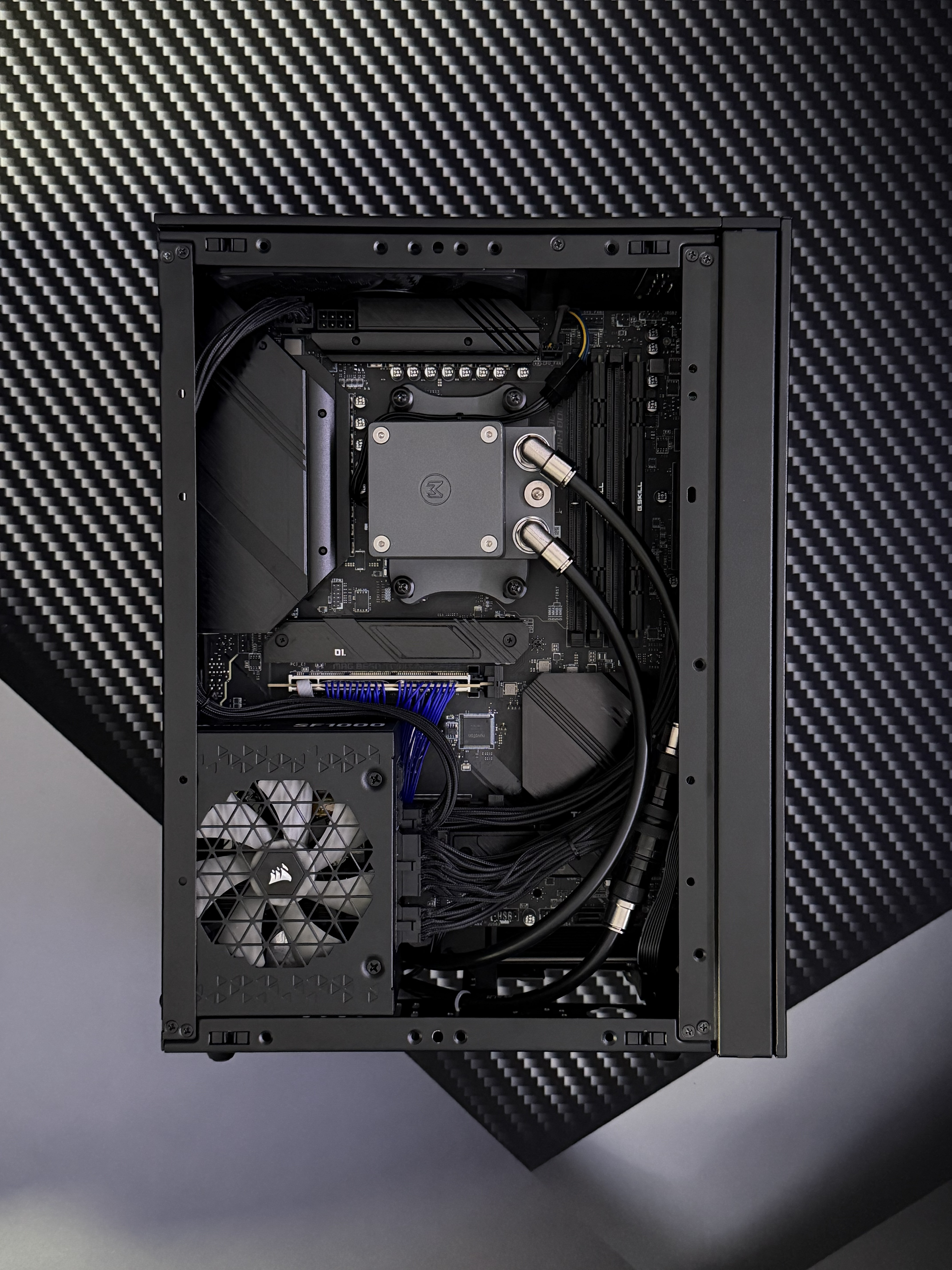

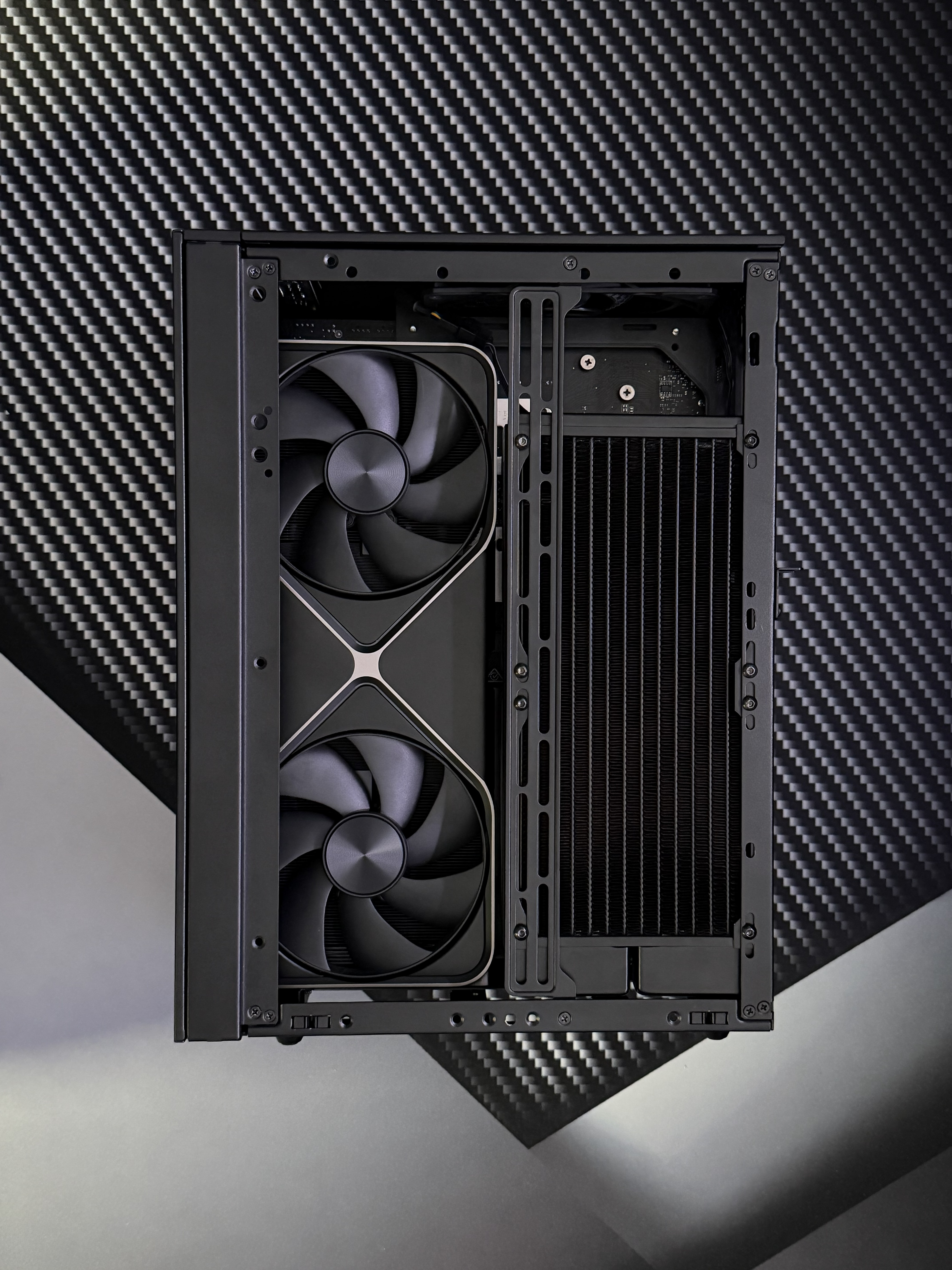

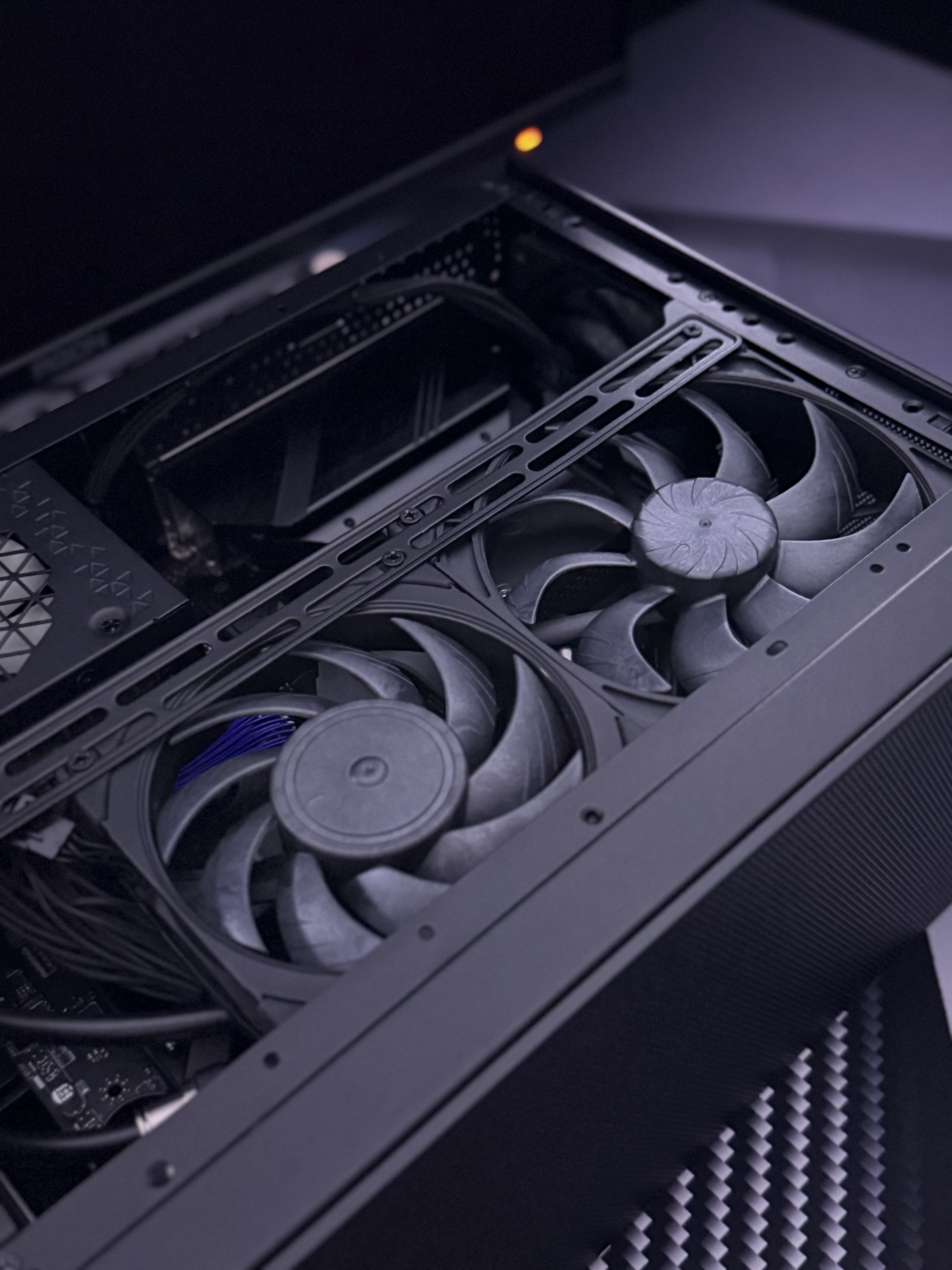

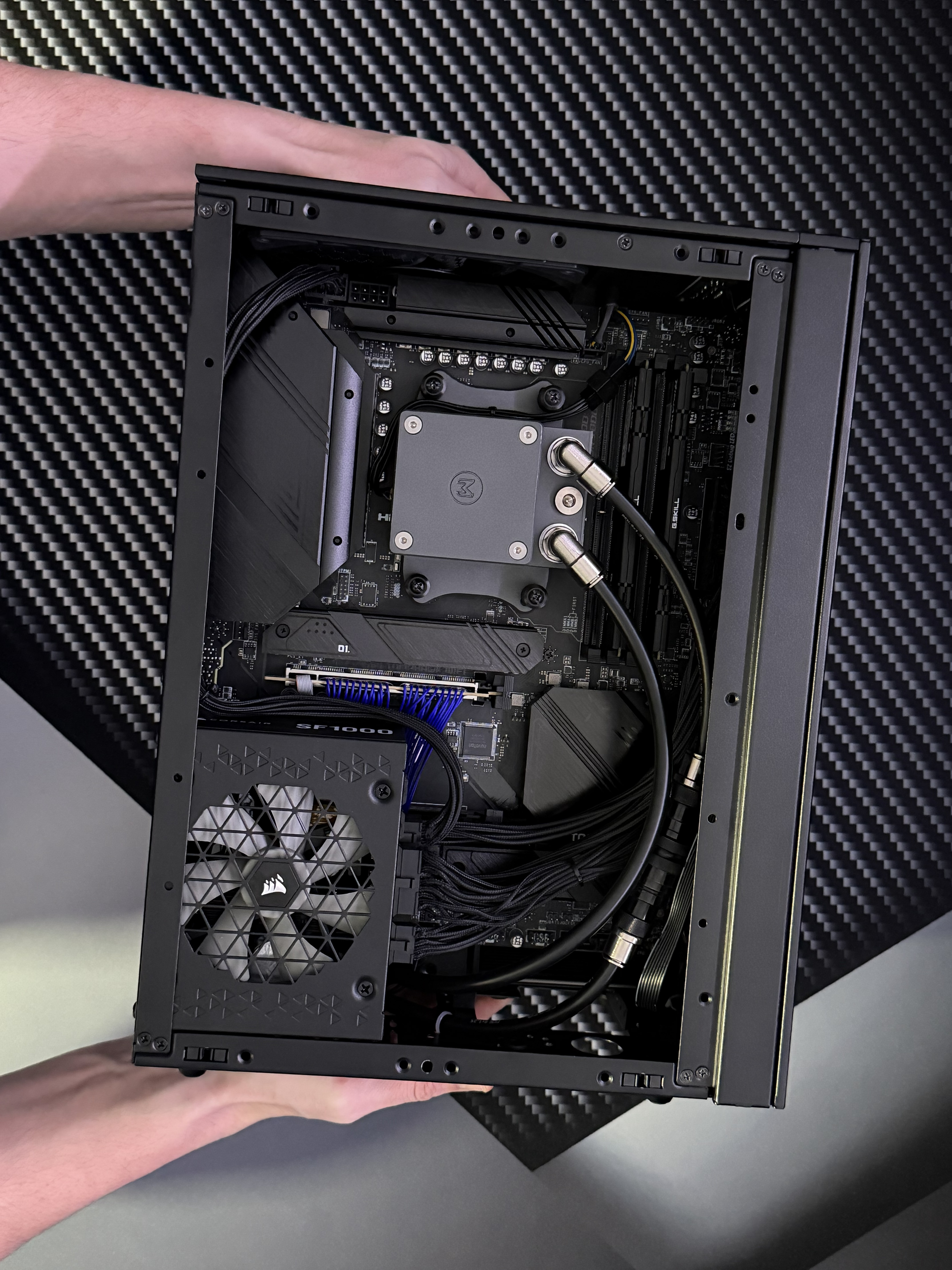

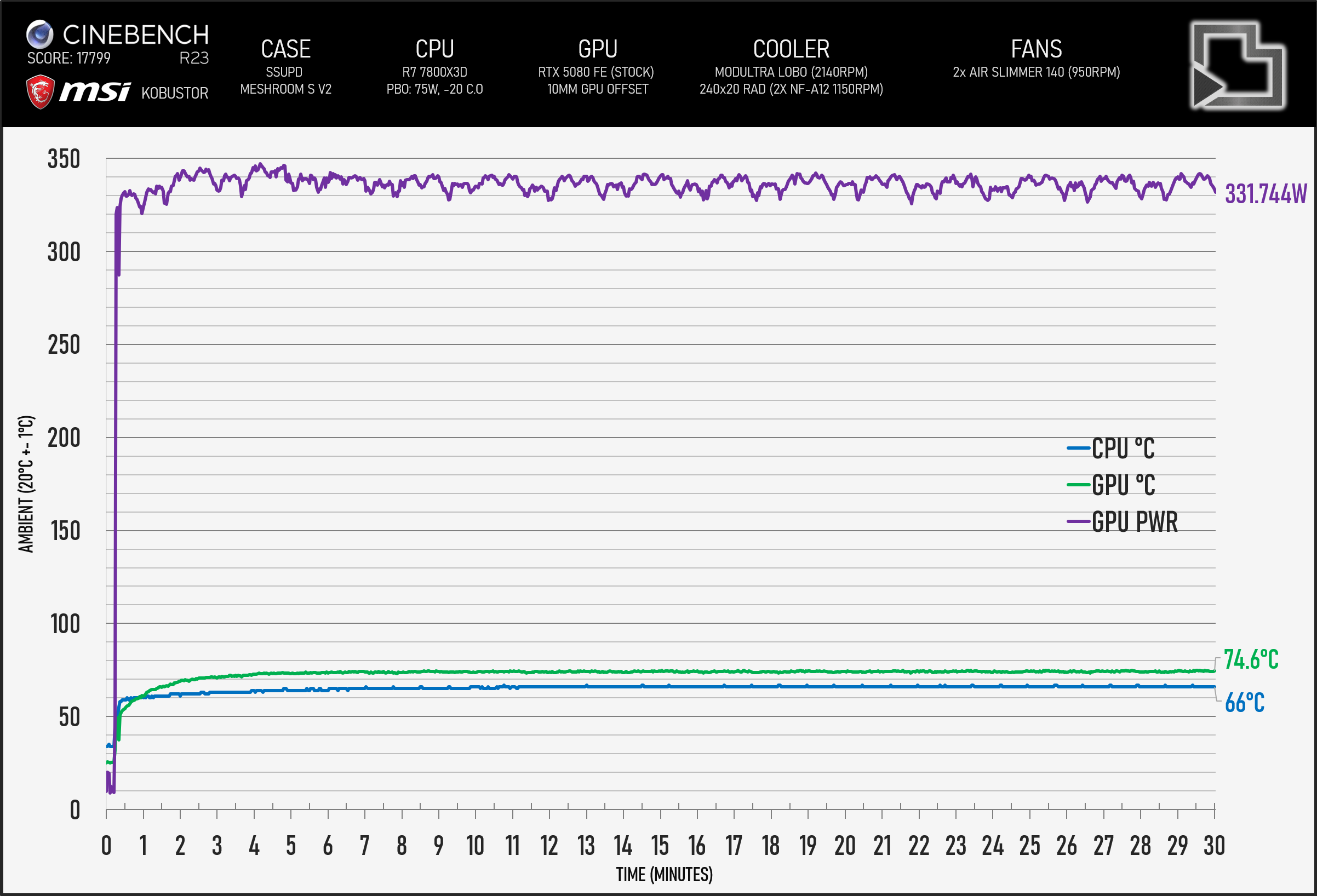

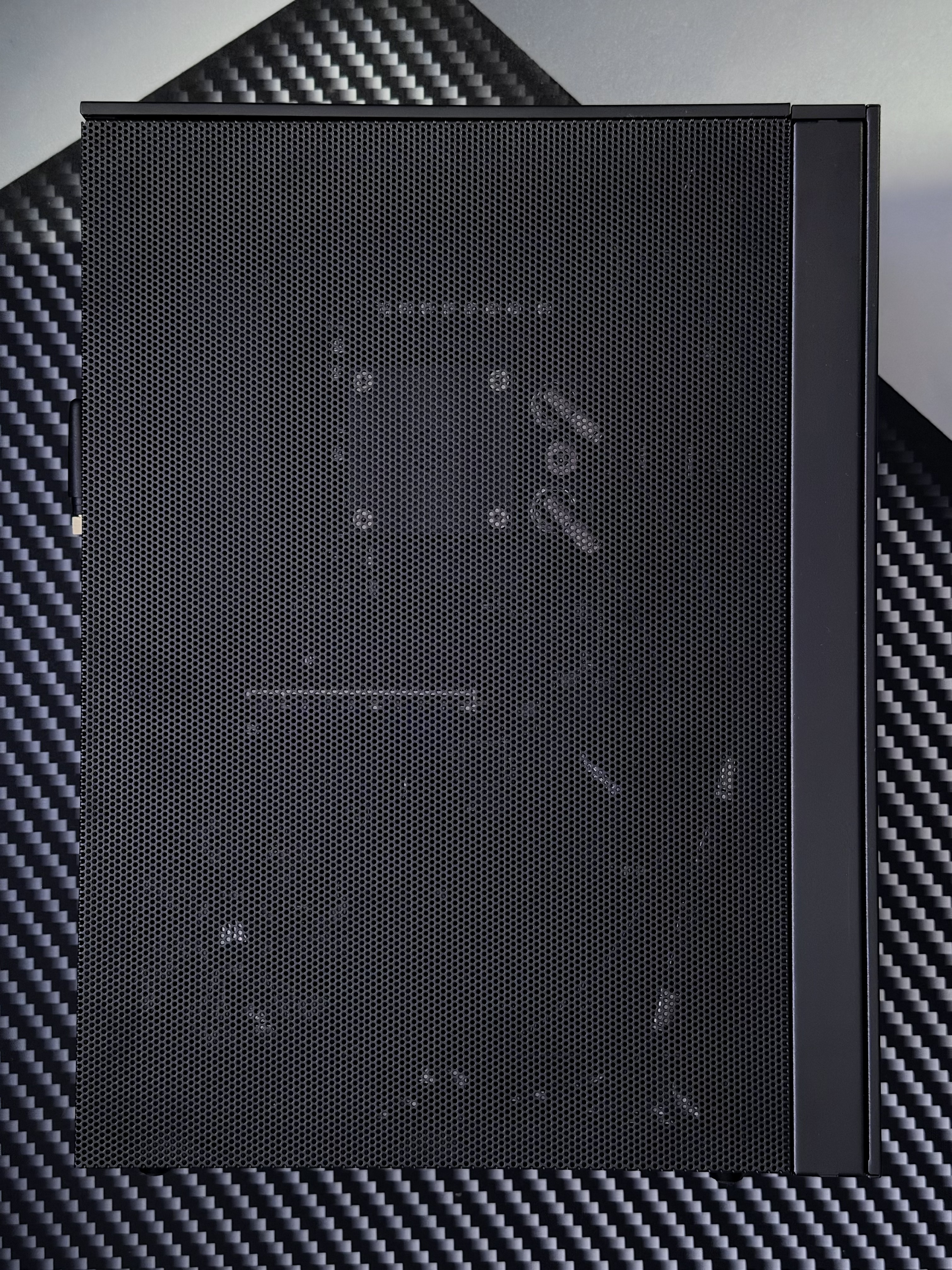

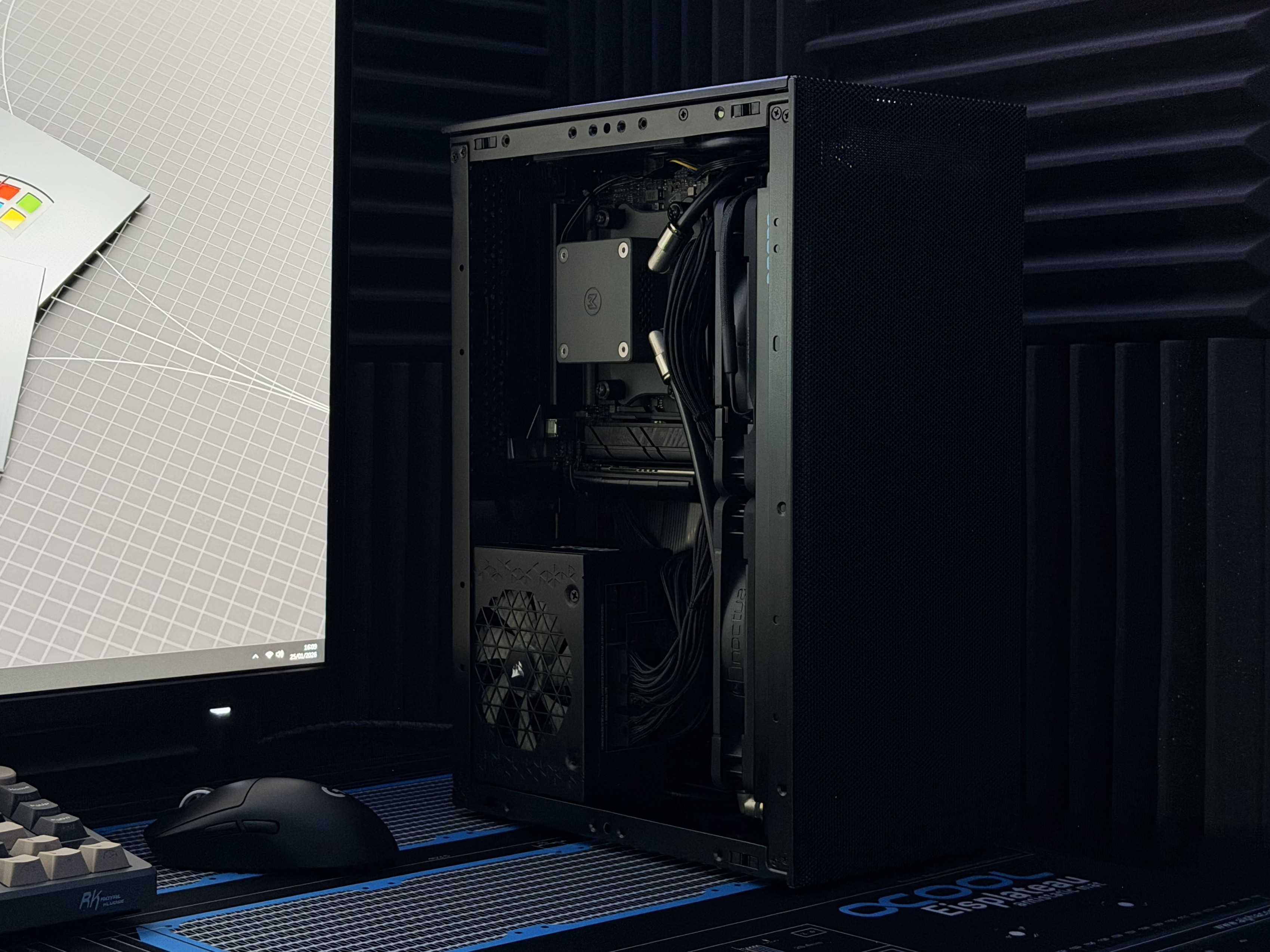

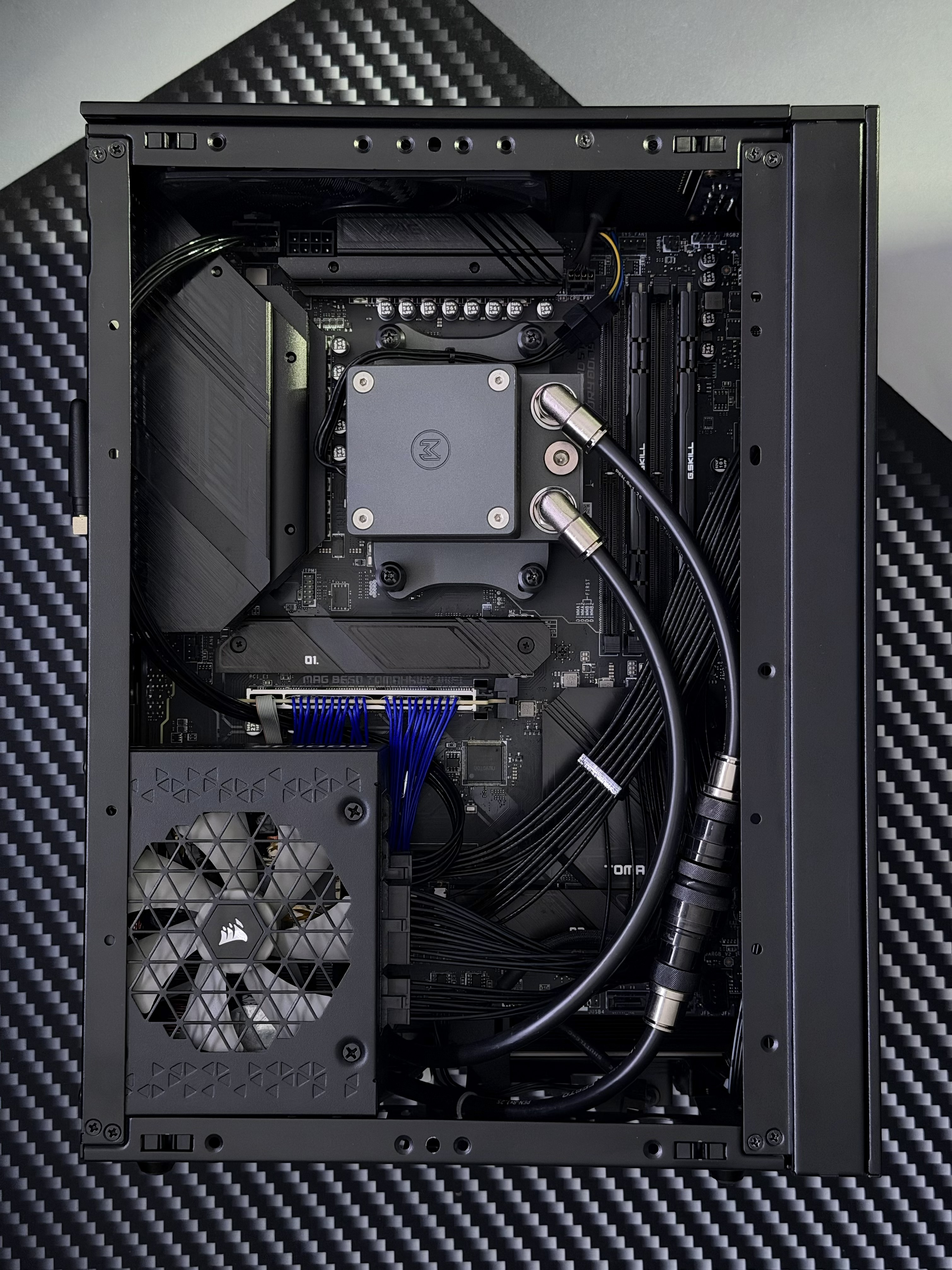

16.5L ATX Build in Meshroom S v2 with SSUPD Expansion Bracket
MOTHERBOARD
MSI B650 Tomahawk
PAID LINK
CPU
Ryzen 7 7800X3D
PAID LINK
GPU
RTX 5080 FE
PAID LINK
RAM
32GB Gskill S5 DDR5, 6000MHz, CL30
PAID LINK
COOLER
Modultra LOBO
MODULTRA STORE
PSU
Corsair SF1000 2024 (custom cables)
PAID LINK
STORAGE
1TB + 2TB NVME
PAID LINK
RADIATOR
Alphacool NexXxoS ST20 240
PAID LINK
RADIATOR FANS
2x NF-A12 Chromax
PAID LINK
CASE FANS
2x SilverStone Air Slimmer 140's
PAID LINK
