// Community Build

Fractal Terra (4080S, 7800X3D)

10.39L · SANDWICH · MAX GPU MODE
By L91 May 27, 2024 Fractal Design Terra
View Case DB View Case in 3D All Builds
Case Fractal Design Terra
Colour Silver
Layout / Mode max_gpu_mode
Observed Fitment Modification Required
Submitted Configuration

Hardware

7 installed
Motherboard
Asus ROG STRIX B650E-I GAMING WIFI [ITX] (AM5) ITX
Memory (RAM)
G.Skill Flare X5
Graphics Card
Nvidia RTX 4080 SUPER 16GB GDDR6X Founders Edition (304x61mm)
Processor
AMD 7800X3D (AM5)
CPU Cooler
Thermalright AXP90-X53 FULL BLACK (53mm)
AIO / Radiators
None
Case Fans Manual
1x Noctua NF-A12 Chromax.black
Power Supply
Silverstone Extreme 850R Platinum (850W)
Real-World Evidence

Fitment

Builder supplied
Observed Outcome Modification Required
Affected Areas
GPU / Side Panel

Reported from this completed Build. Community evidence is advisory and does not replace published component or case specifications.

From the User

Build Notes

First-hand notes

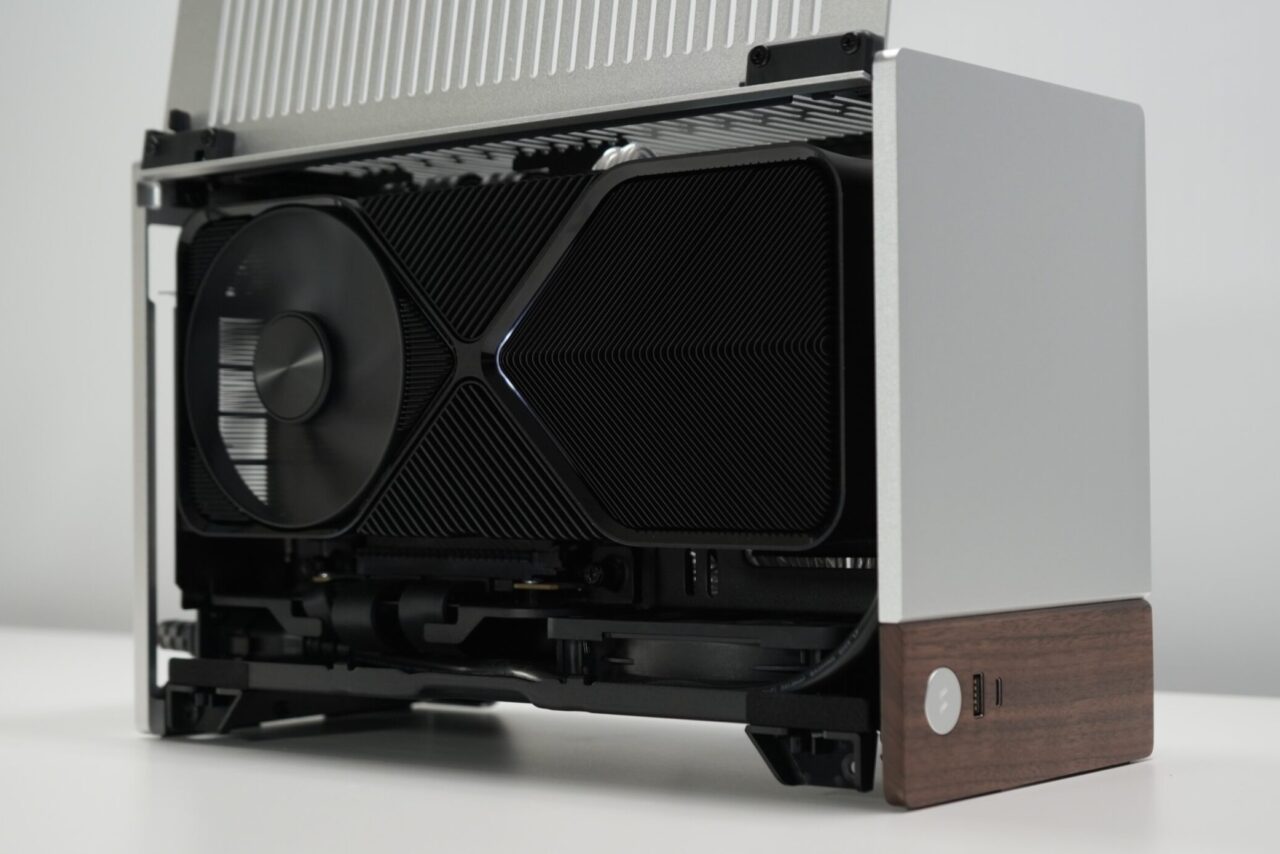

This RTX 4080S FE + 7800X3D system uses custom 3D printed rear GPU side; side panel retention bracket due to the include one causing interferes with taller graphics cards. The Fractal Terra spine was set to position 4. You can also fit slim 120mm case fan under the motherboard tray, but I didn't notice any real thermal improvement during testing.
