The FormD T1 is a modular Mini-ITX case under 10L in volume. FormD T1 comes in two variants, reference and sandwich kit. Case pricing starts at US$195 for sandwich kit and is available in multiple colours. The T1 is widely considered one of the best small for factor PC case for both versatility and compatibility, while still coming in at under just 10L in volume. The case provides satisfying build experience and multiple configurations, such as air cooling, AIO and custom liquid cooling.
This guide covers the original FormD T1 2.1 (designed by 3FC). If you are looking for the T1 2.5 from NCASE, note that while they may look identical from outside, the T1 2.5 uses different internal threading and structural bars and are not cross compatible.
SPECIFICATIONS
| MODEL | FormD T1 v2.1 (Sandwich Kit) |
| MATERIALS | 1.5~15mm CNC Aluminium (anodised) 1~2mm Steel (powder coated) |
| DIMENSIONS | 335×135×220mm (L×W×H) |
| VOLUME | 9.95 Litres |
| CASE I/O | Power Button, 1x USB 3.2 Type-C (USB-C cable sold separately) |
| MOTHERBOARD SUPPORT | Mini-ITX, Deep-ITX |
| CPU COOLER CLEARANCE | 48–93 mm depending on GPU slot configuration |
| GRAPHHICS CARD COMPATIBILITY | GPUs no more than 140×325mm, 3.25-Slots thick (graphics card thickness depends on CPU cooler clearance) |
| RISER CABLE | YES |
| LIQUID COOLING SUPPORT | 1x 120 / 240mm 2x 240mm or 240 & 280 (requires side radiator bracket, sold separately Compatibility notes: dual radiator setups require a single slot GPU waterblock. Due to this limitation and build complexity, dual radiator builds are not recommended for inexperienced users. |
| CASE FANS SUPPORTED | Side: 2x 120 / 140mm (based on components) |
| POWER SUPPLY COMPATIBILITY | SFX / SFX-L (SFX-L not recommended with liquid cooling, custom cables are a must) |
| 2.5 / 3.5” DRIVES SUPPORTED | NONE (no official mounting support) |
| COLOURS | Black, E-White, Titanium & Two-Tone |
| GPU slots | CPU cooler clearance |
|---|---|
| 1.00 | 93 mm |
| 1.25 | 88 mm |
| 1.50 | 83 mm |
| 1.75 | 78 mm |
| 2.00 | 73 mm |
| 2.25 | 68 mm |
| 2.50 | 63 mm |
| 2.75 | 58 mm |
| 3.00 | 53 mm |
| 3.25 | 48 mm |
UNBOXING

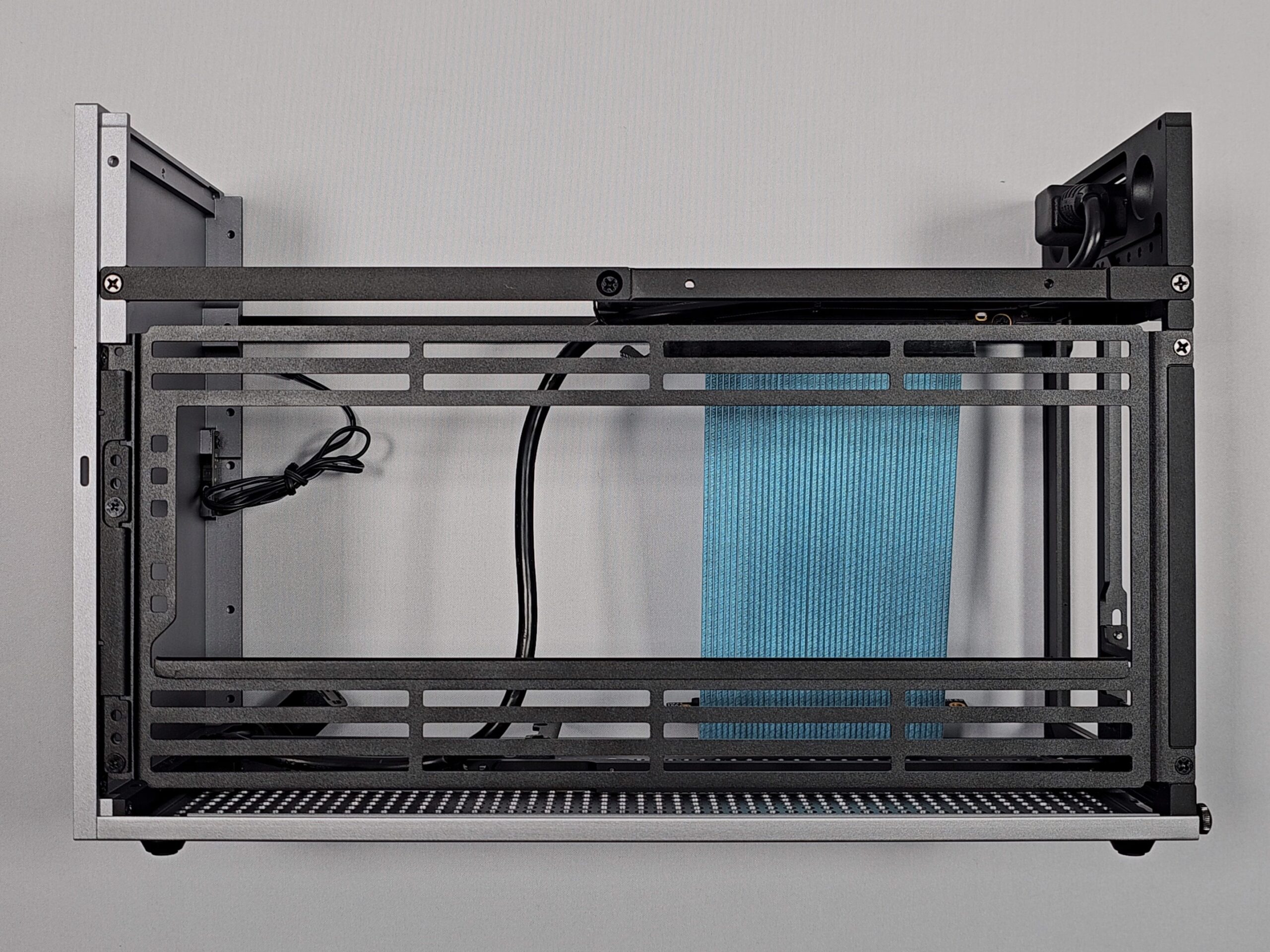

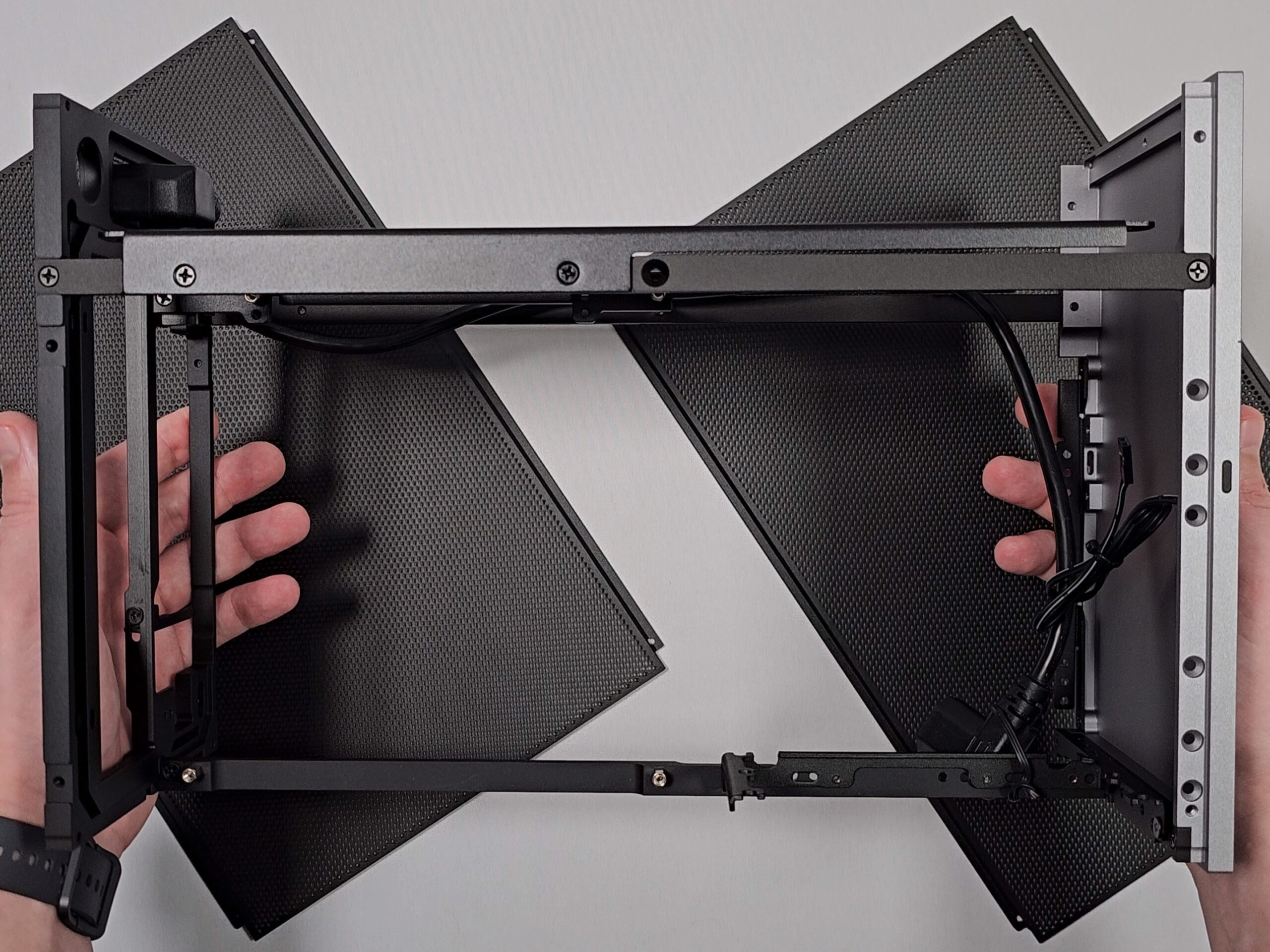

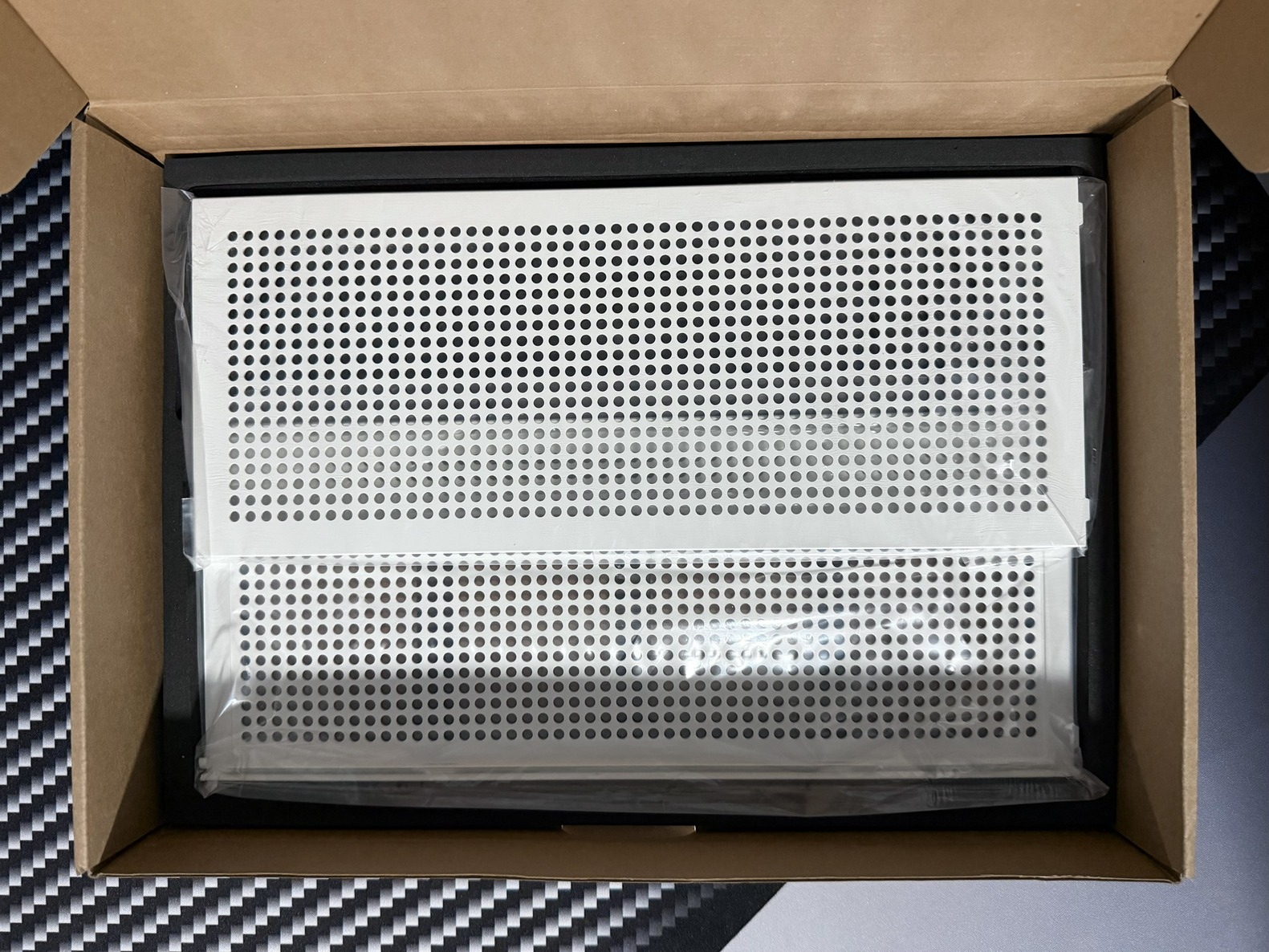

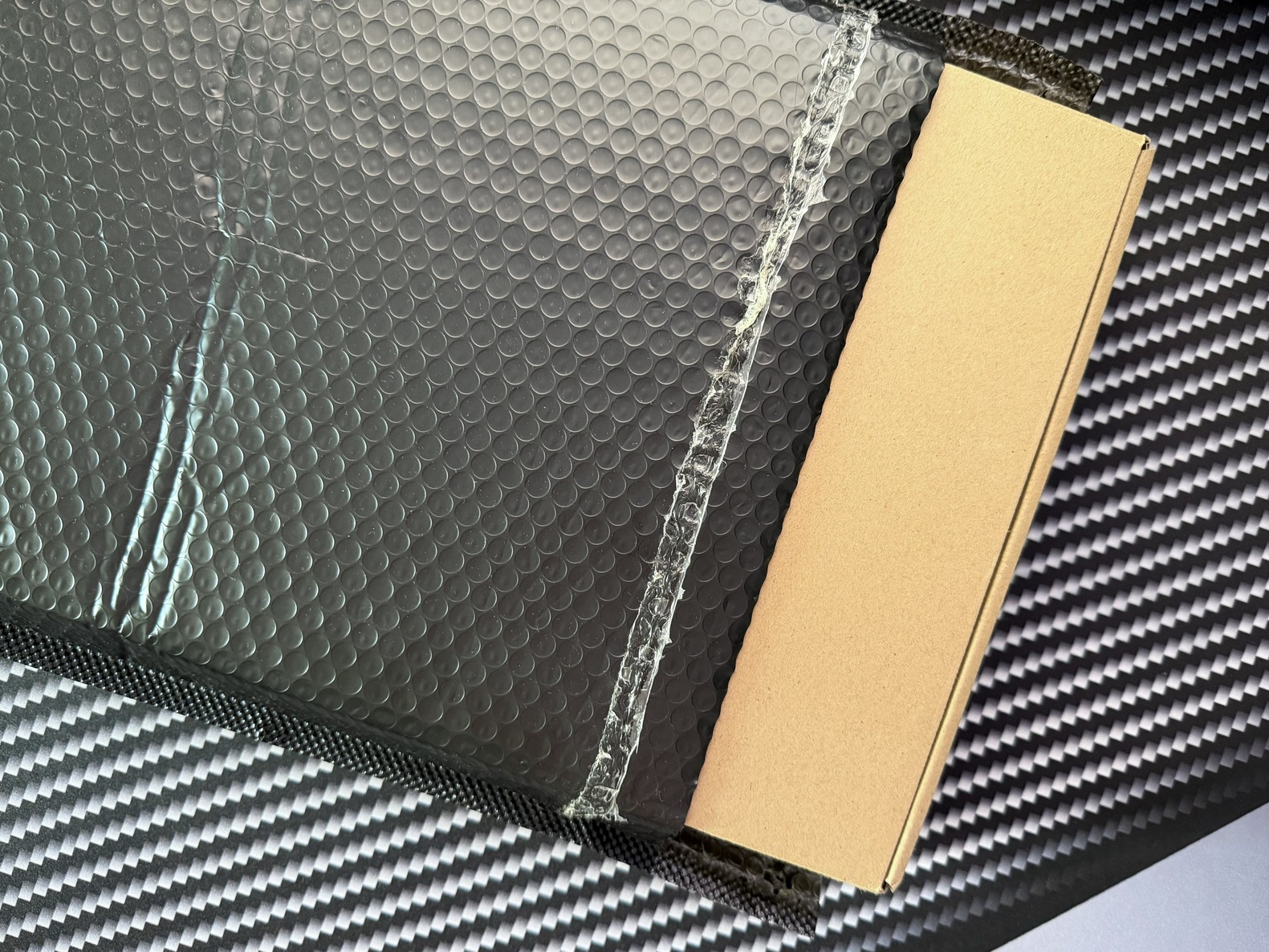

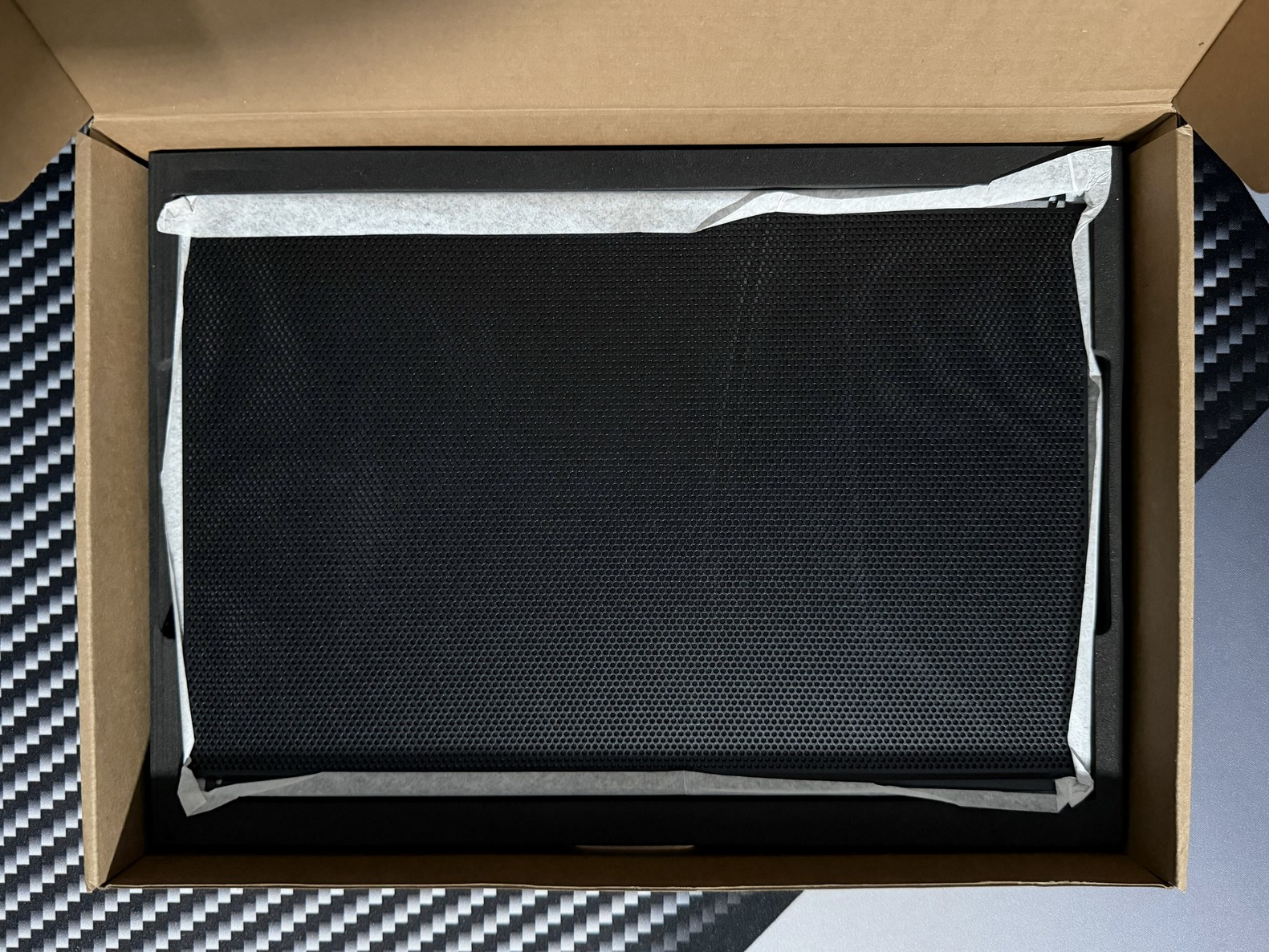

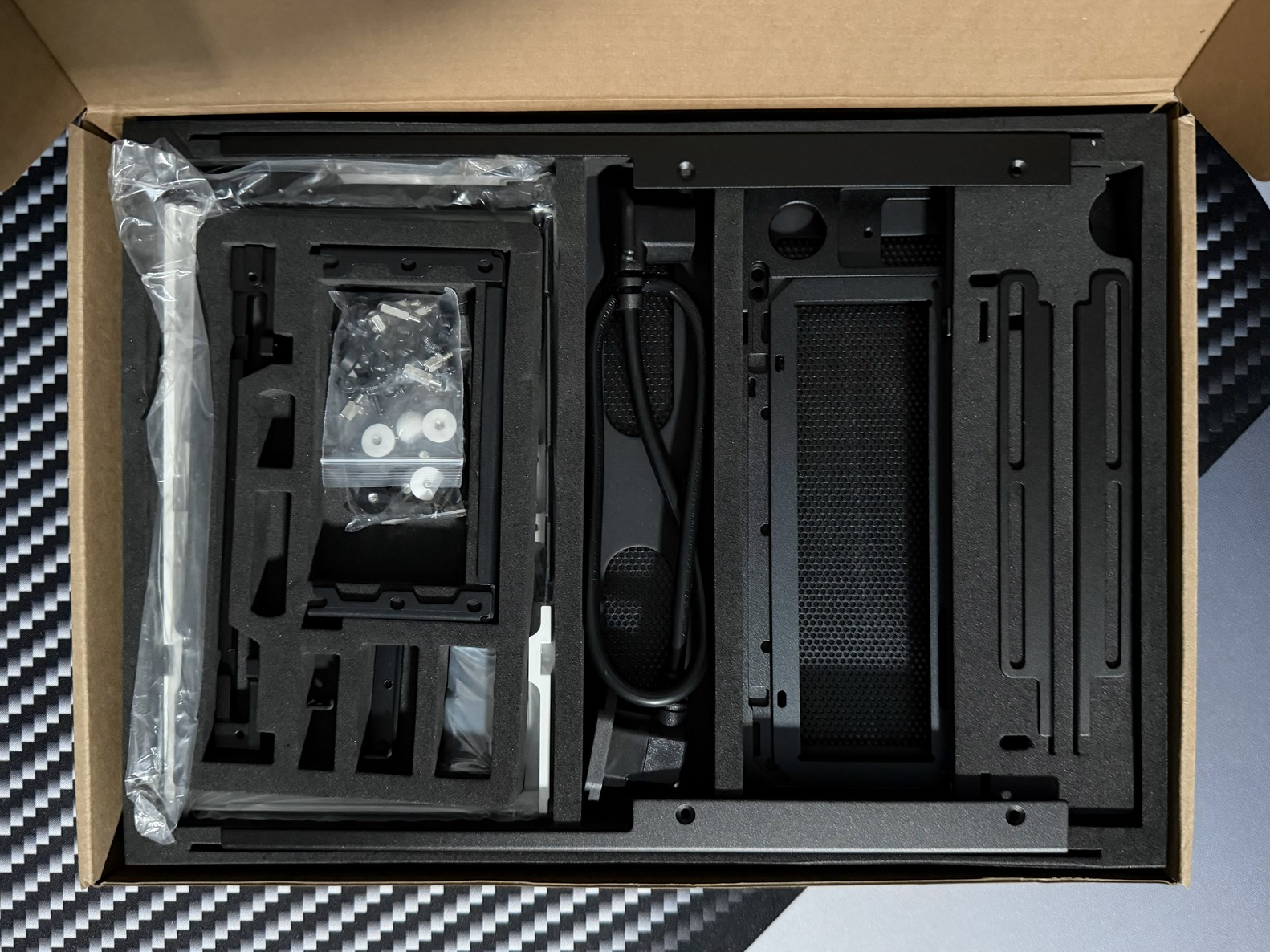

FormD T1 v2.1 comes flat-packed box inside padded black sleeve. The flat-packed box is structured in 3 separated compartments for different parts, such as front and rear of the case, side panels, top and bottom of the case. Most things are secured nicely with their own form inset locations preventing parts scratching each other or coming lose inside the box.

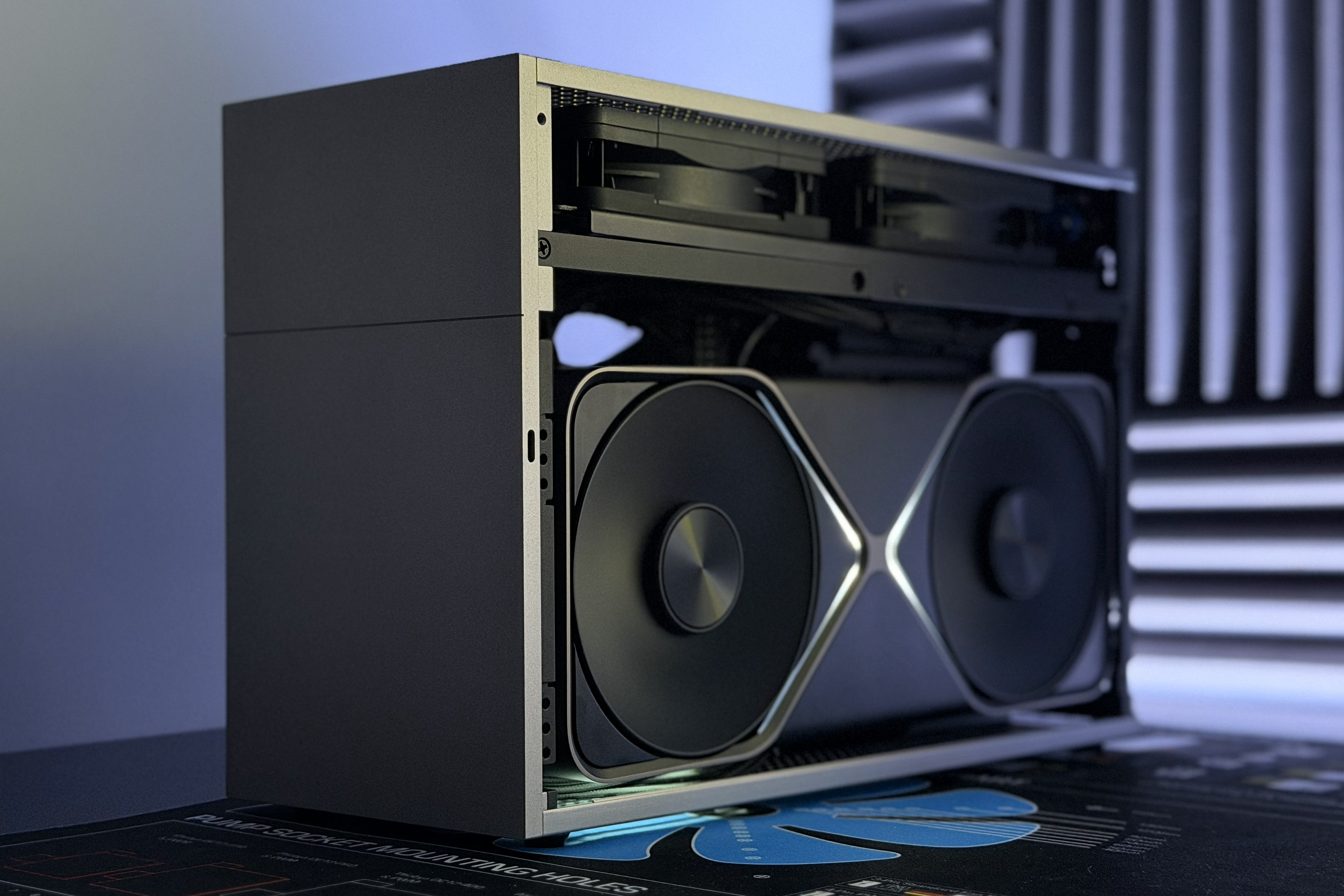

BUILD #1

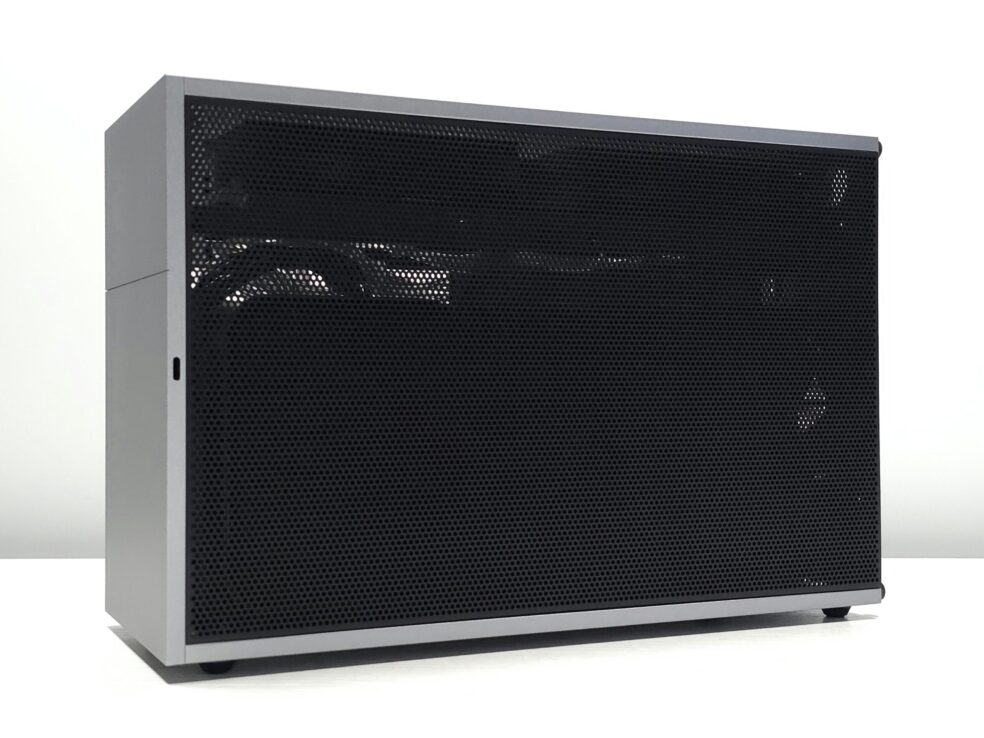

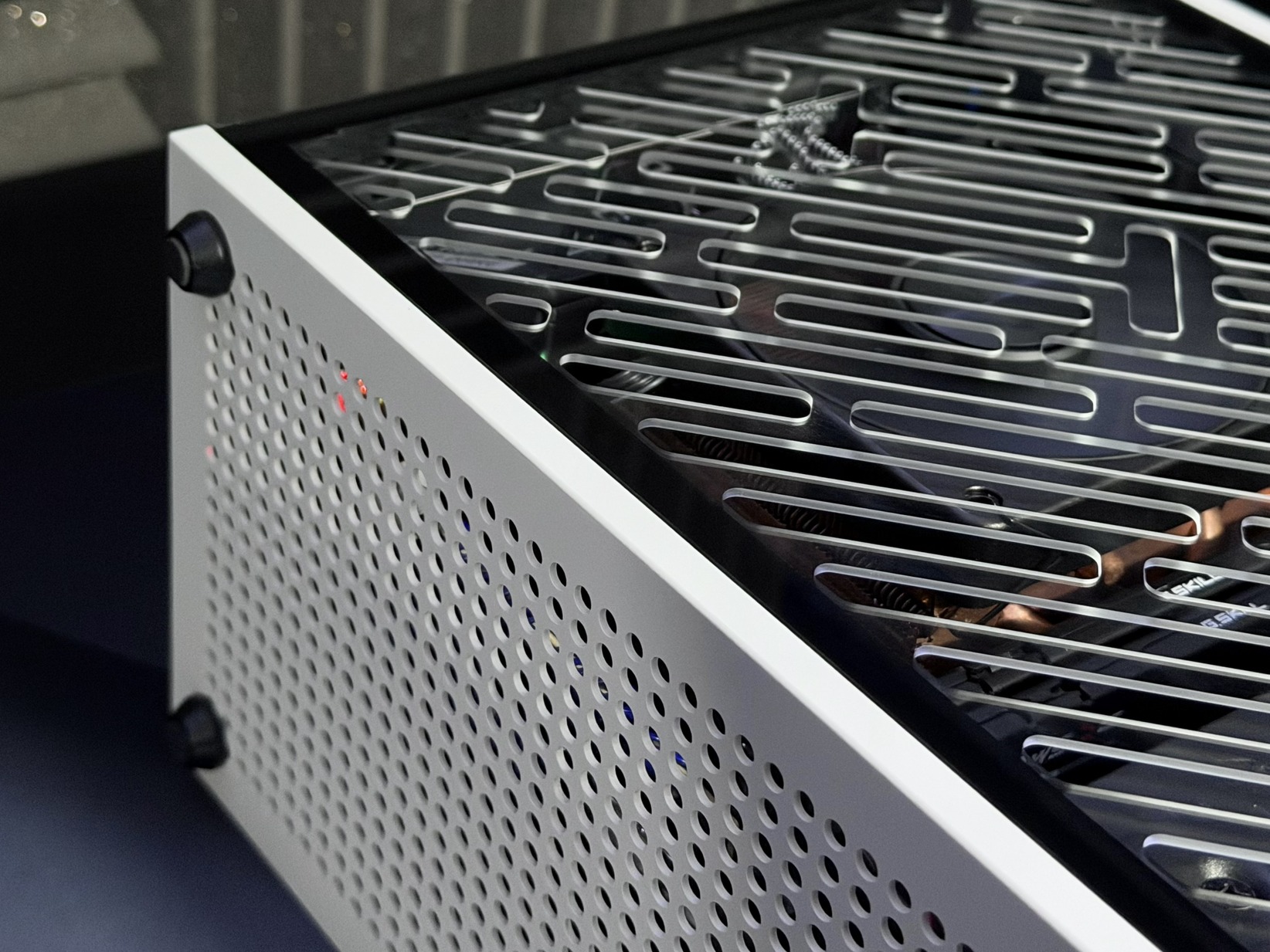

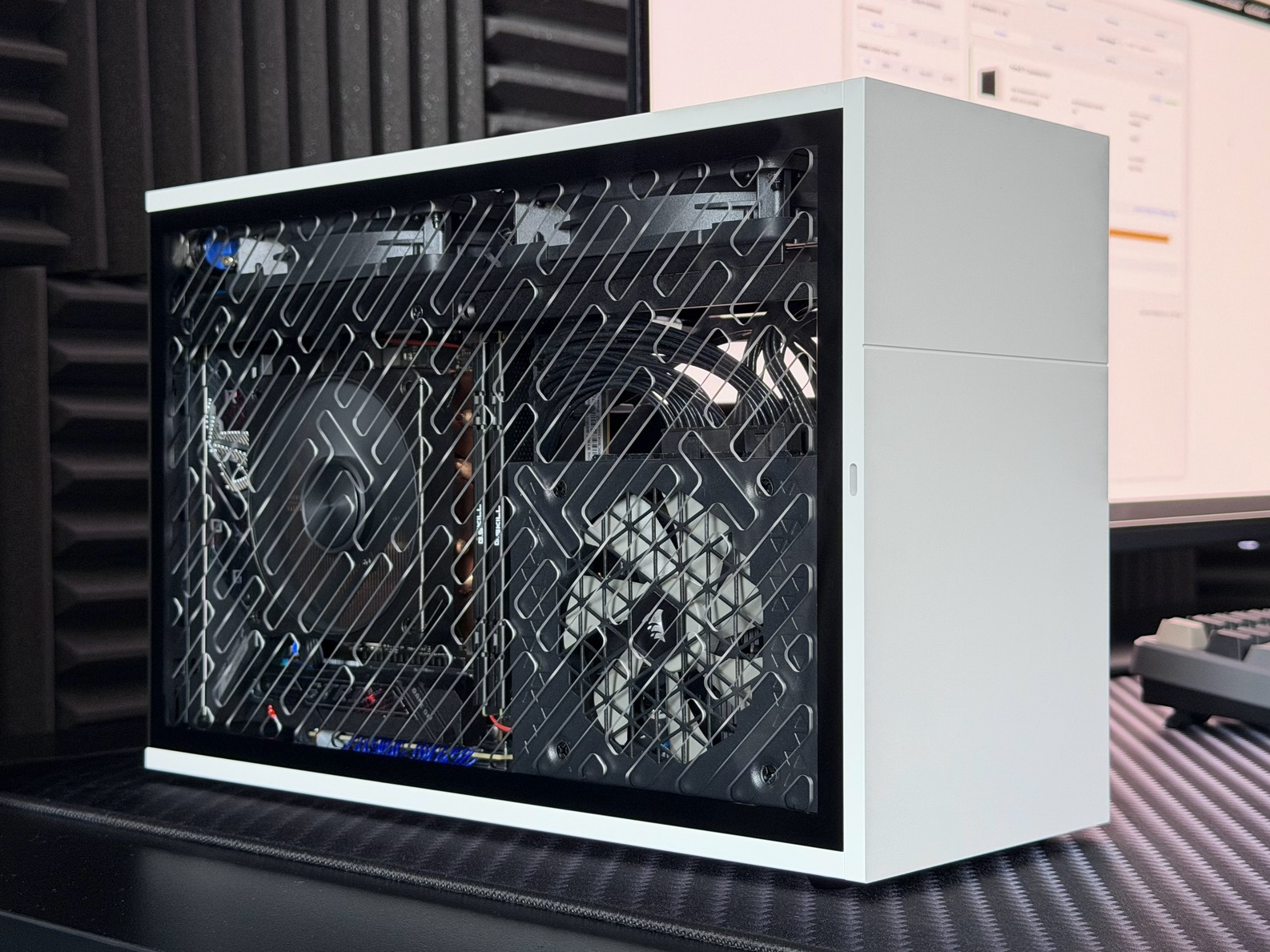

FormD T1 2.1 (E-White) build with vented glass side panel on CPU side. I found the vented glass to aesthetically fit well with E-White colour and did not experience any turbulence while using it with this setup.
MOTHERBOARD
ROG Strix B850-I Gaming WiFi
CPU
Ryzen 7 7800X3D
GPU
RTX 5080 Founders Edition
RAM
32GB Gskill S5 DDR5 (2x 16GB), 6000MHz, CL30
COOLER
AXP90 X47 FC + 4070 CNC Fan
PSU
Corsair SF1000 2024 (Custom Cables)
STORAGE
1TB + 2TB NVME
FANS

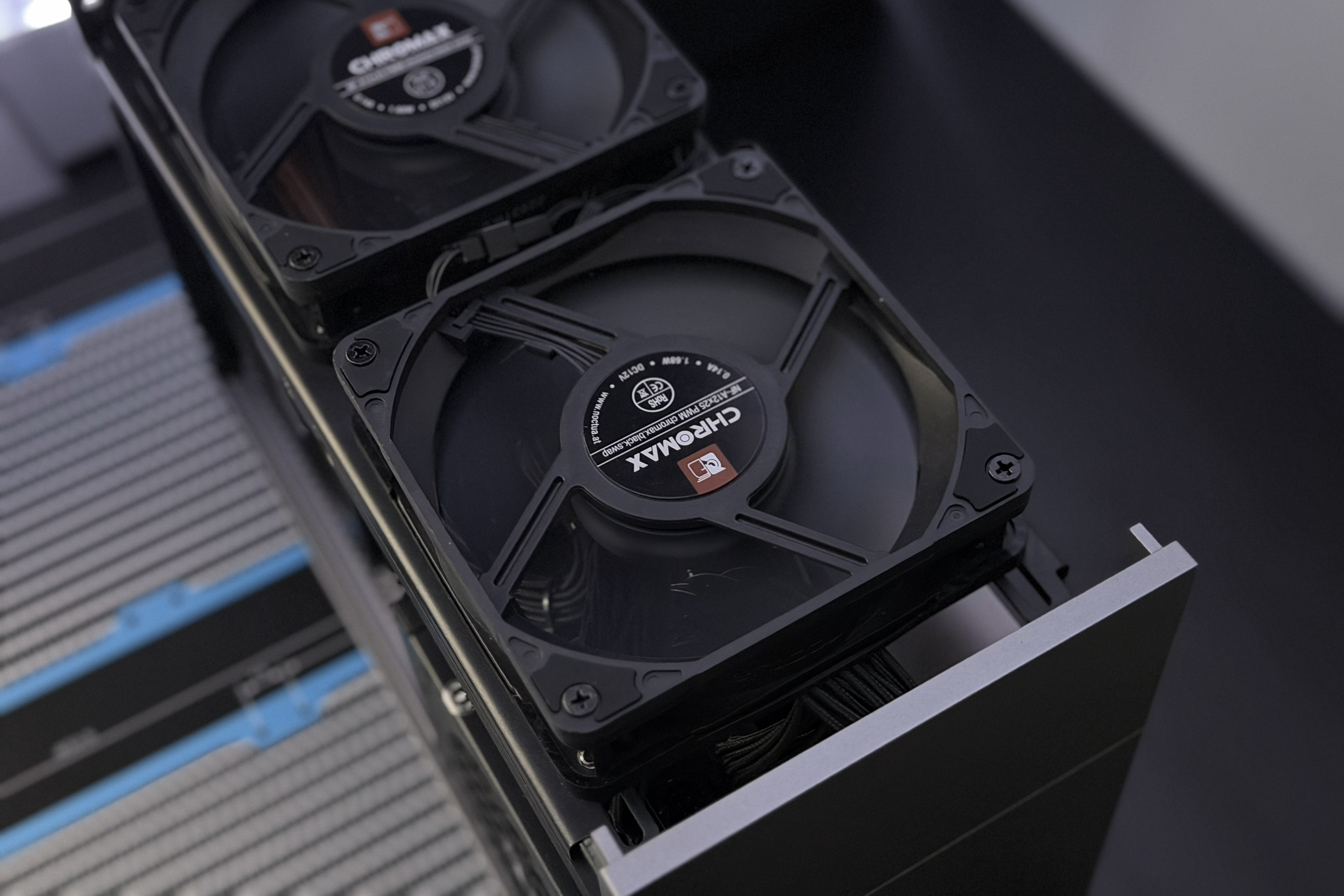

2x NF-A12x25 G2 Chromax + NA-IS1-12 Spacers

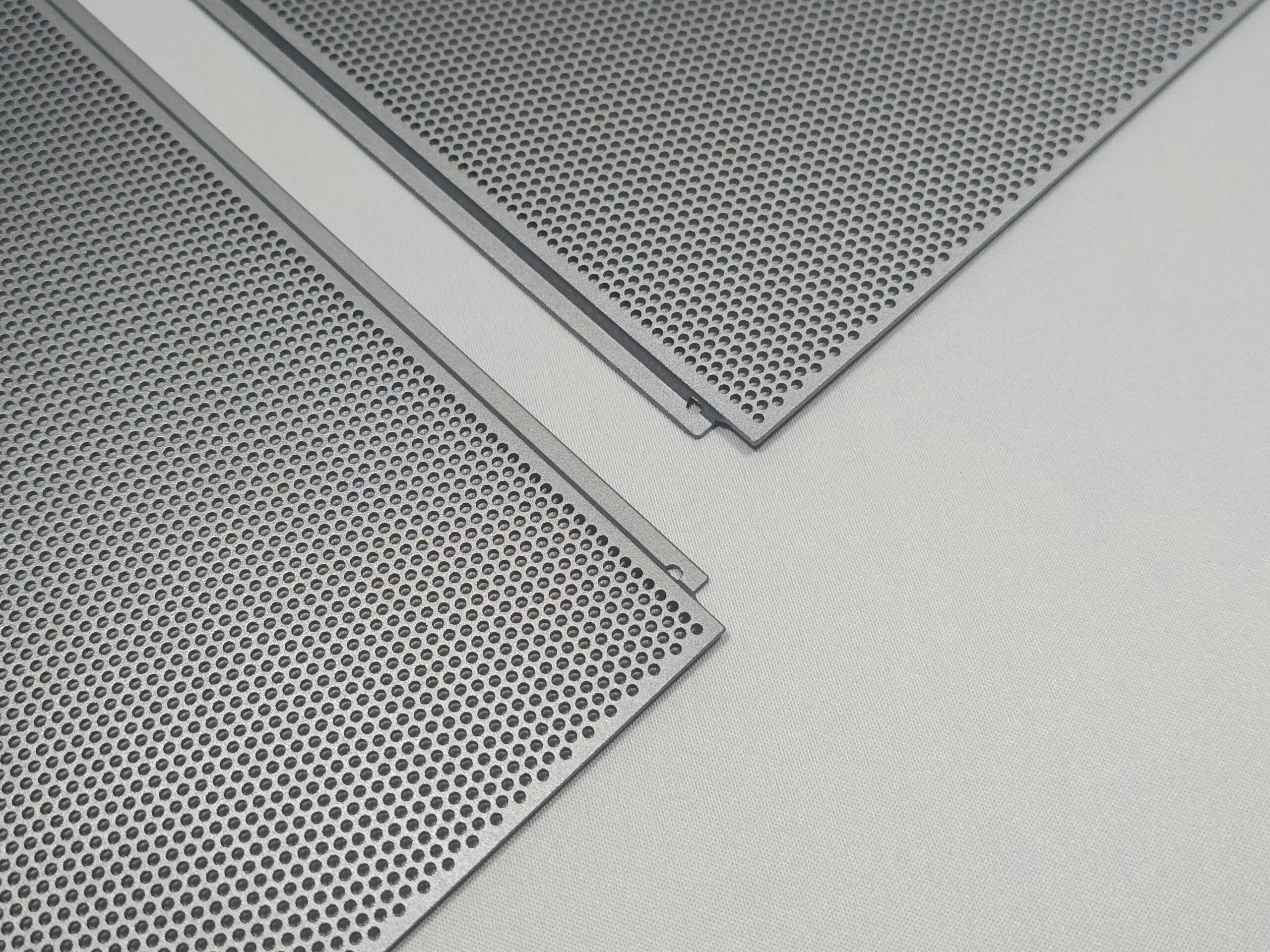

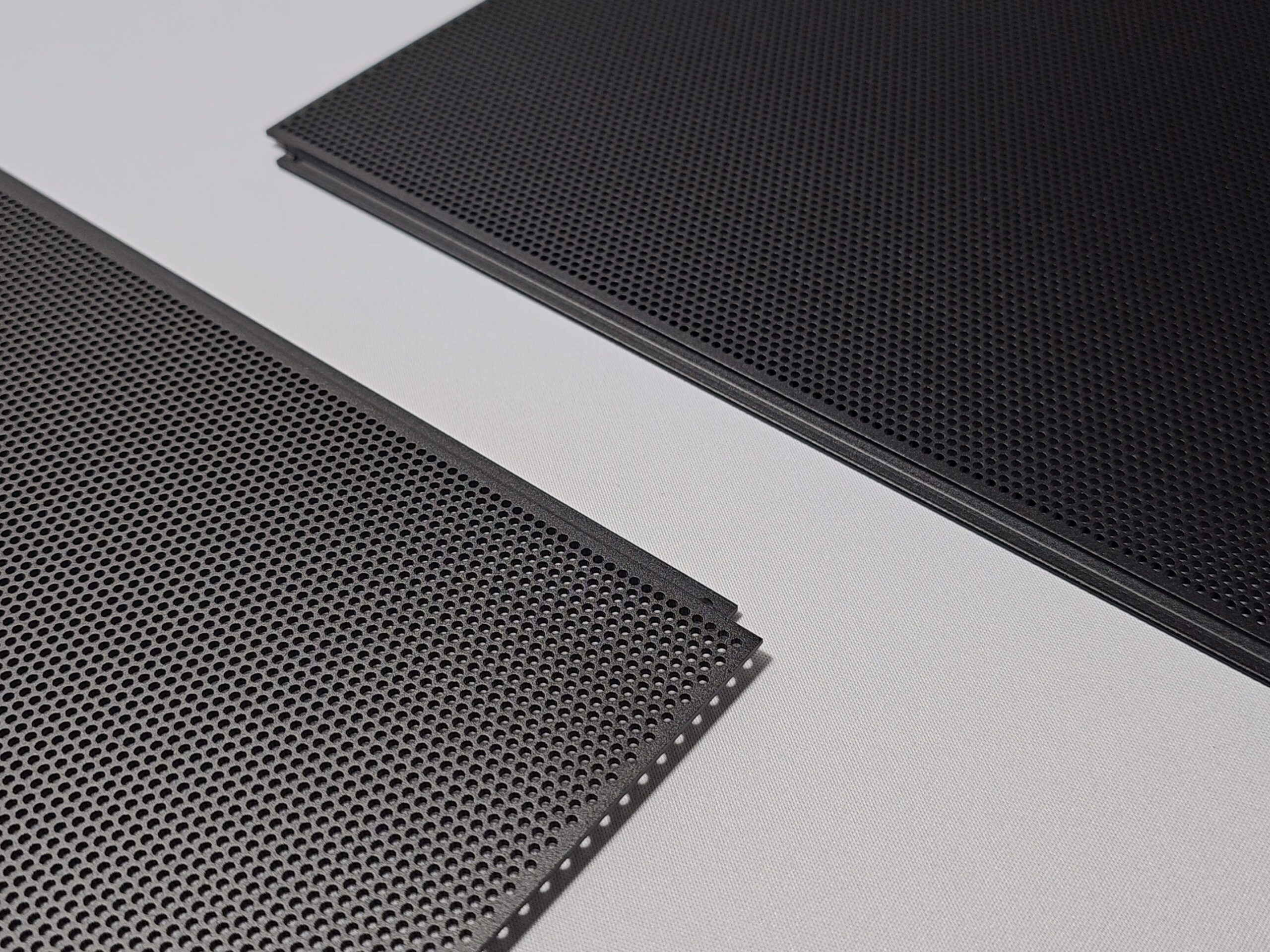

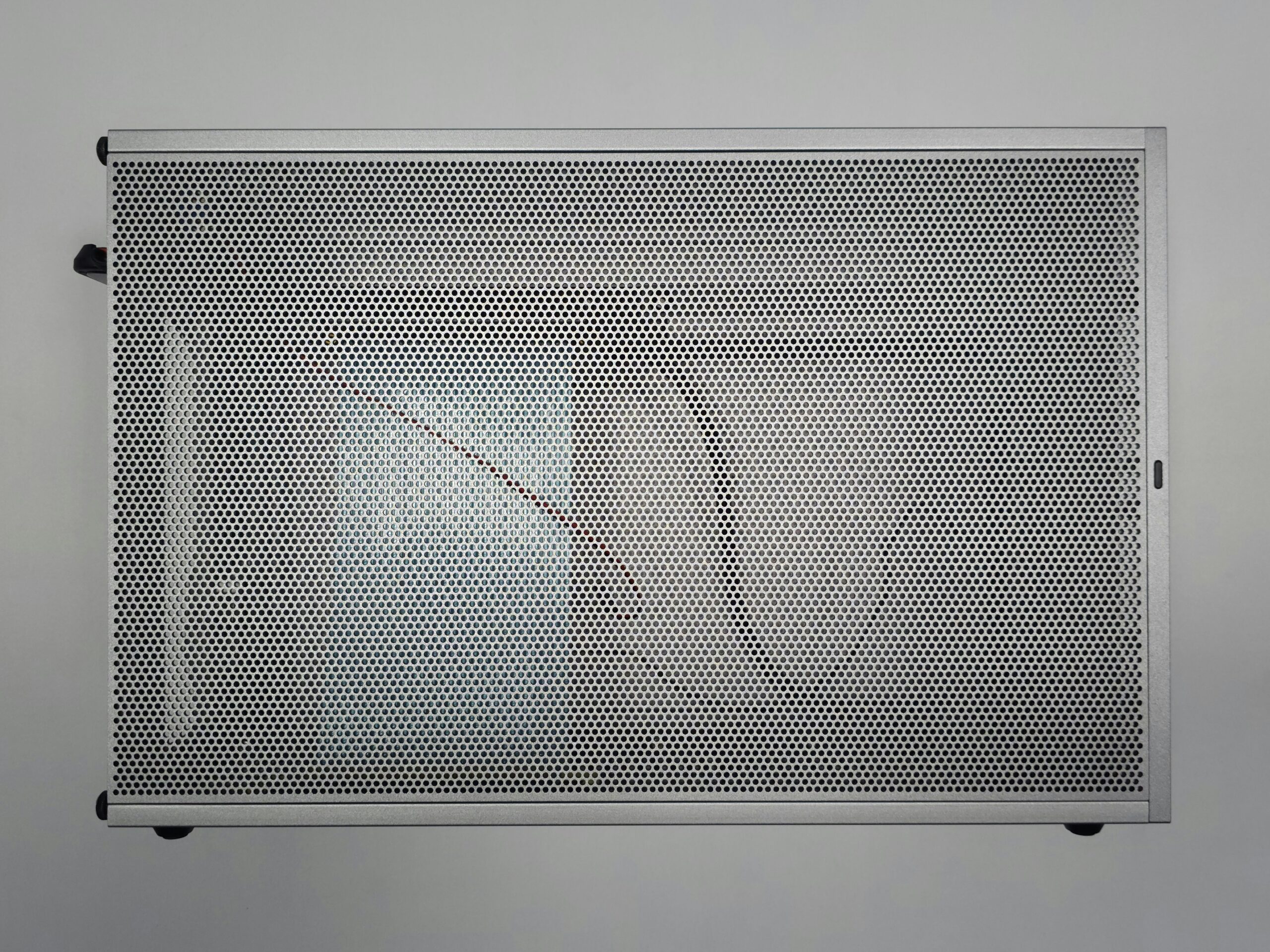

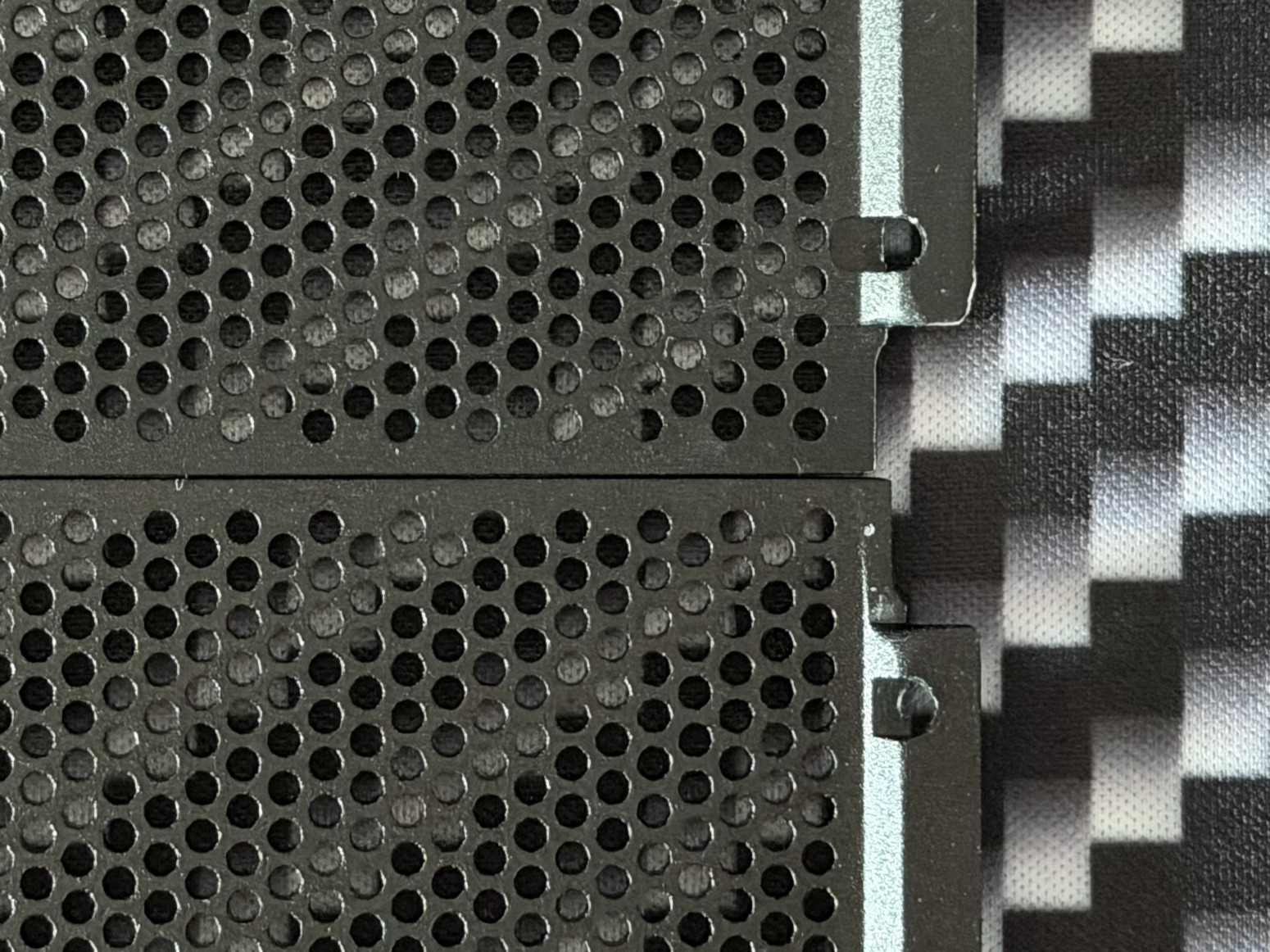

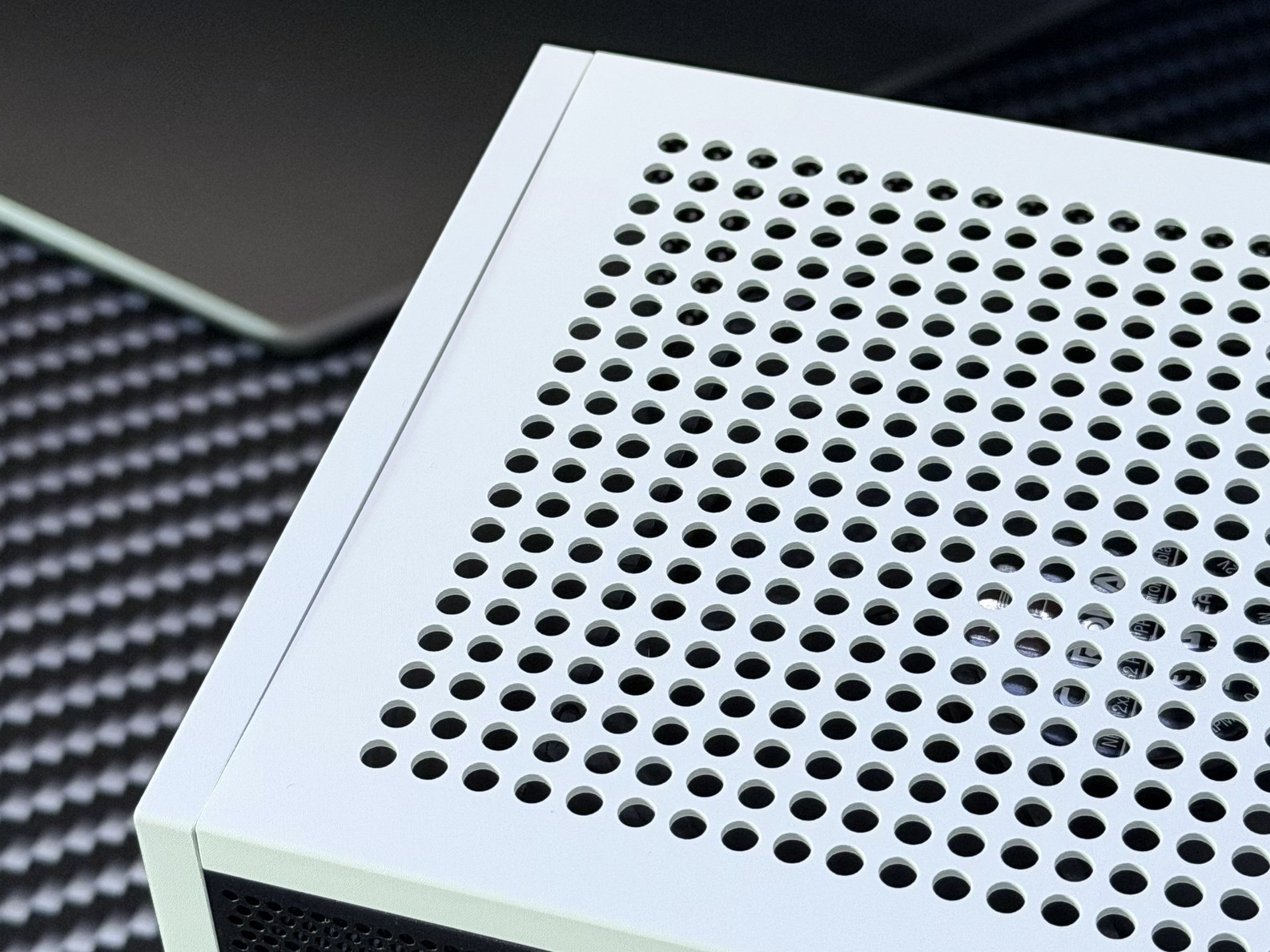

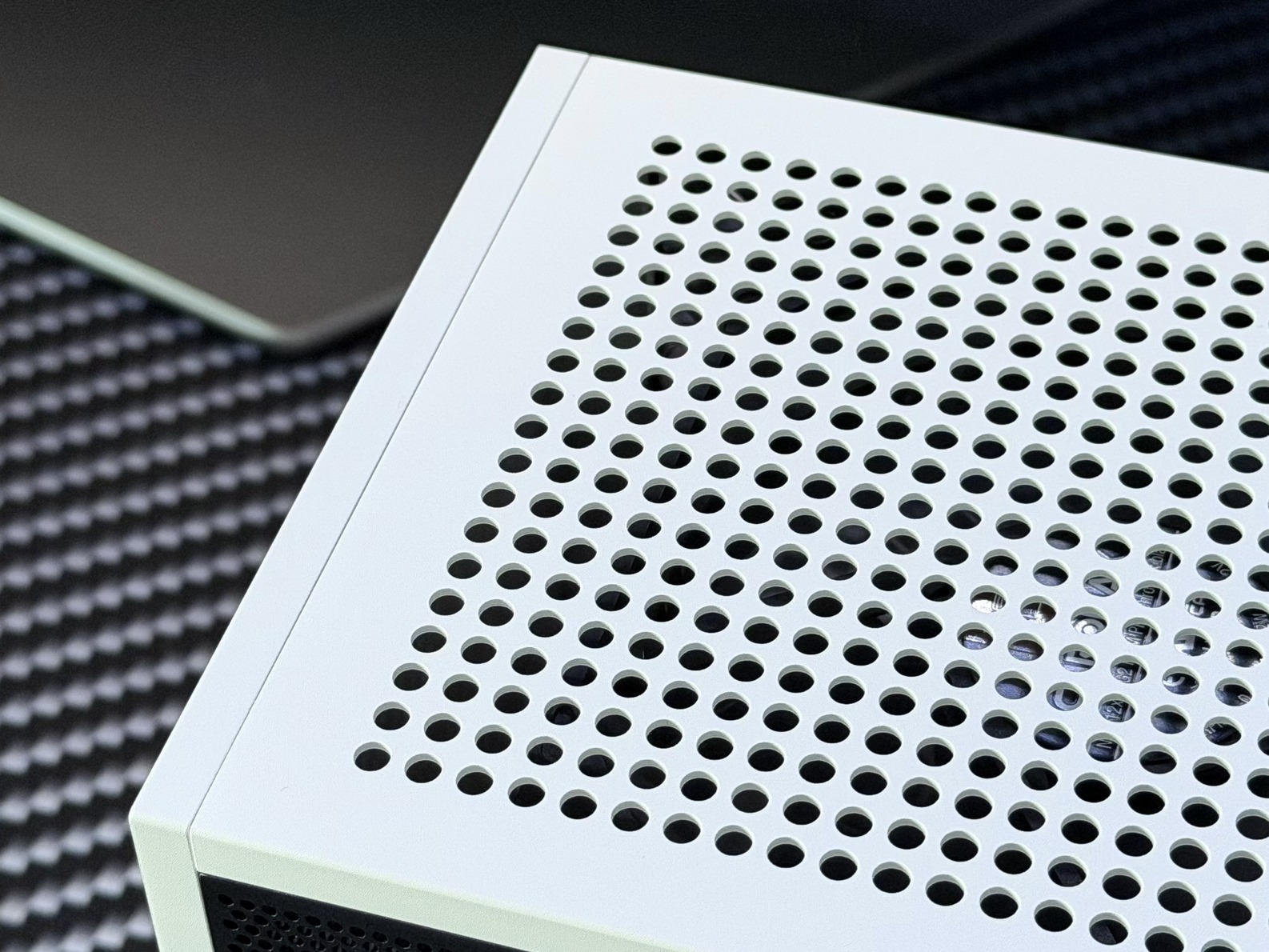

Our most recent FormD T1 v2.1 CNC side panels were slightly too tall as seen in the first image above. This shows our old and new side panels side by side. The taller side panels causes top panel fitment and misalignment issues shown in second image. While this is easily rectified through FormD support, it’s worth mentioning for others who may experience this issue and that it isn’t because the top panel is bowed itself.

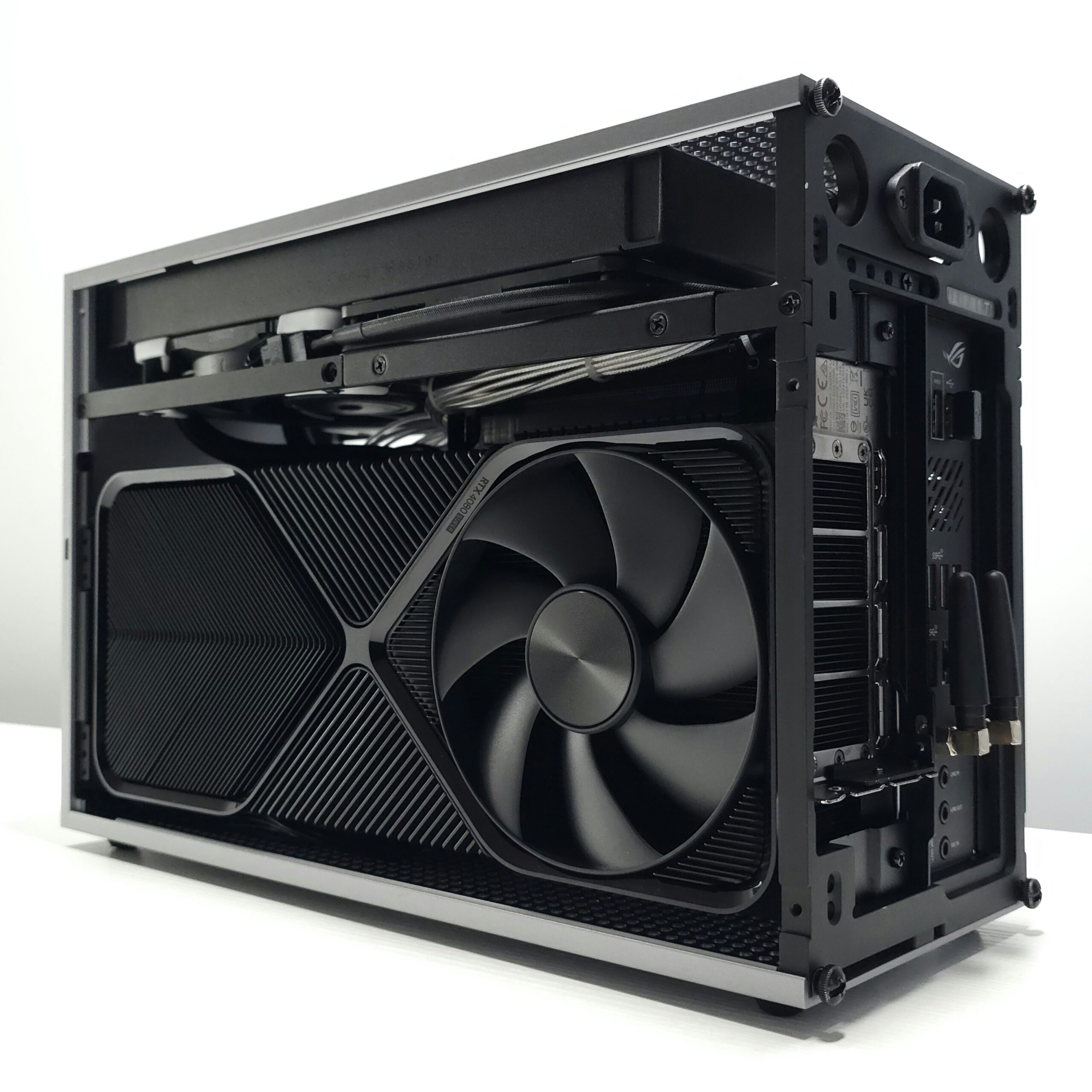

BUILD #2

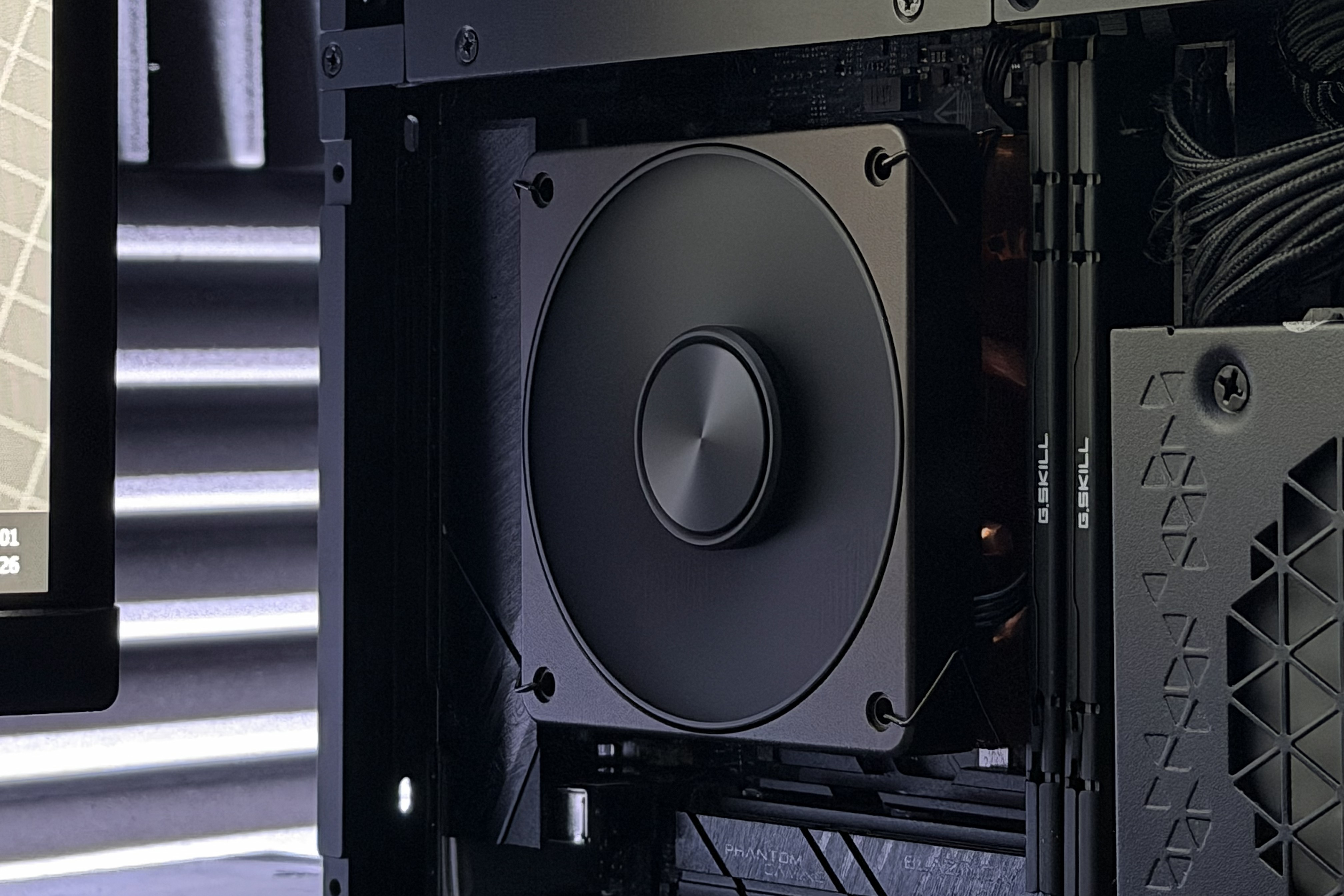

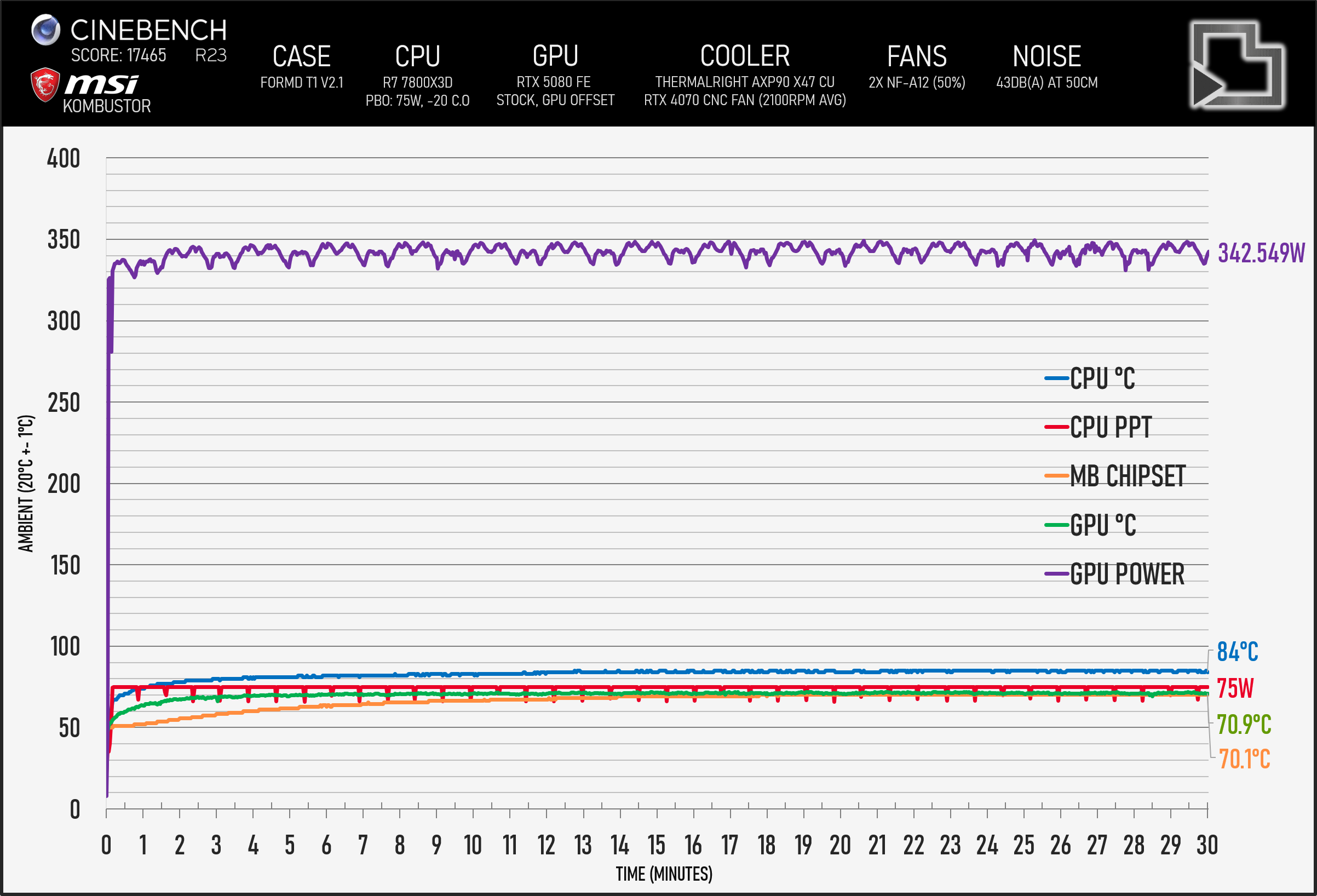

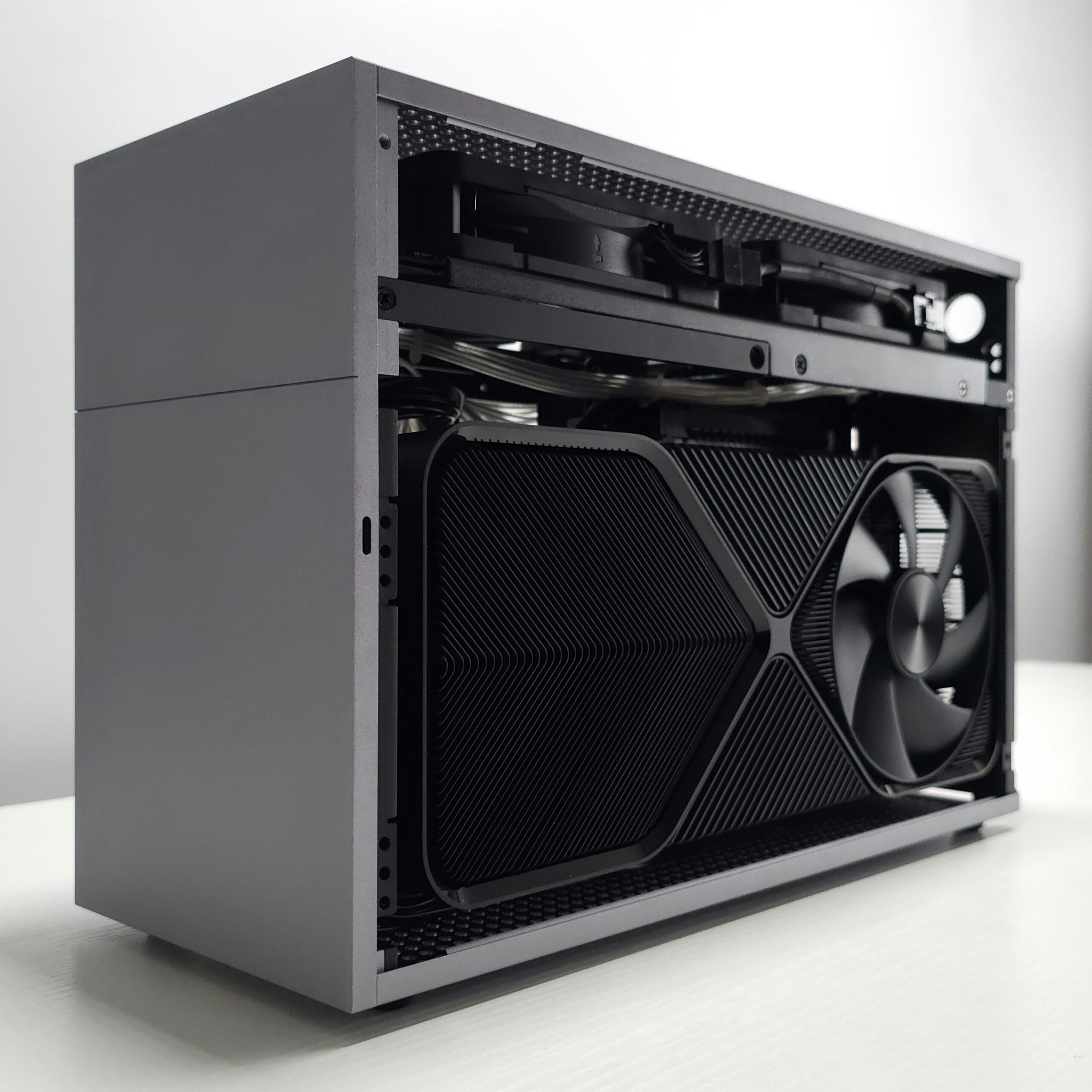

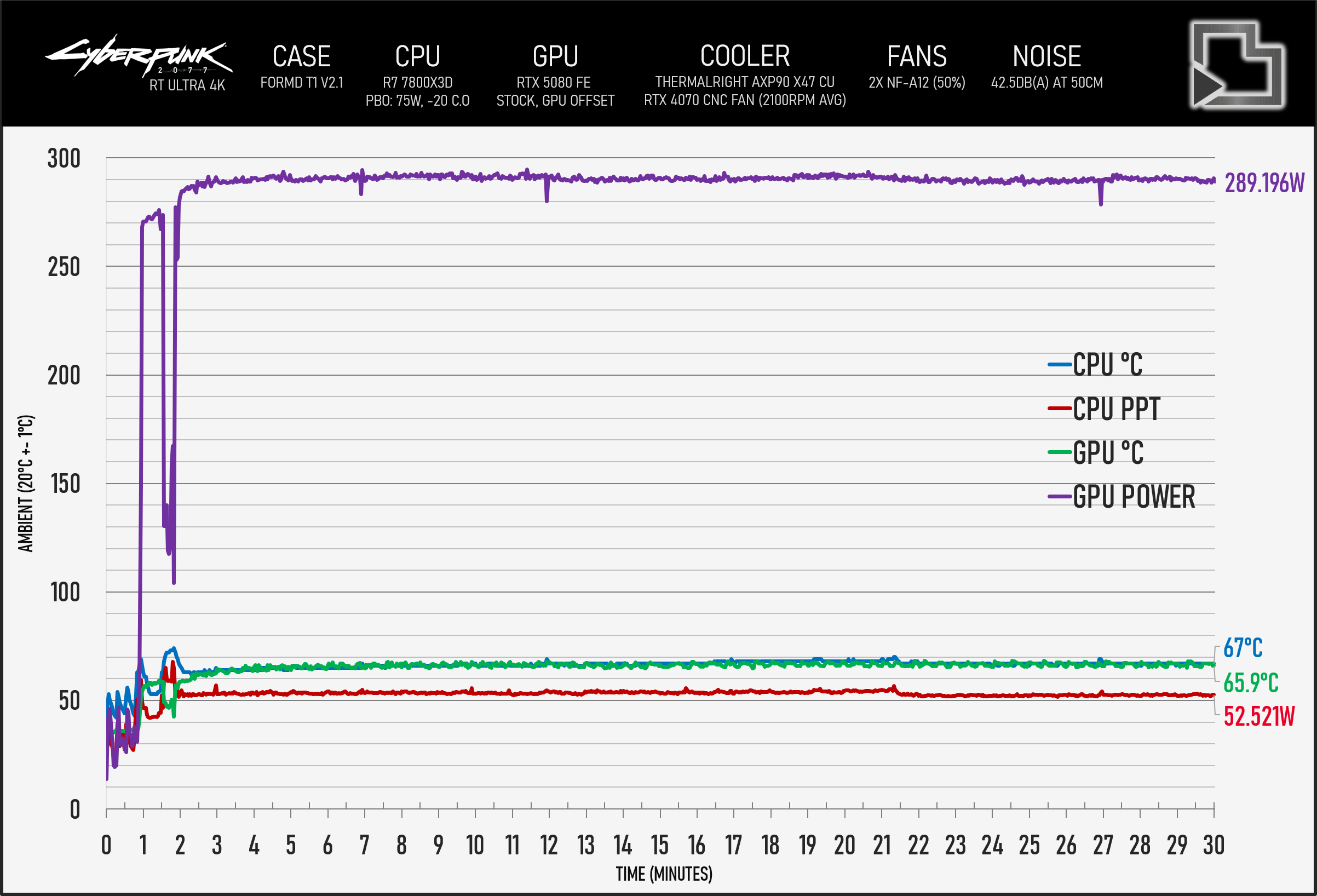

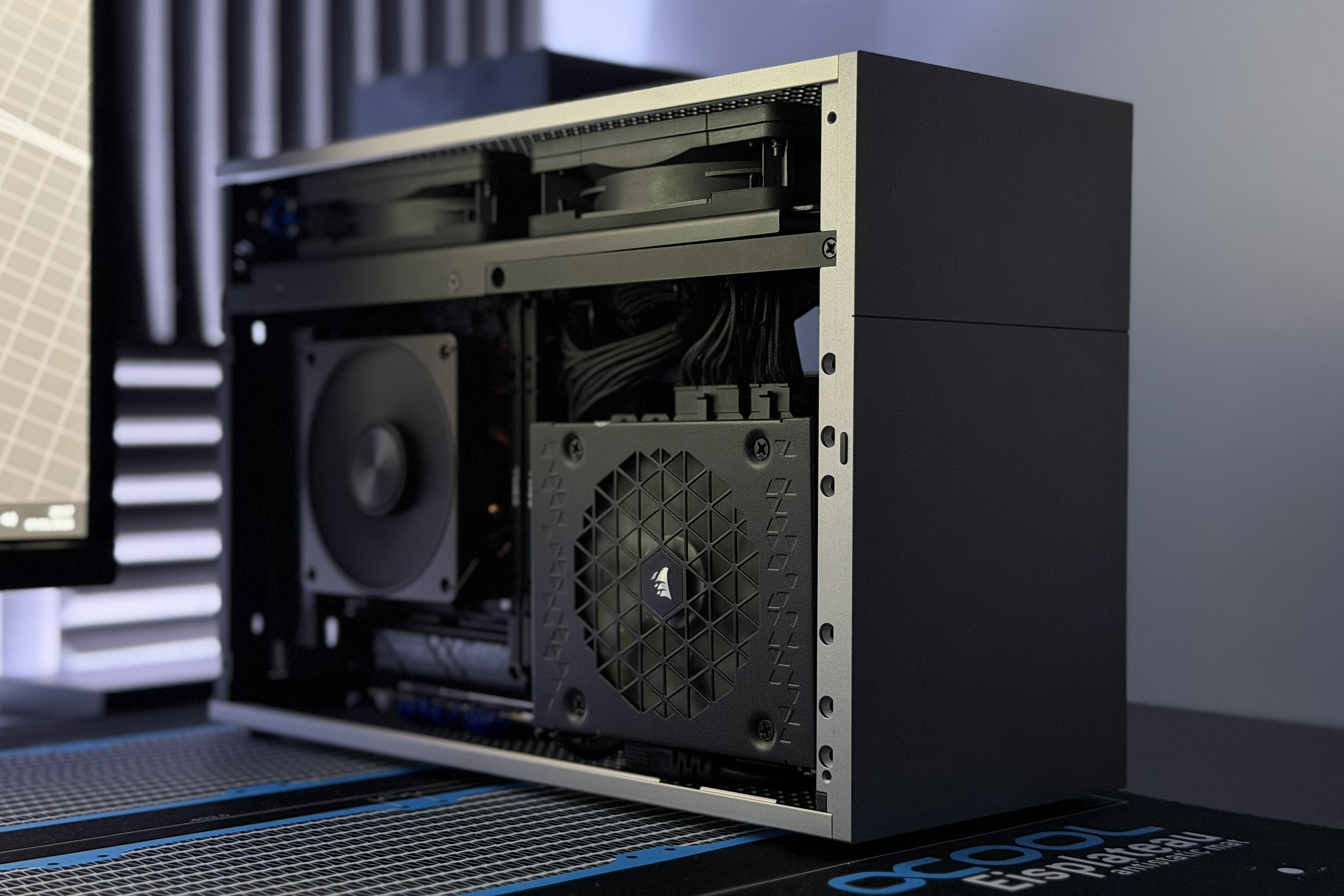

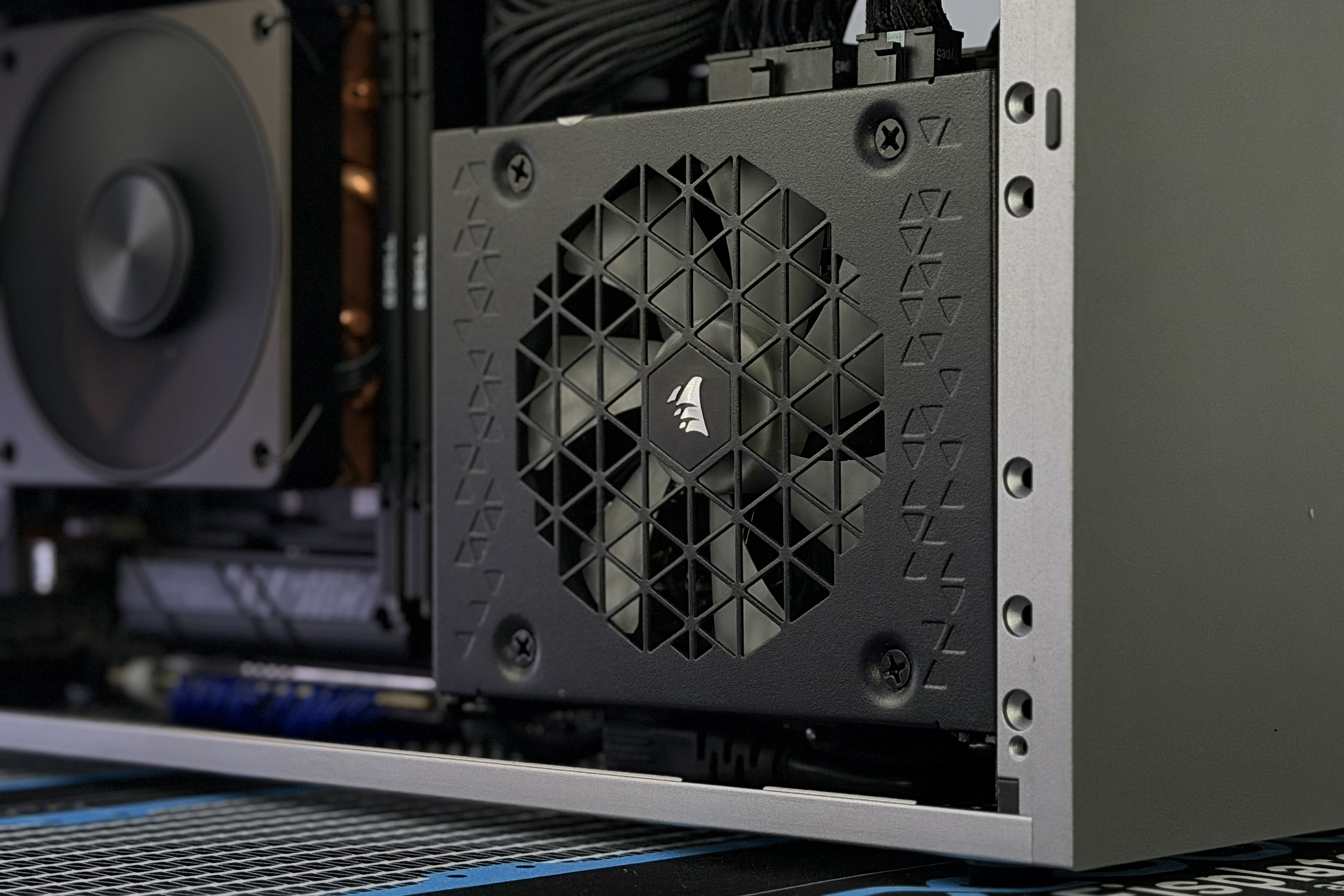

Build in the FormD T1 v2.1 Titanium in 3 slot mode, with RTX 5080 FE offset by 20mm. The featured 4070 CNC fan was picked up from AliEx (paid link).
MOTHERBOARD
ASRock B850I Lighting
CPU
Ryzen 7 7800X3D
GPU
RTX 5080 FE
RAM
32GB Gskill S5 DDR5, 6000MHz, CL30
COOLER
AXP90 X47 FC + 4070 CNC Fan
PSU
Corsair SF1000 2024
STORAGE
1TB + 2TB NVME
FANS
2x NF-A12x25

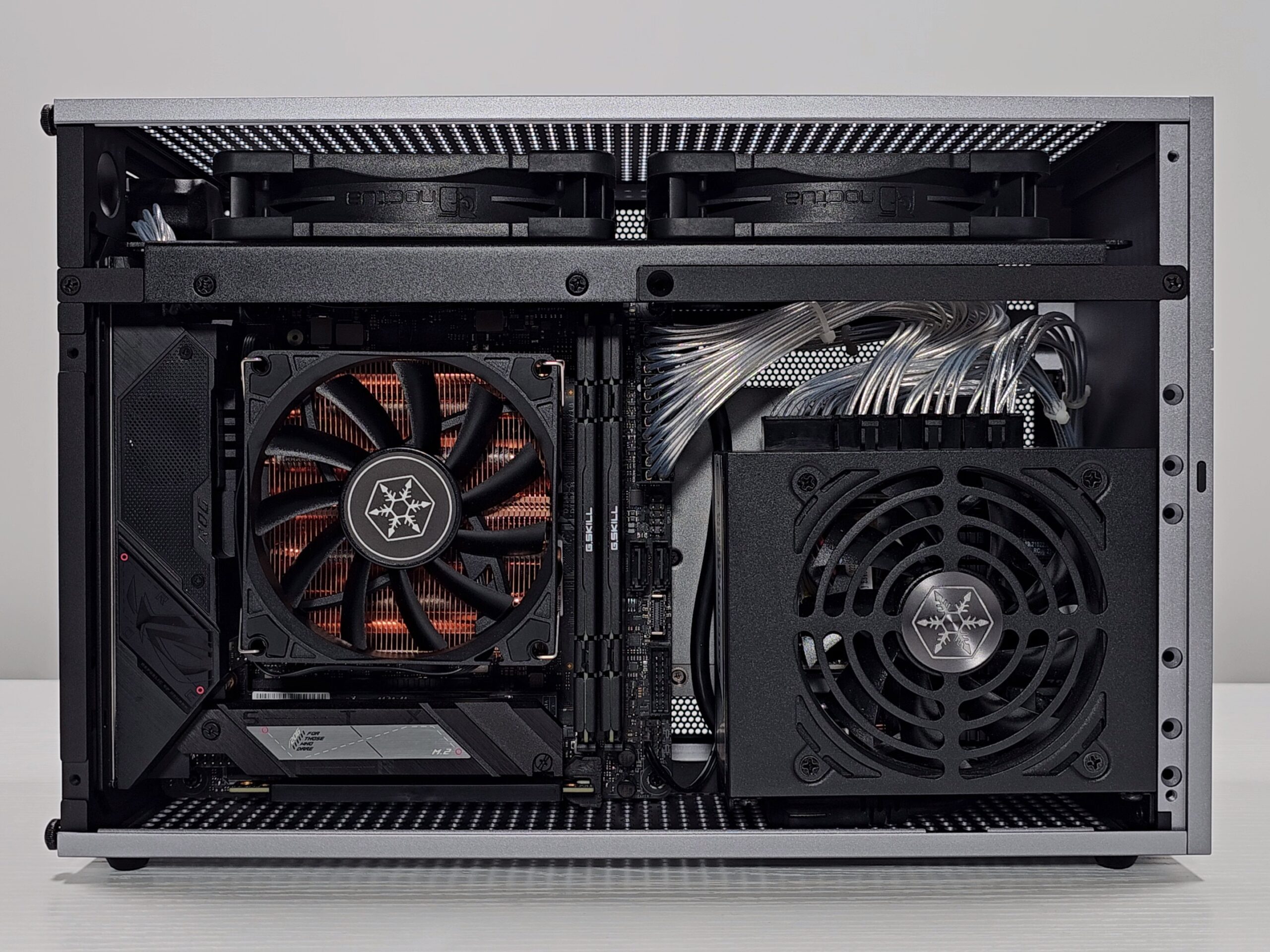

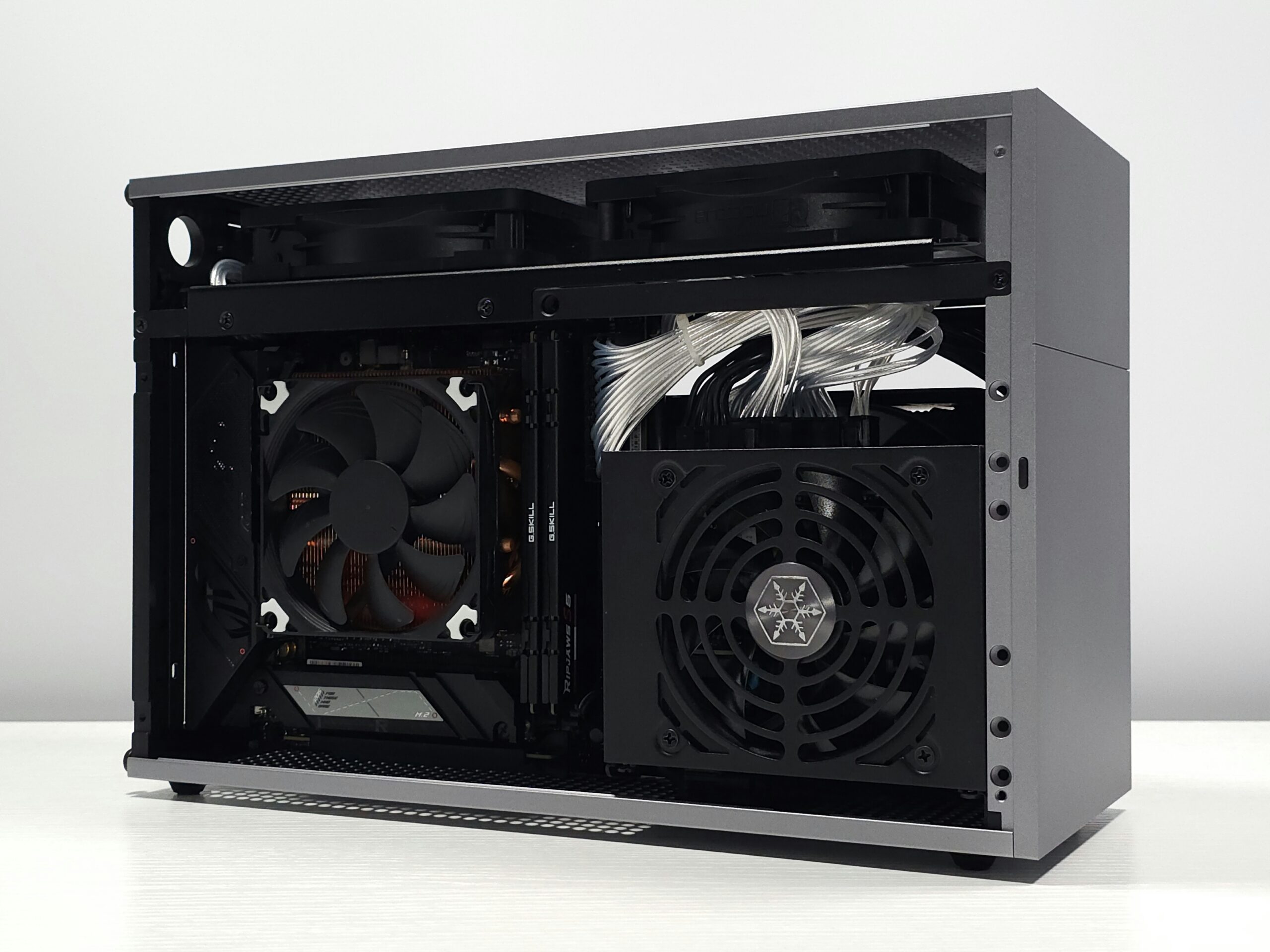

BUILD #3
We’ve updated some of the hardware to the most recent available.
MOTHERBOARD
Rog Strix B650E-I Gaming WiFi
CPU
Ryzen 7 7800X3D
GPU
RTX 4080 Super FE
RAM
32GB Gskill S5 DDR5, 6000MHz, CL30
COOLER
AXP90 X47 FC + NF-A9x14
PSU
Corsair SF1000 2024
STORAGE
1TB + 2TB NVME
FANS
2x NF-A12x25
BUILD #3

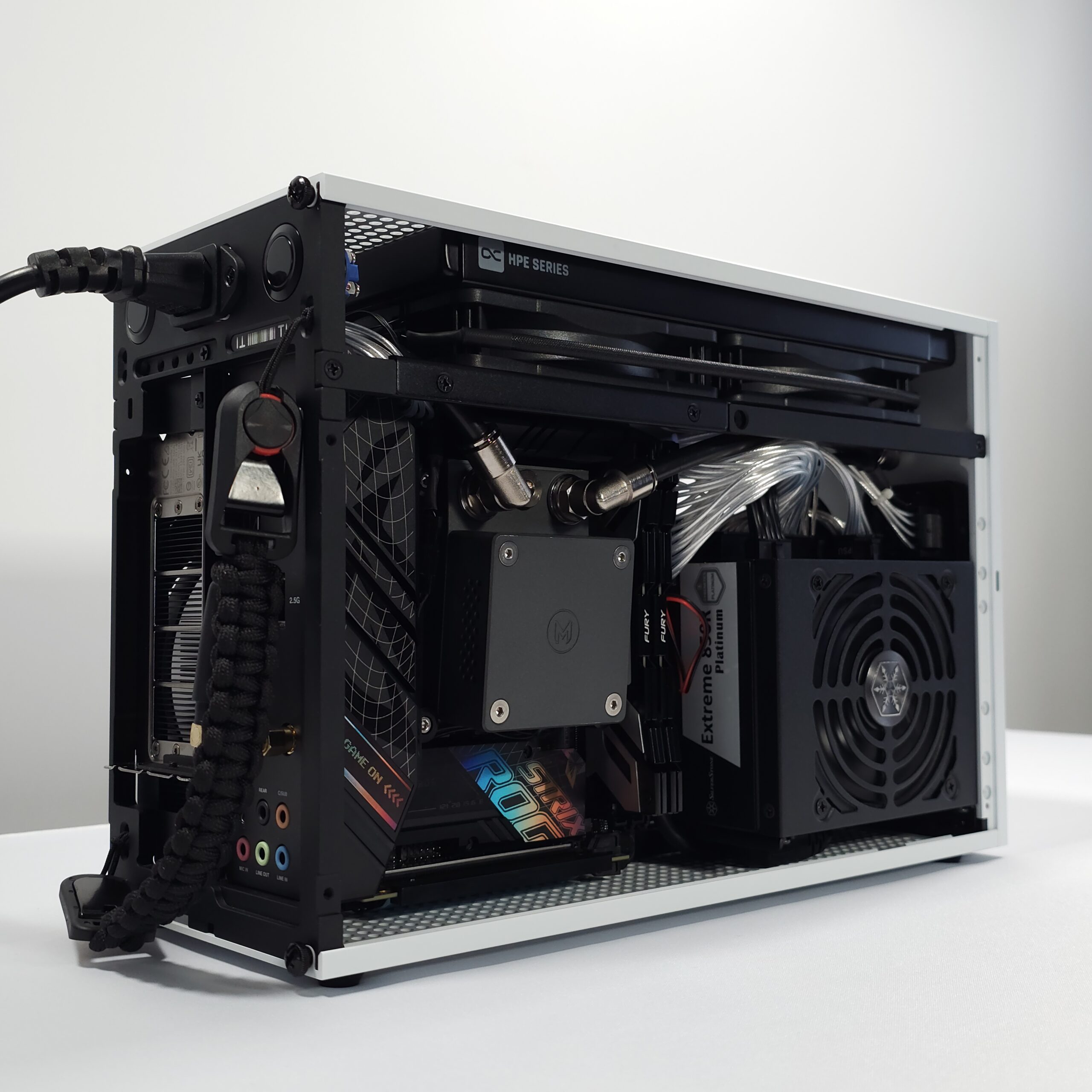

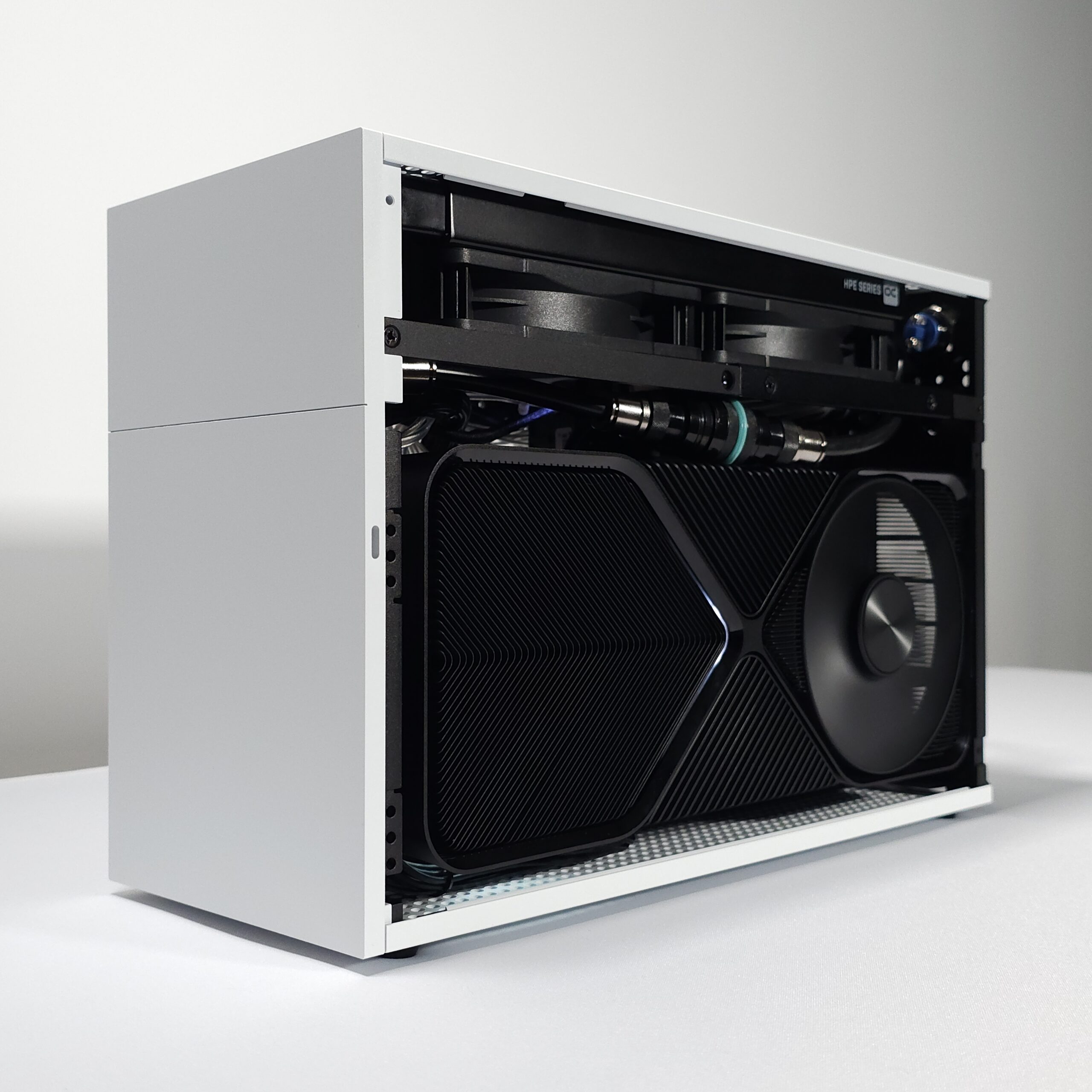

This build uses custom CPU only liquid cooling loop which offers much more customisation options and flexibility than traditional AIO liquid cooler. We’ve adjusted some of the hardware to the most recent available.
MOTHERBOARD
Rog Strix B650E-I Gaming WiFi
CPU
Ryzen 7 7800X3D
GPU
RTX 4080 Super FE
RAM
32GB Gskill S5 DDR5, 6000MHz, CL30
COOLER
Modultra LOBO + EK DDC 4.2
PSU
Corsair SF1000 2024
STORAGE
1TB + 2TB NVME
FANS
2x NF-A12x25
RADIATORS
Alphacool 240 ST20 HPE
FITTINGS
- 4x FESTO NPQH-L-G14-Q8-P10,
- 2x FESTO NPQH-DK-G14-Q8-P10,
- 2x Alphacool 20mm Extention Fittings
- 2x Alphacool Eiszapfen QDC kits
- 2x Barrow 1.5mm Mini Spacer
- 1M FESTO PUN-H-8X1,25-SW (197392)
The DDC pump was set to 1800RPM as these have a tendency to produce a high-pitched whine at higher RPM’s. The pump is powered and controlled by an Aquacomputer Quadro. Radiator fans were set to fixed/max speed of 50%. We installed two DIY power buttons + FormD case handle at the rear and USB-C at the front of the case.
FINAL THOUGHTS
FormD T1 may go down in history as one of the most beloved Mini-ITX cases…
