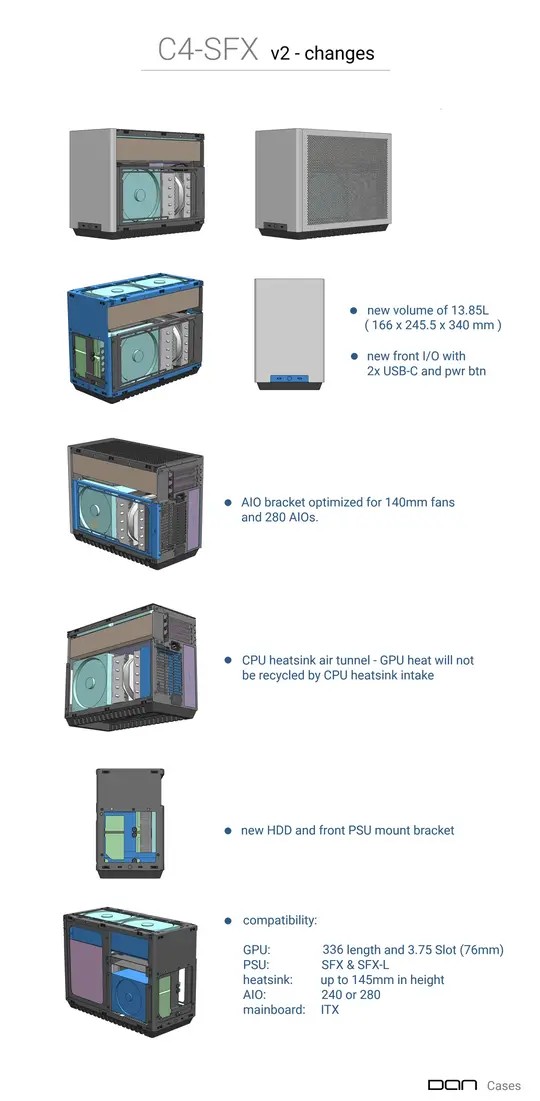

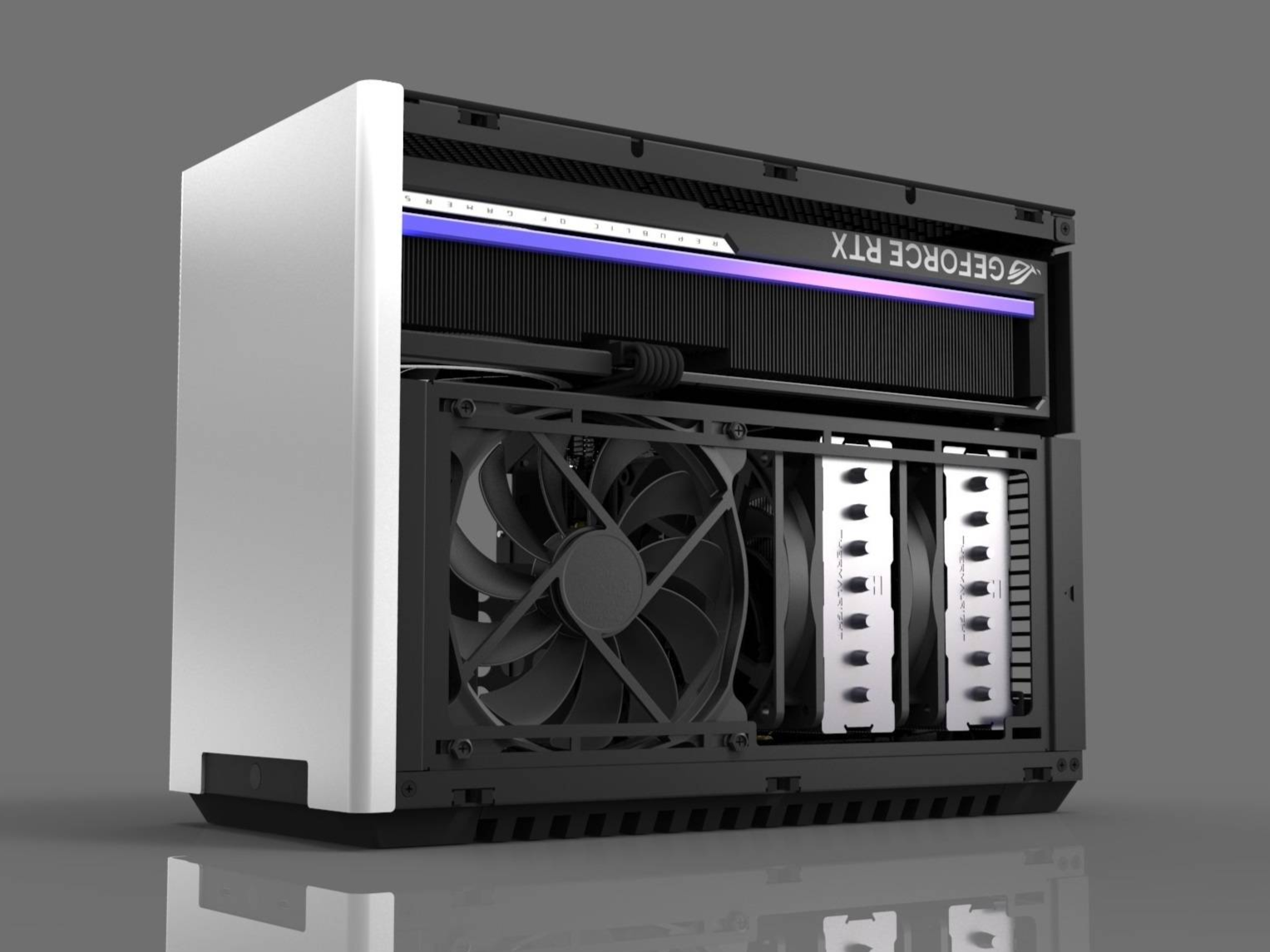

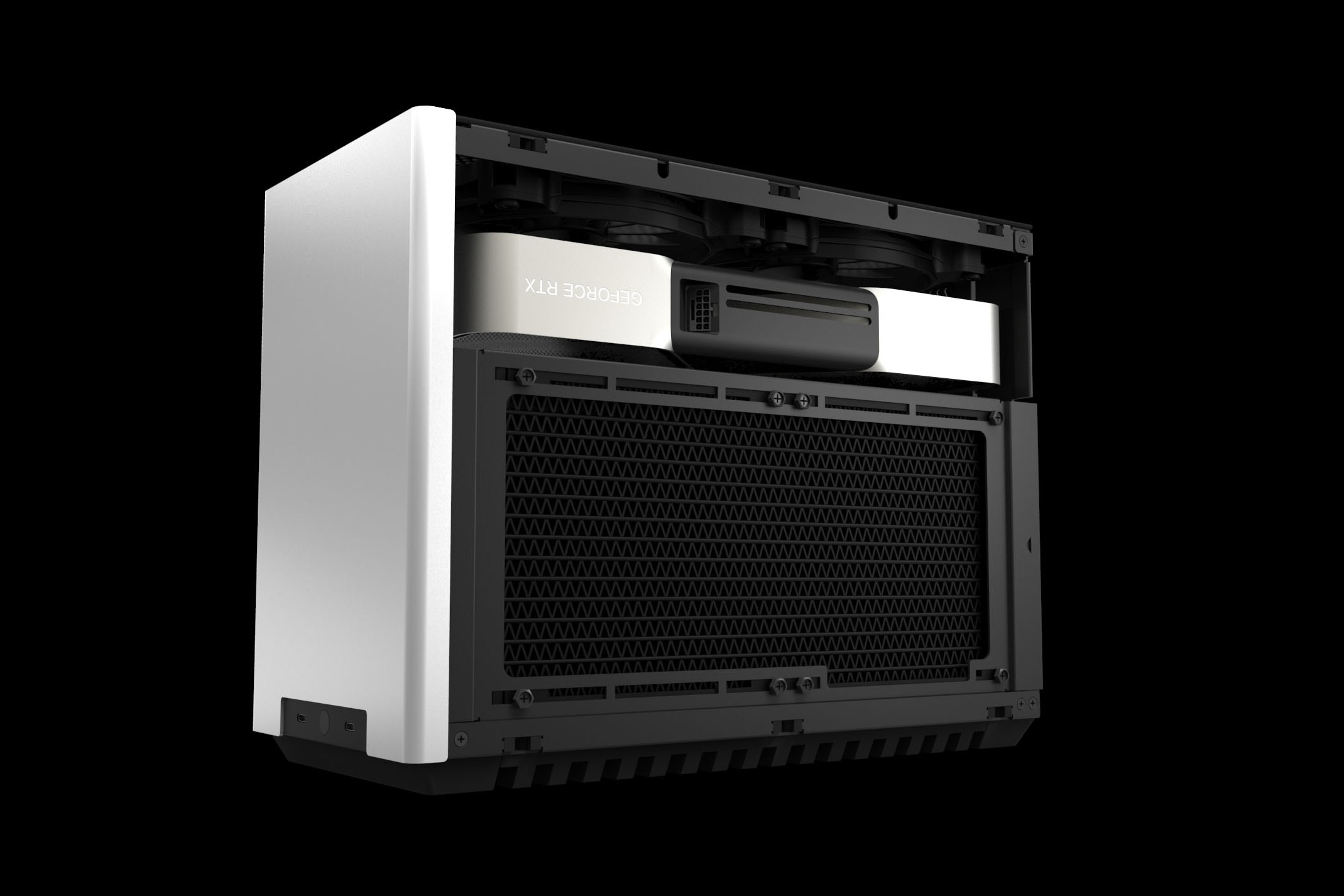

The Dan C4-SFX v2 will be 13.88L in volume and will support only Mini-ITX motherboards, has support for single 240/280mm radiator, 145mm air coolers and 3.7 slot full length graphics cards. Case pricing is expected to be around £199 / €200 and release Q4 2026. The C4-SFX v1 was discontinued after single production run.
SPECIFICATIONS

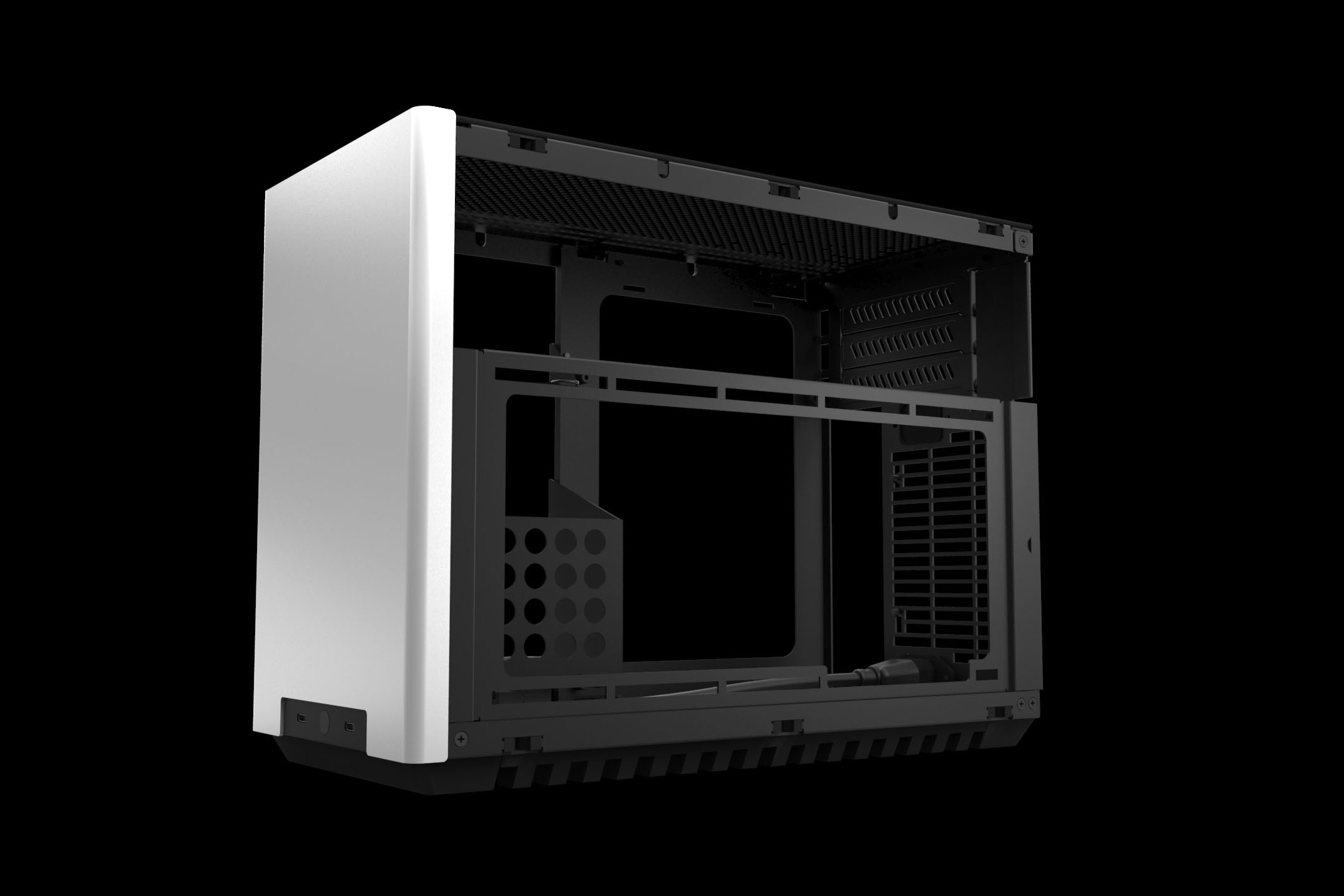

| MATERIALS | 1.5mm aluminum & 1.2mm steel |
| DIMENSIONS | 340×166x246mm (L×W×H) 342×166x260mm (including case feet) |

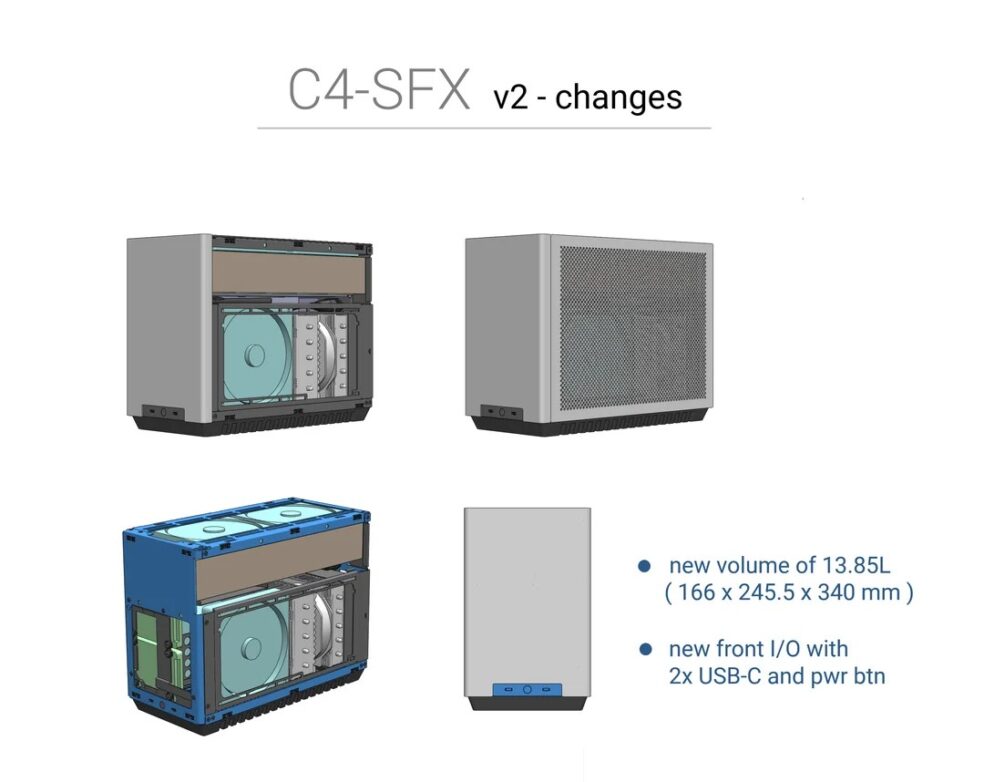

| VOLUME | 13.88 Litres |
| CASE I/O | Power Button, 2x USB 3.2 gen2 Type-C (internal Key-A and internal USB-C) |

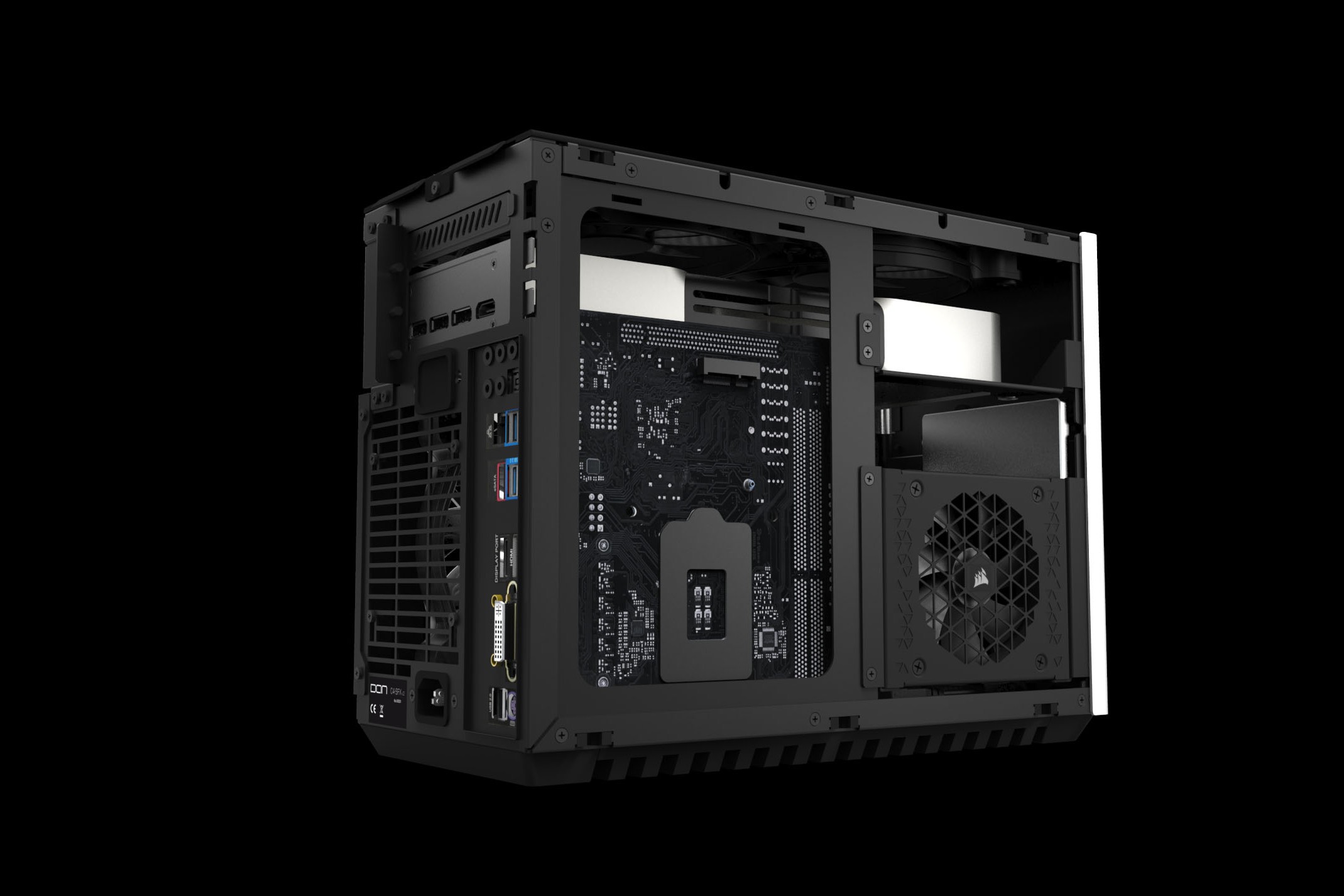

| MOTHERBOARD SUPPORT | Mini-ITX, DTX, Deep-ITX |

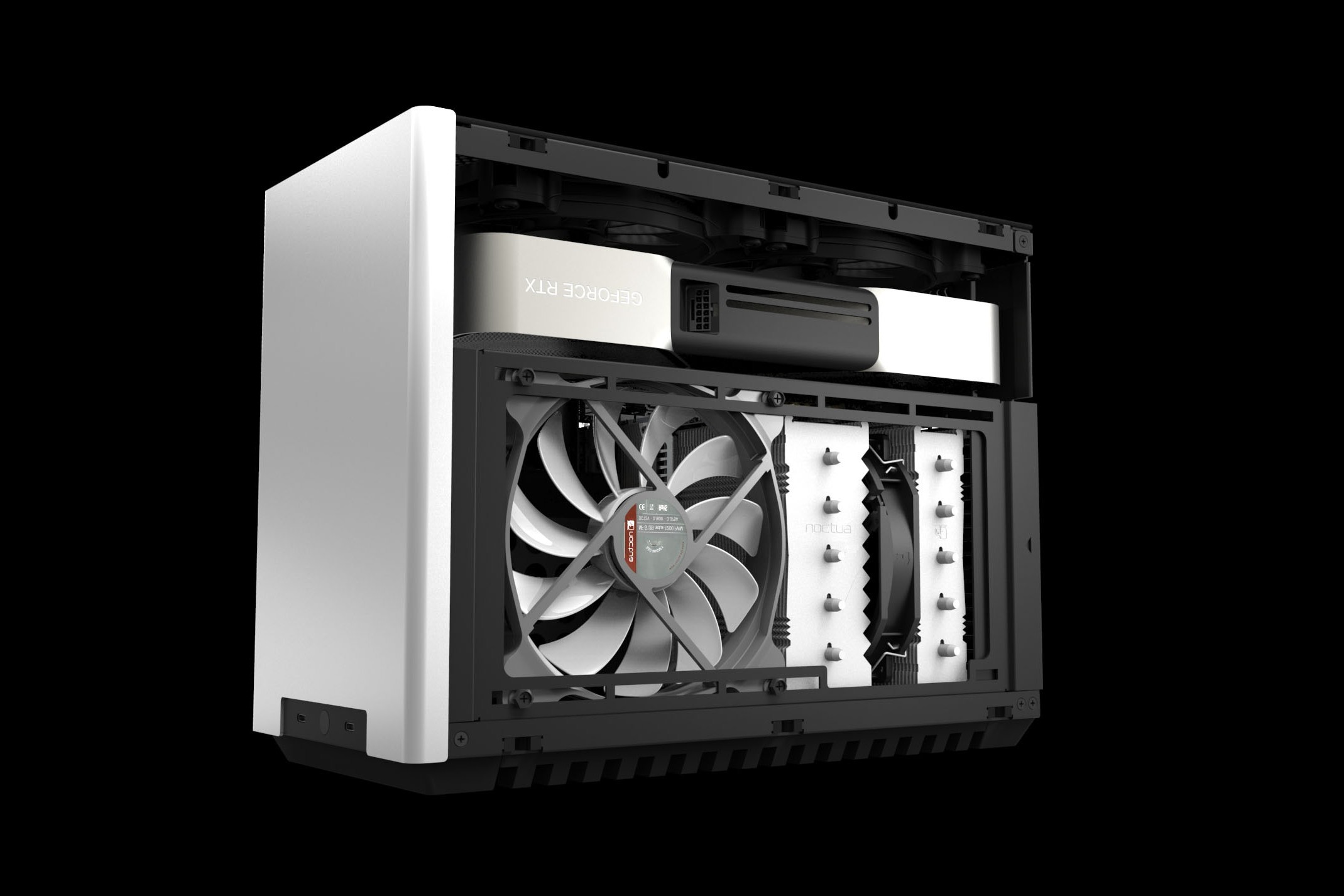

| CPU COOLER CLEARANCE | 145mm |
| GRAPHHICS CARD COMPATIBILITY | 3.7 slot, 336mm length & 138mm height |

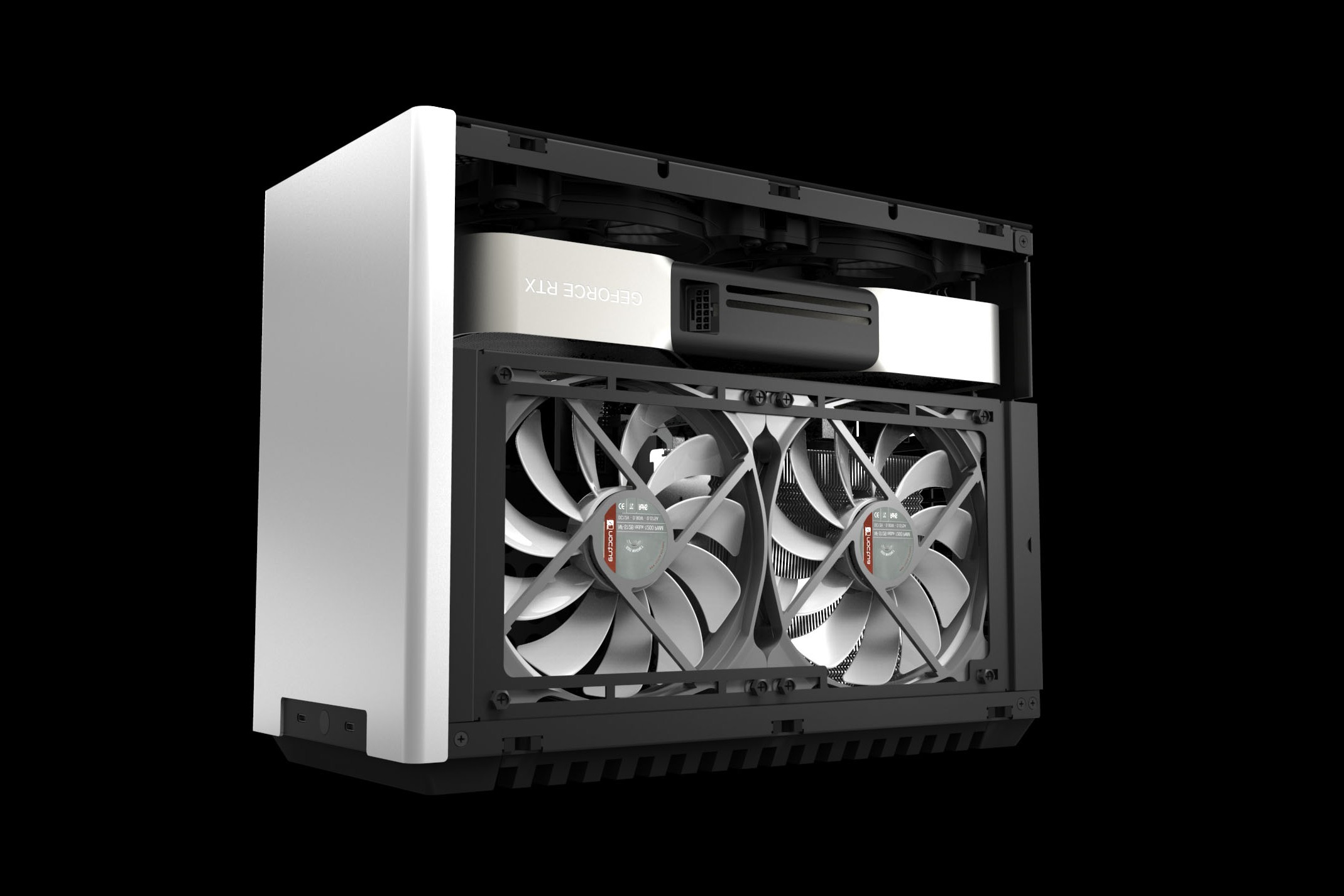

| LIQUID COOLING SUPPORT | 1x 240 / 280 |
| CASE FANS SUPPORTED | Top: 2x 120 / 140mm Side: 2x 120 / 140mm Rear: 1x 92mm |
| POWER SUPPLY COMPATIBILITY | SFX / SFX-L |
| 2.5 / 3.5” DRIVES SUPPORTED | 2x 2.5″ |
| COLOURS | Black & Silver |
