THERMALRIGHT AXP120-X67

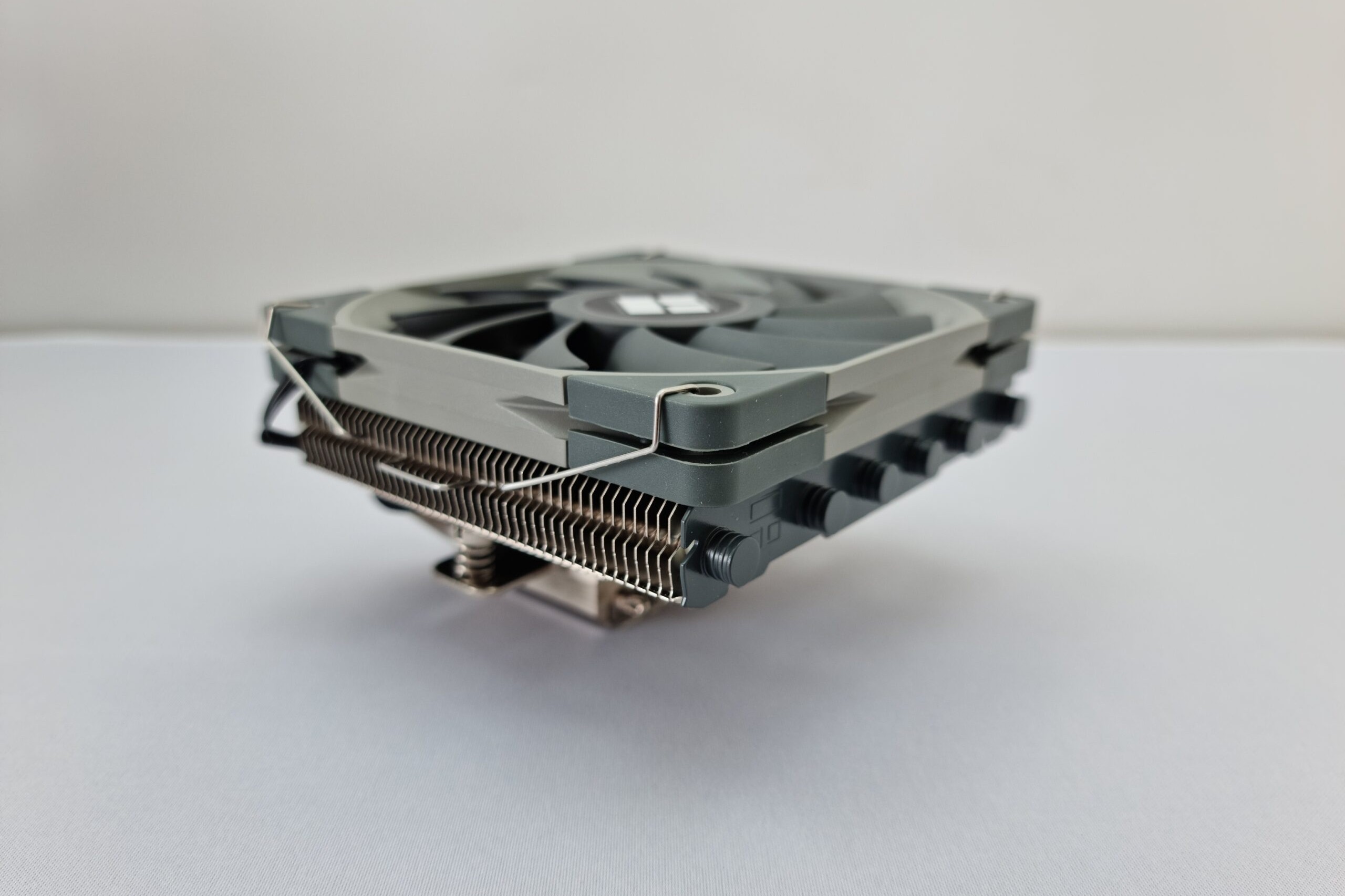

AXP120-X67 is low profile CPU cooler at 67mm in height and utilises top mounted 120 slim fan at 1900 max.rpm. The cooler is also available in black.
SPECIFICATIONS
| MODELS | AXP120-X67 |
| DIMENSIONS | 120×120×67mm (L×W×H) |

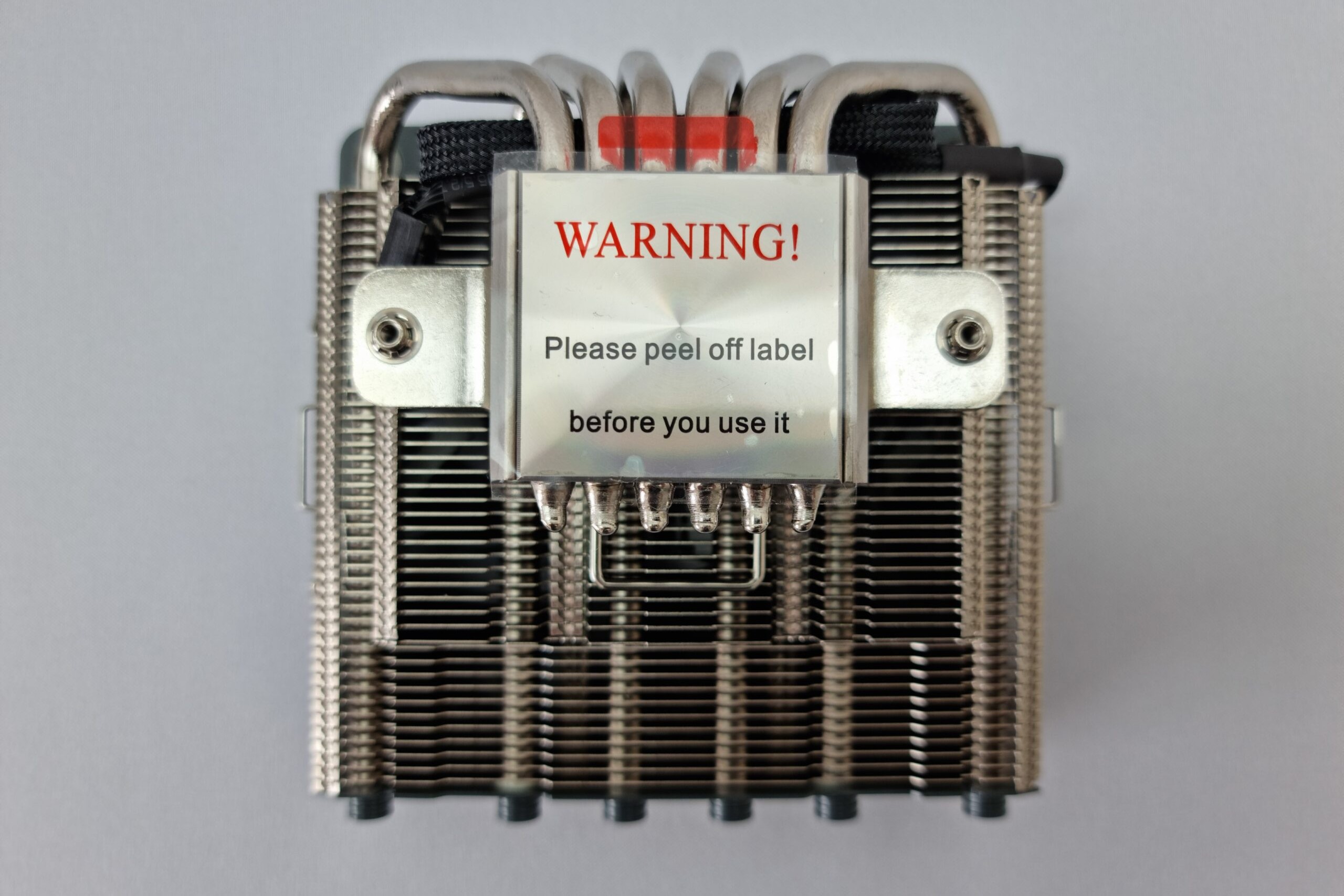

| HEATSINK | 6x 6mm copper heat-pipes, copper base (nickel coated), aluminium cooling fins |
| COMPATIBILITY | Intel: 115X/1200/1700 AMD: AM4/AM5 |

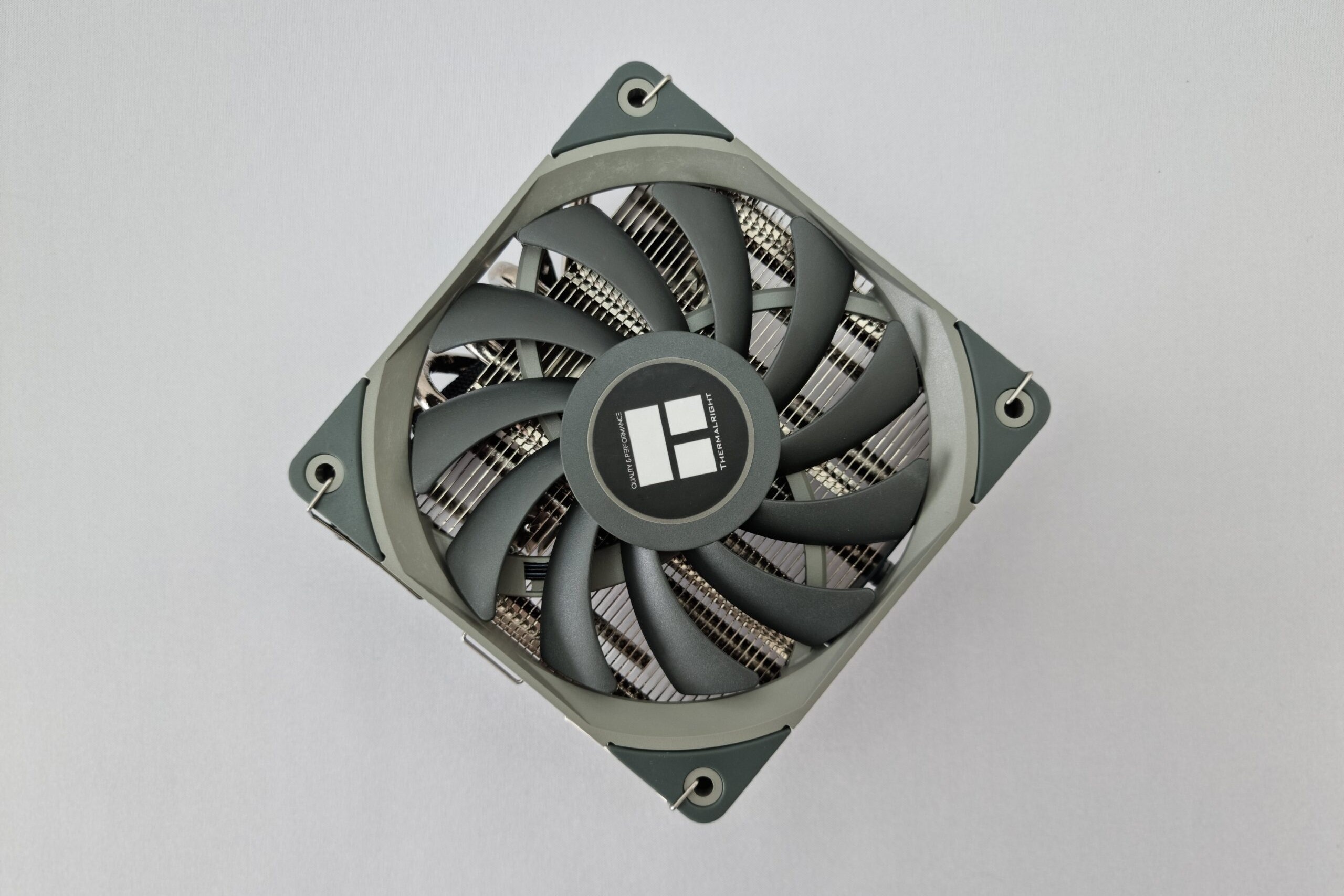

| FANS | 1x 120×120×15mm S-FDB Bearing Fan TL-C12015 (1900RPM +10%) |
| RAM CLEARANCE | 40mm |
FANS
The stock fan reached around 40dB at full load (1900RPM) at distance of 50cm.
TEST SYSTEM
Testing is carried out on the BC1 Mini (open testbench) in 20°C ambient room temperature.
CASE
BC1 Mini V2
MOTHERBOARD
Rog Strix B650E-I Gaming WiFi
CPU
Ryzen 7 7800X3D
RAM
32GB Gskill S5 DDR5, 6000MHz, CL30
PSU
Corsair SF1000 2024
STORAGE
1TB + 2TB NVME

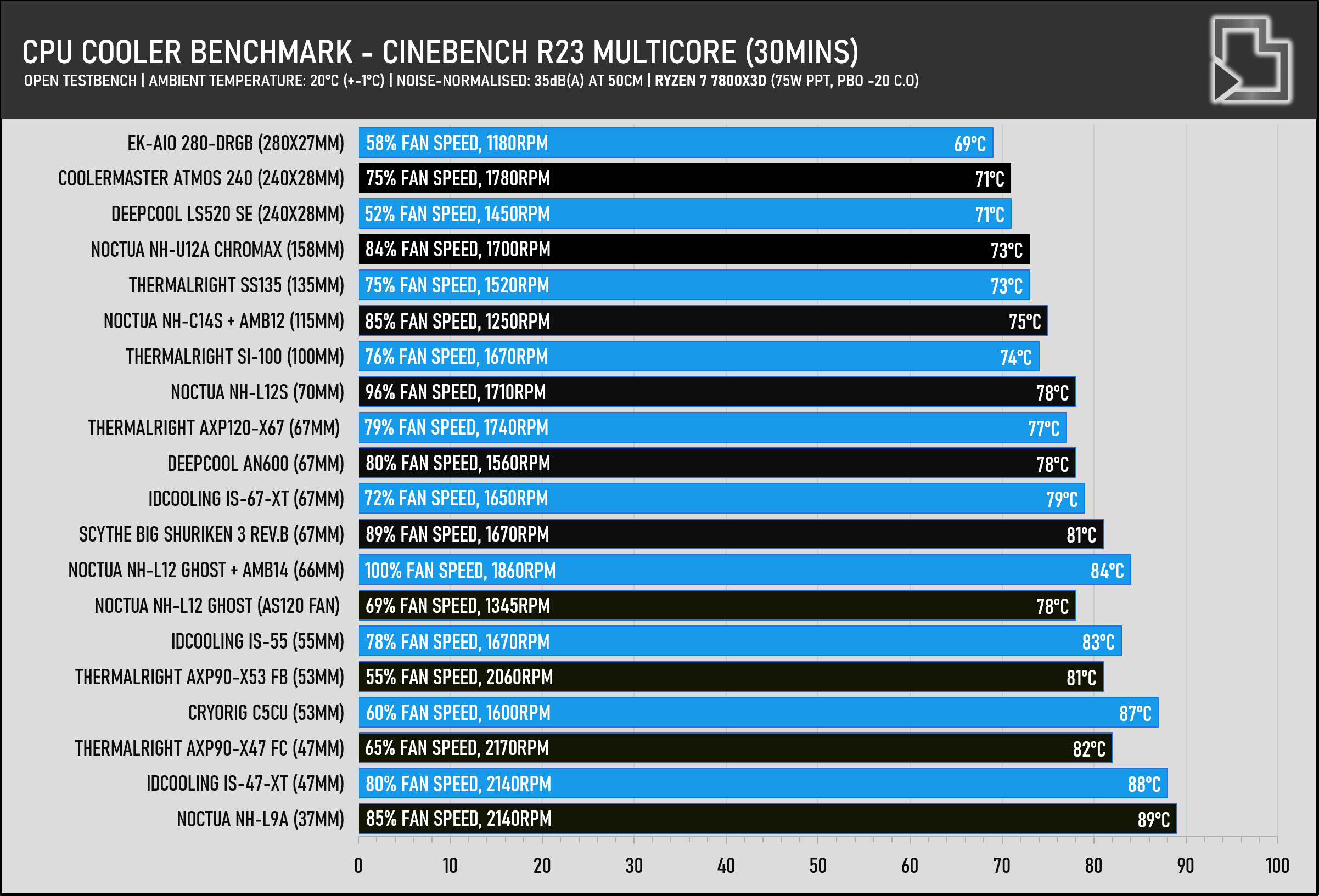

THERMAL BENCHMARKS
AXP120-X67 (paid link) was tested with the included fan at noise normalised 35db(A) and distance of 50CM.
FINAL THOUGHTS
Thermalright’s AXP120-X67 is inexpensive, has reasonable build quality and effective mounting solution. The included fan is usable and motherboard clearance is good. The real downside to these style coolers is top mounted fan which can cause turbulence depending on side panel clearance.
