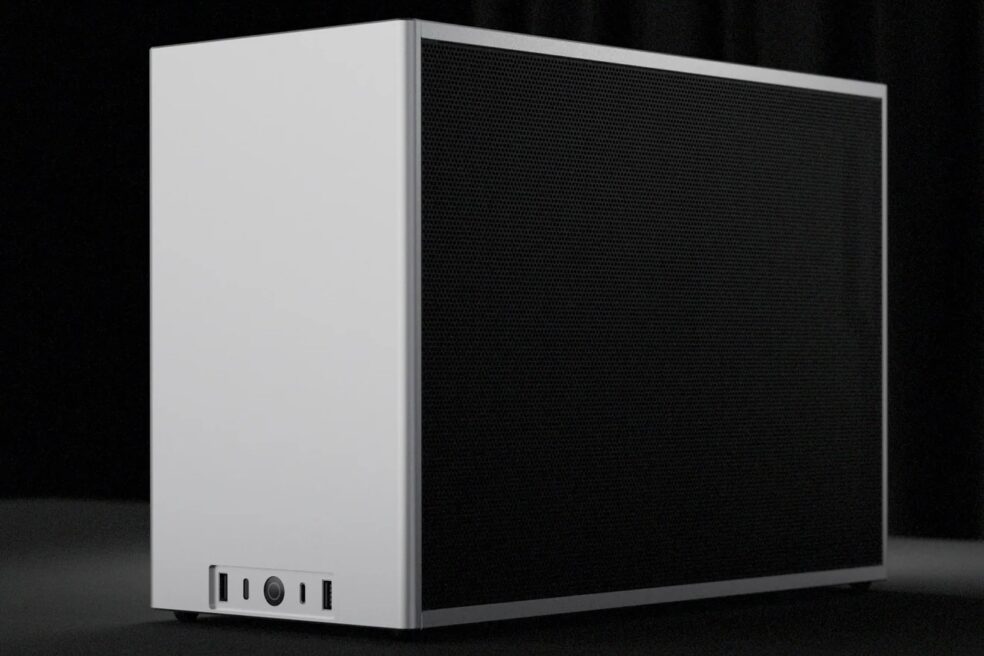

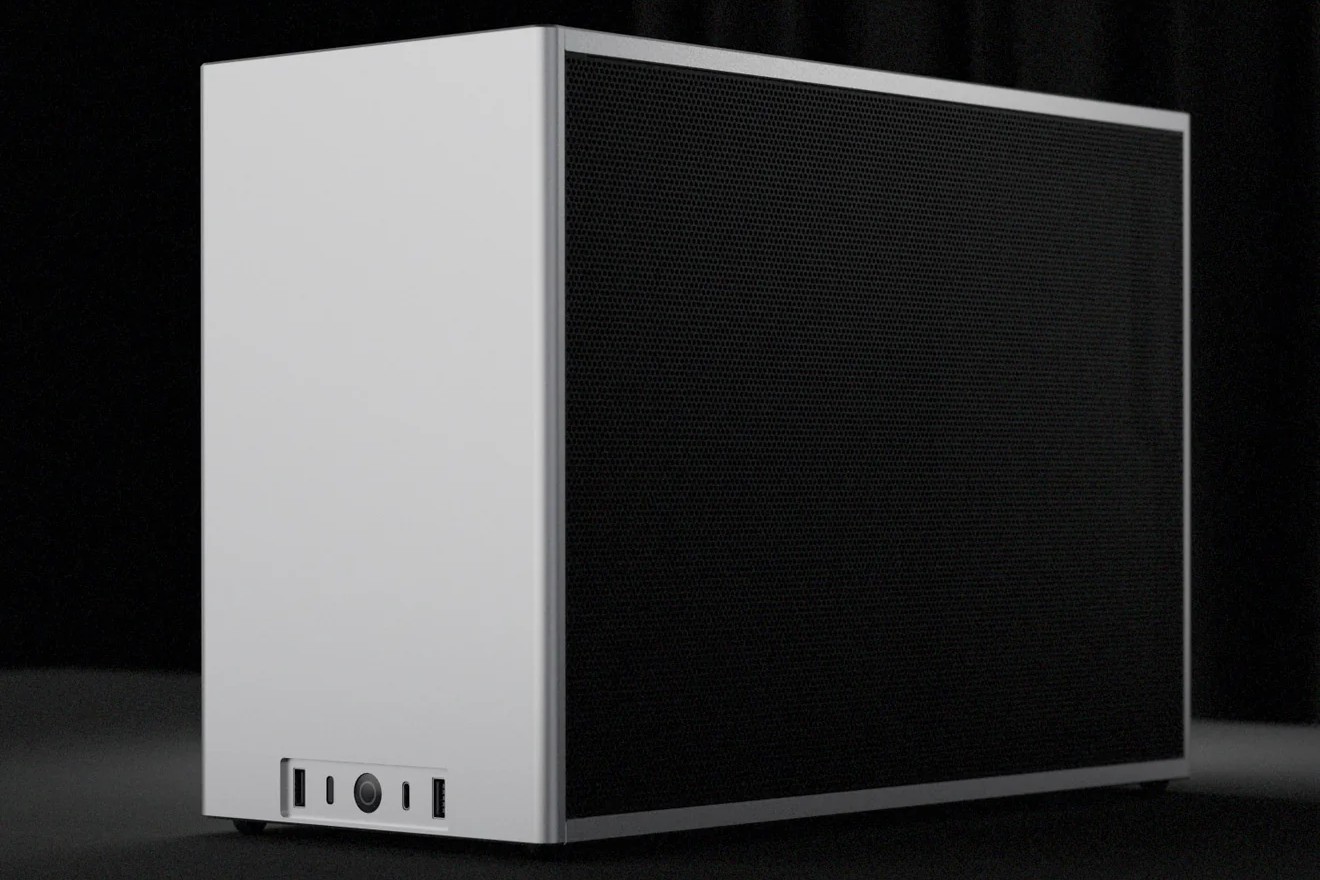

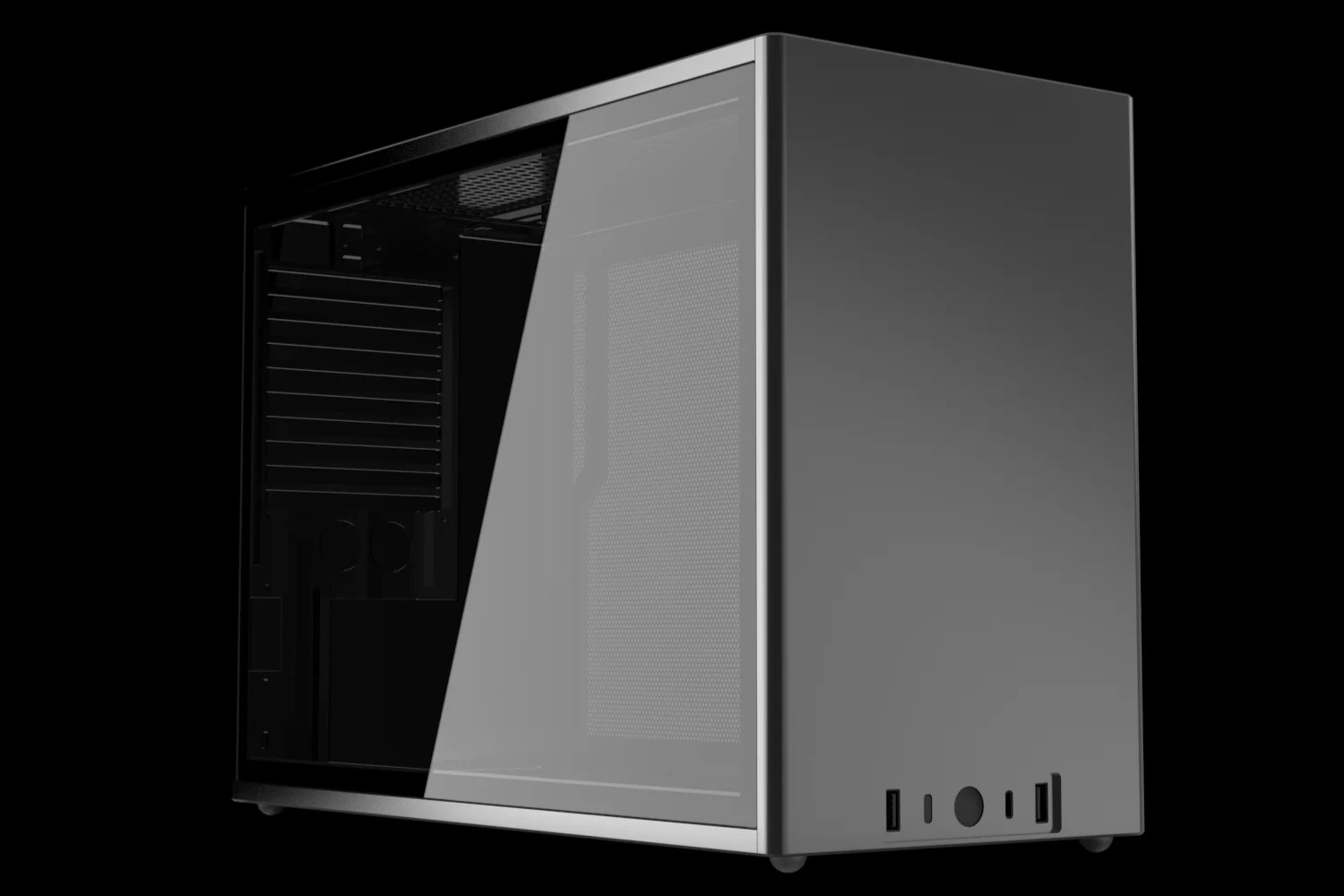

NCASE M2

The NCASE M2 is an offshoot of the M1 EVO, which wasn't well received by the SFF PC community and ultimately was discontinued. The M2 is the case we should have gotten with the M1 EVO. Pricing is competitive with similar cases and build quality is good based on overall user reviews.

View Gallery

SPECIFICATIONS

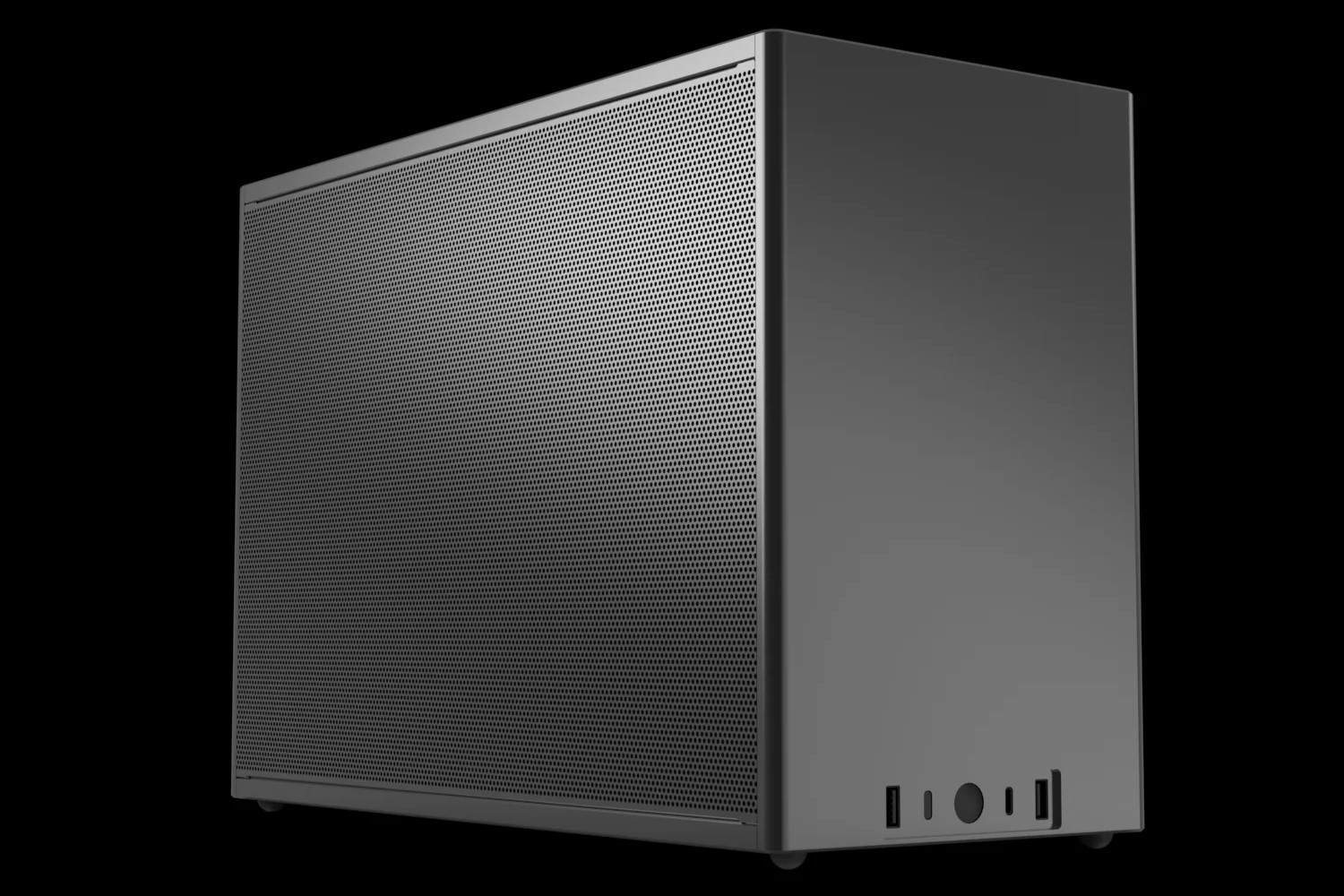

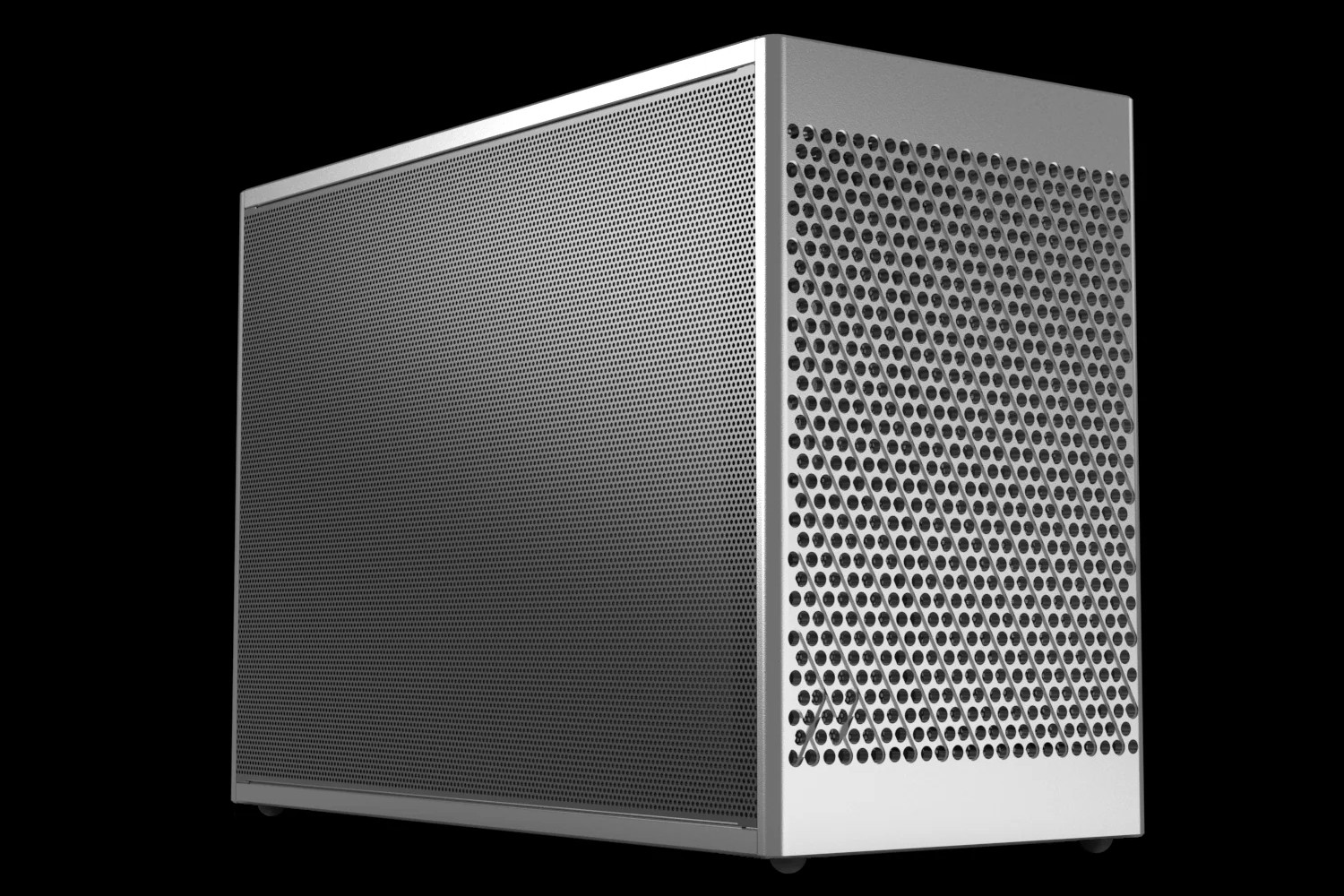

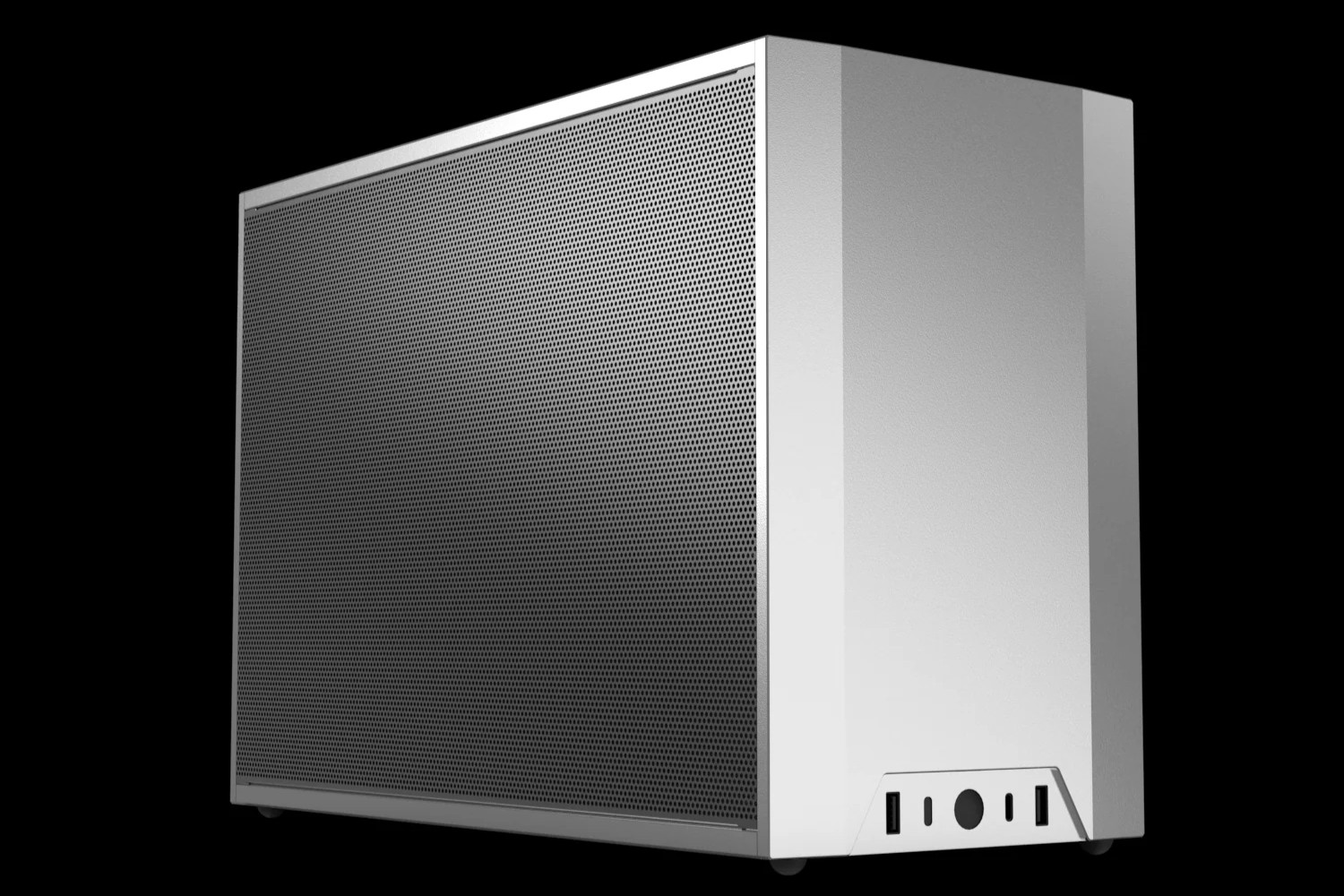

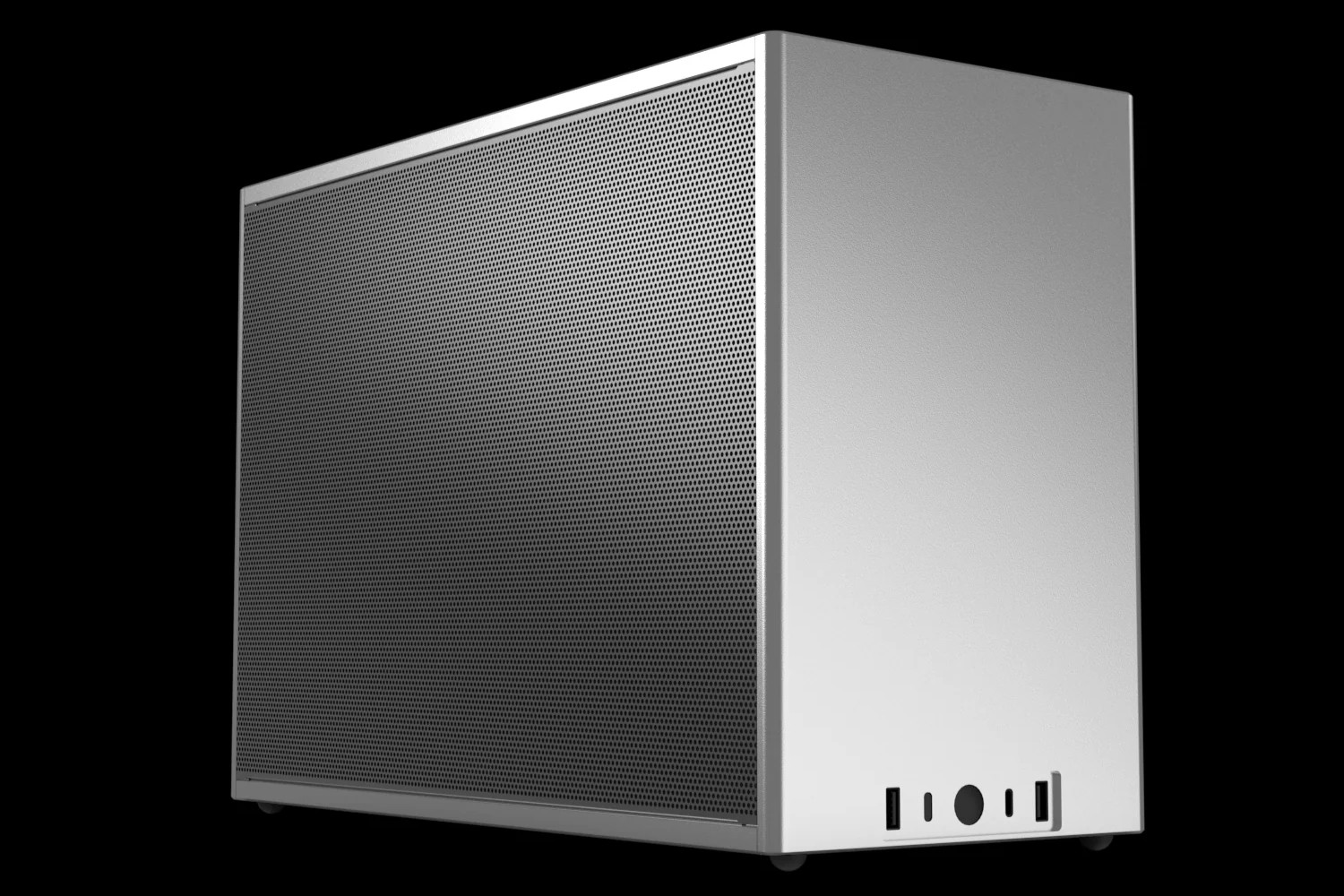

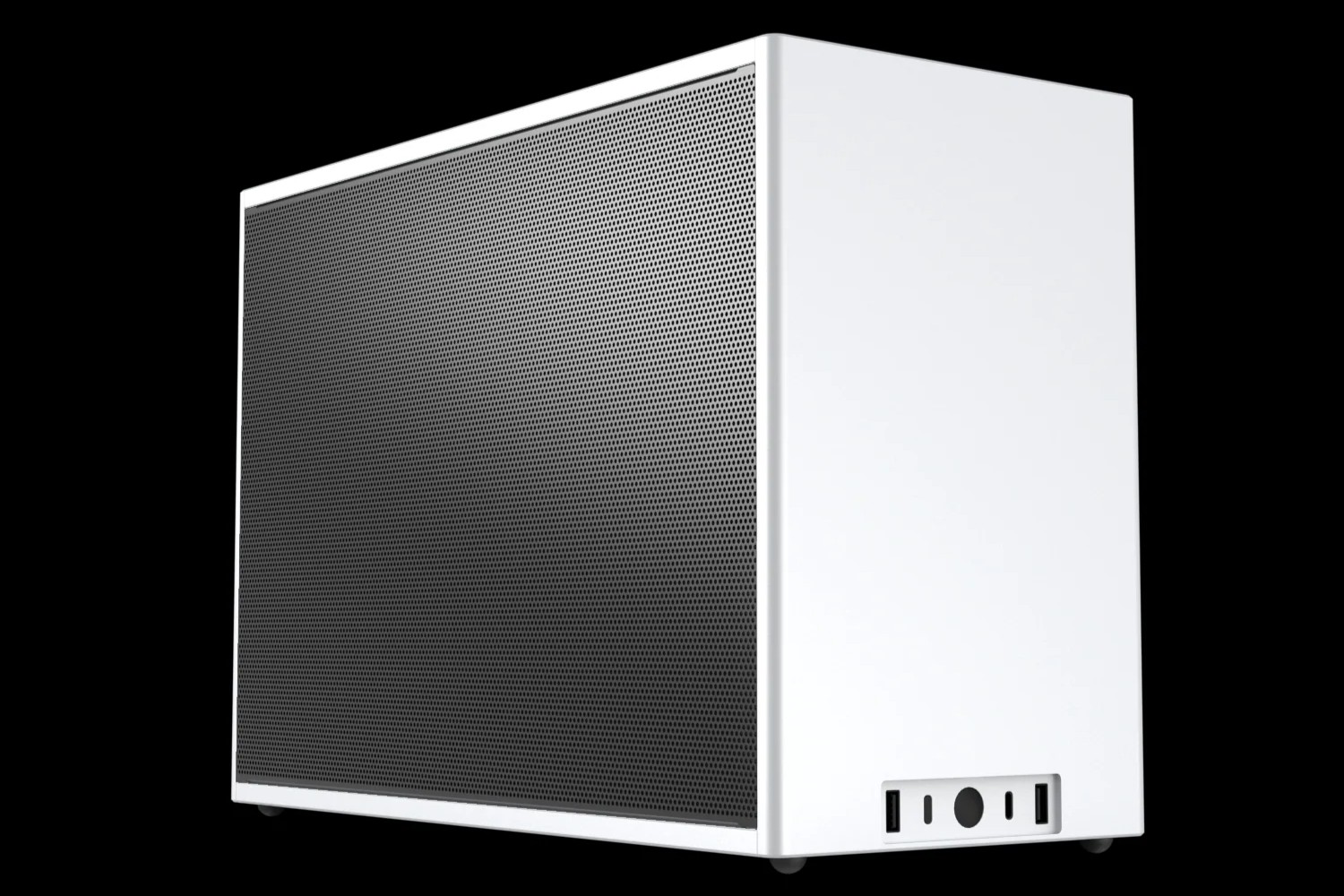

MODELS	M2-Round, M2-Grater, M2-Angle (discontinued), M2-Split (unreleased)
MATERIALS	CNC Aluminium (anodised)
DIMENSIONS	366×166×258mm (L×W×H)
VOLUME	15.67 Litres
CASE I/O	Power Button, 2x USB-A, 1x USB-C The M2-Grater does not include front USB IO.
MOTHERBOARD SUPPORT	Mini-ITX / Deep-ITX / Mini-DTX / Micro-ATX (mATX may limit hardware compatibility)

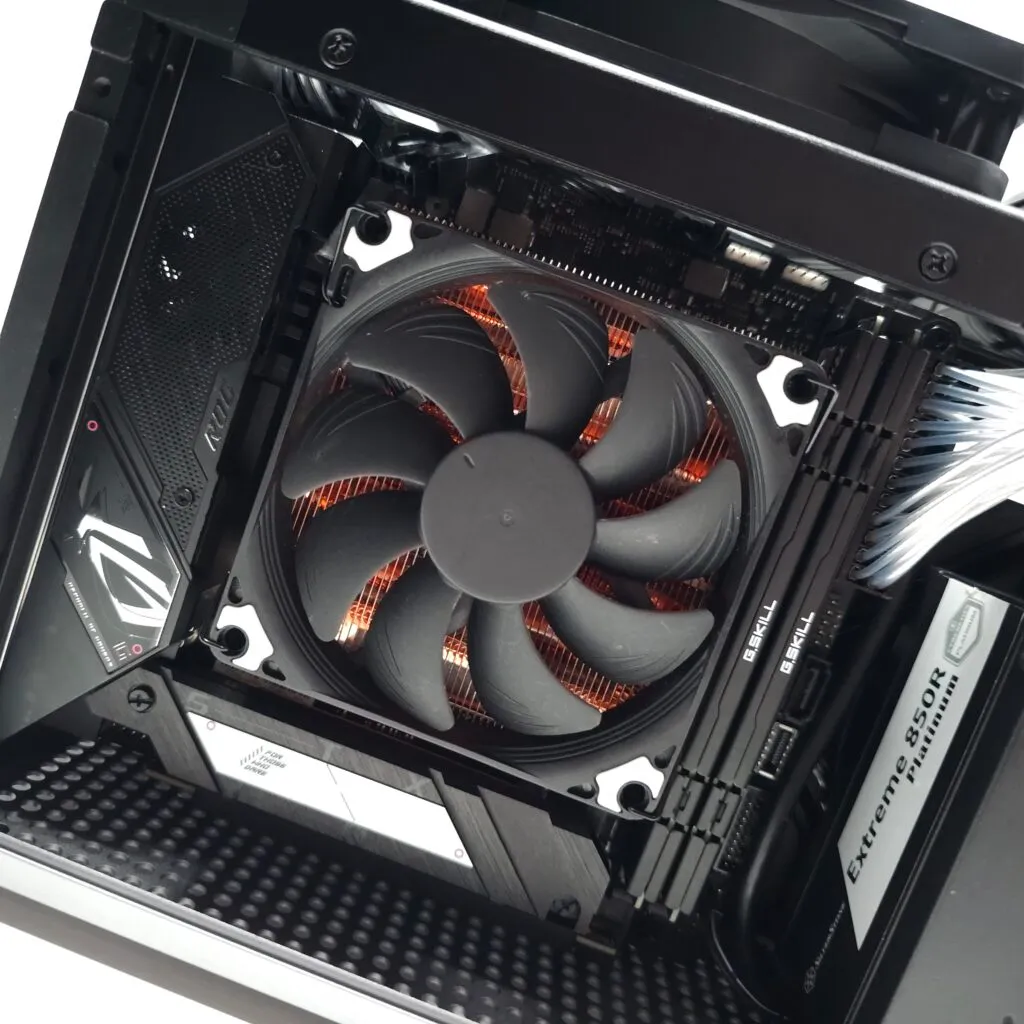

COOLER COMPATIBILITY	Classic: 144.8mm Flipped: 144.8mm VGPU: 50mm for 4-Slot graphics cards, 70mm for 3-Slot graphics cards
RISER CABLE	Classic: N/A Flipped: N/A VGPU: Riser kit sold separately
GRAPHHICS CARD COMPATIBILITY	Classic: 359mm long, 148mm tall, 4-Slots Flipped: 359mm long, 148mm tall, 4-Slots VGPU: 359mm long, 175mm tall, 4-Slots
CASE FANS SUPPORTED	2 x 120/140mm + 1 x 92mm based on components 9 case fans (8x 120mm + 1x 92mm, or 6x 140mm + 2x 120mm + 1x 92mm) can be installed with specific hardware configurations.
LIQUID COOLING SUPPORT	1x 120/140/240/280 2x 240/280 or even 3x 240/280 may be possible with specific hardware configurations.
POWER SUPPLY SUPPORT	Classic/Flipped: SFX, SFX-L, ATX (140mm) VGPU: SFX, SFX-L ATX power supplies up to 160mm long can fit with some motherboards and 3-Slot graphics cards.
2.5 + 3.5” DRIVES SUPPORTED	3x 2.5" drives based on components 1x 3.5" drives based on components 12x 2.5" drives or 8x 3.5" drives can be installed with specific hardware configurations.
CASE REVISIONS	...
