NFC S5M
”Still small. Still unapologetically premium.
But this time, a little more muscle…
A little more modular… A lot more airflow!”

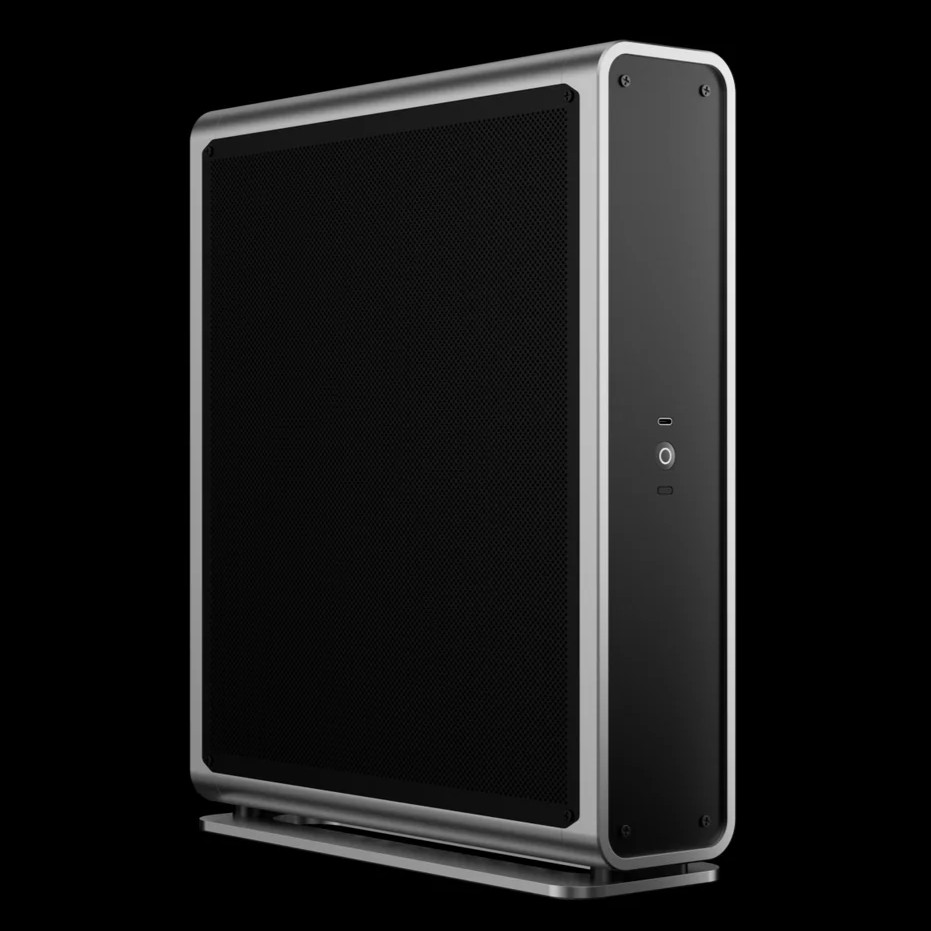

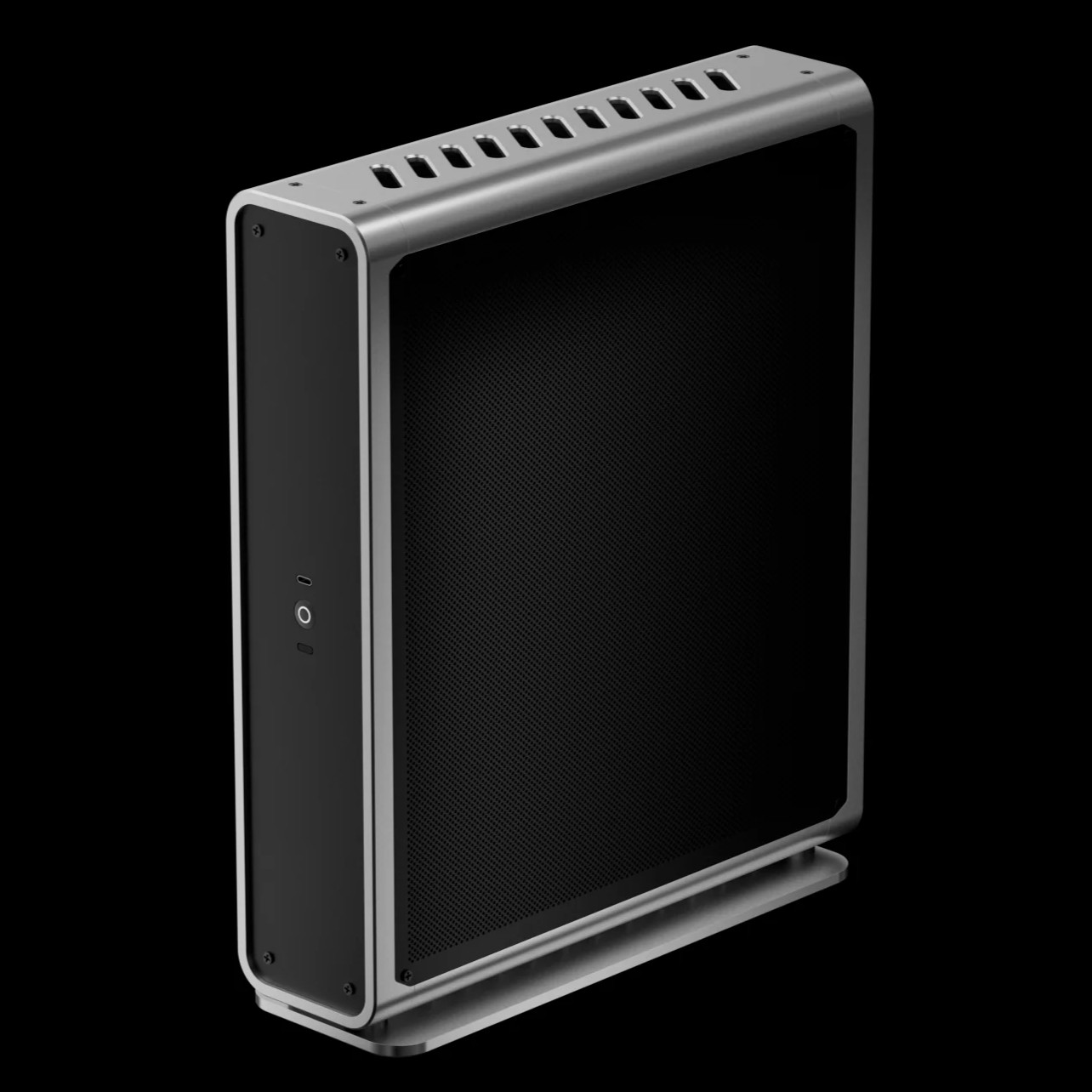

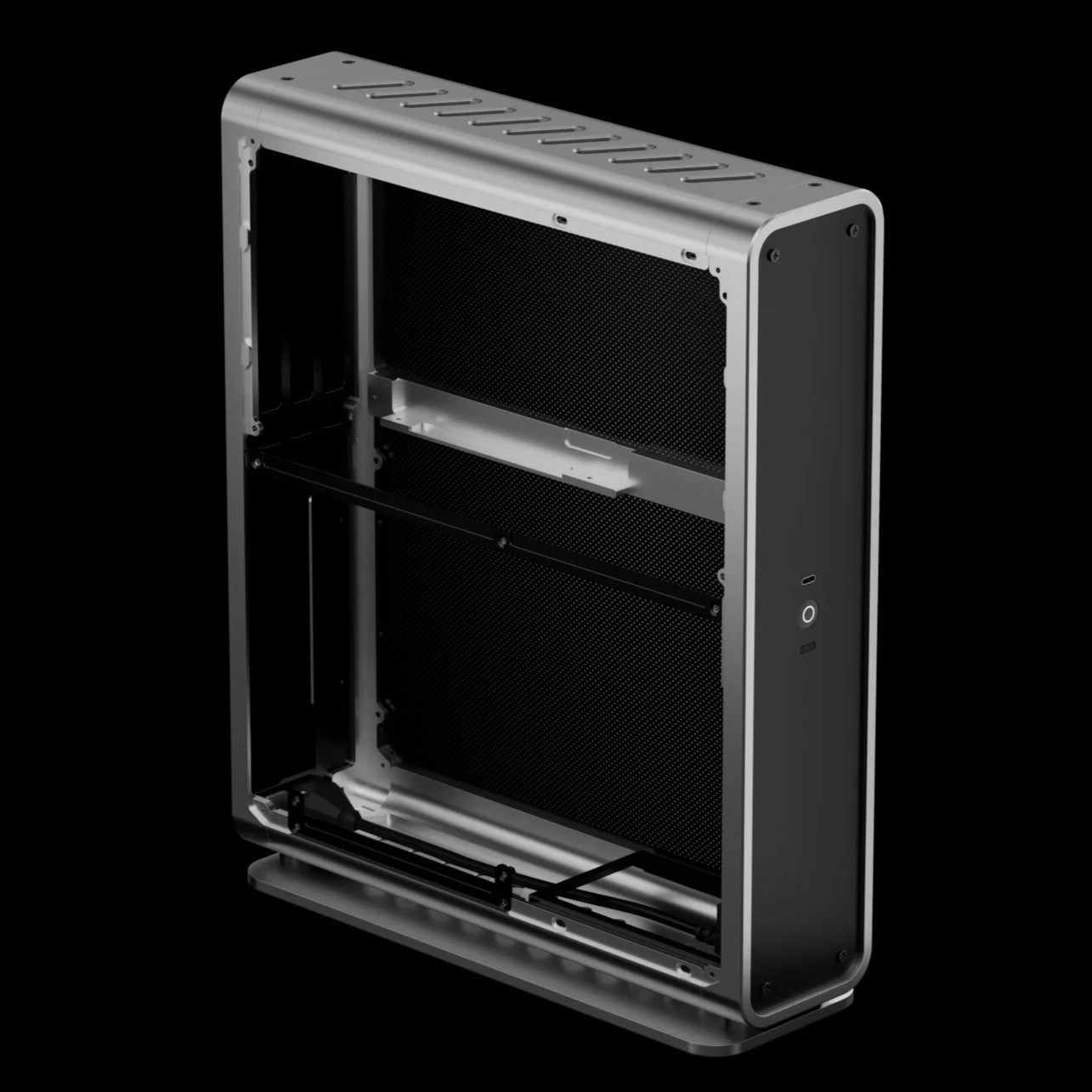

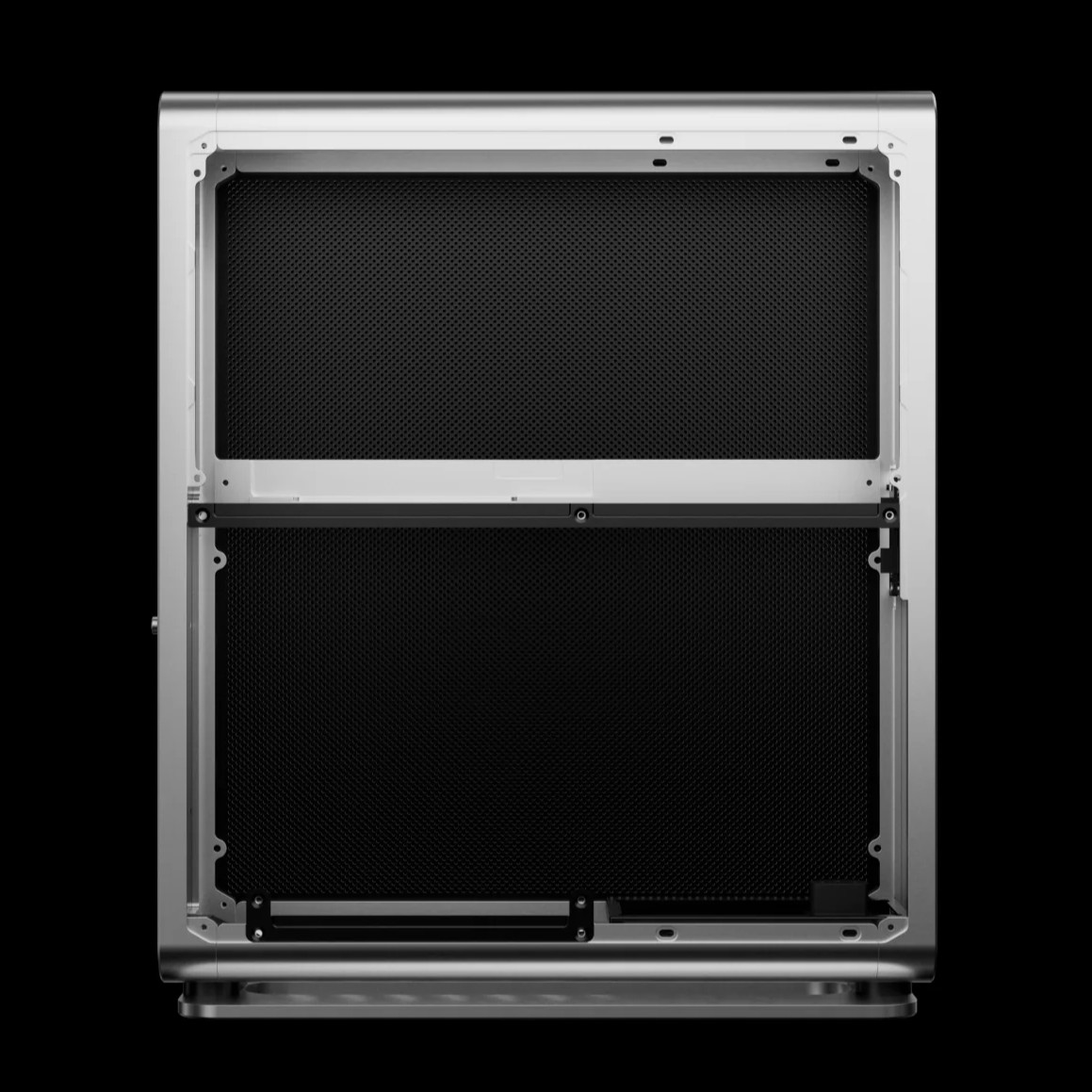

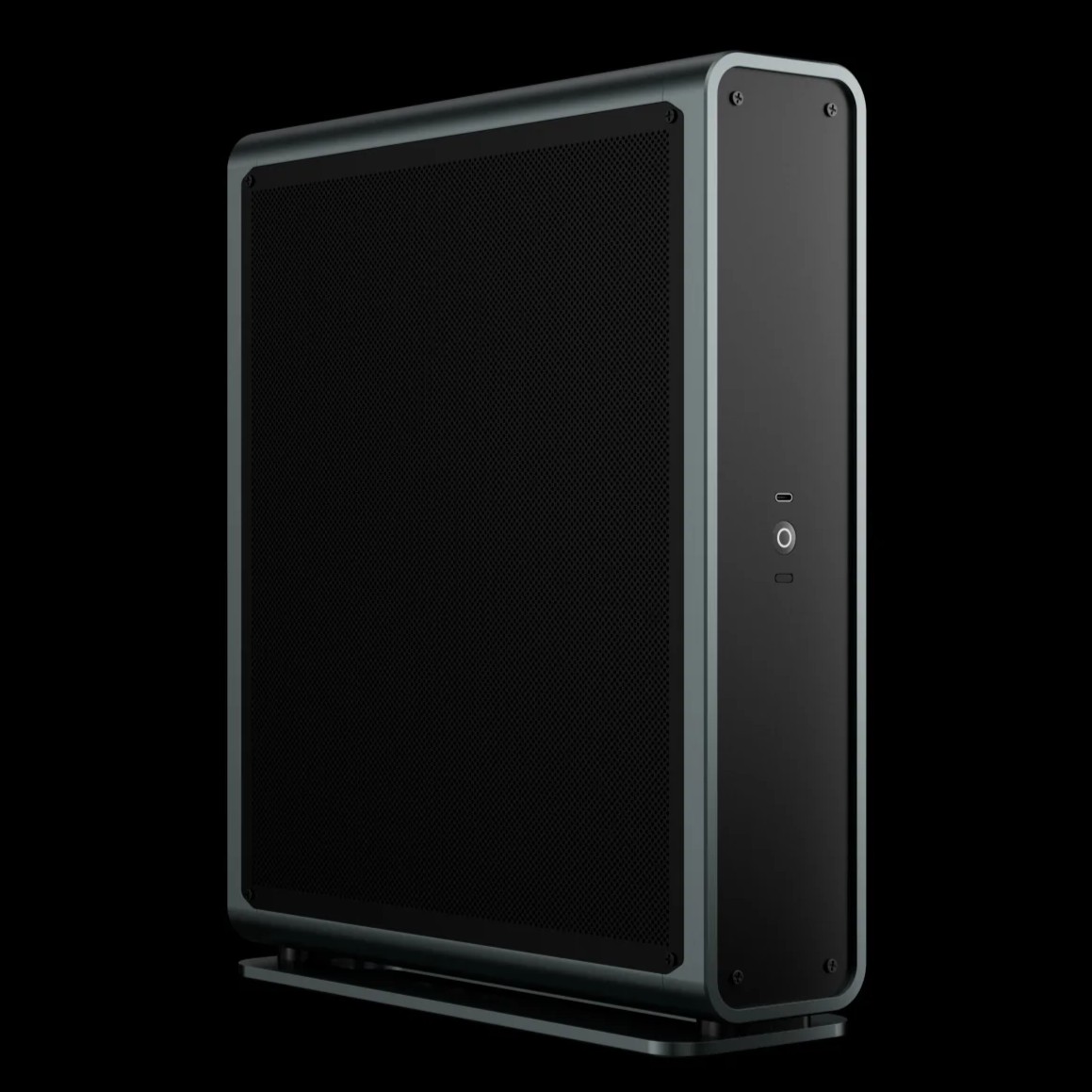

Skyreach 5 MINI is NFC Systems successor to Skyreach 4 MINI. Not From Concentrate have partnered with NCASE for manufacturing. Full case specifications are available on ncased.com. The S5M is 10L case optimised for RTX 5080/90 FE graphics cards. Other GPU’s are also supported upto 304mm long, 3-Slots wide. CPU coolers upto 66mm in height are also supported. Case pricing is between $225-$255 USD.
SPECIFICATIONS
| MATERIALS | Chassis: 3.5-25mm Aluminum, CNC Machined and Anodized Fan Bracket: 1.0mm Steel, Powder Coated Side Panels: 1.5mm Aluminum, Powder Coated |
| DIMENSIONS | 318×86x368mm (L×W×H without stand/protrusions/screws) |
| VOLUME | 10 Litres (without stand/protrusions/screws) |
| CASE I/O | Power Button, 1x USB Type-C |
| MOTHERBOARD SUPPORT | Mini-ITX |
| CPU COOLER CLEARANCE | 66mm |
| GRAPHHICS CARD COMPATIBILITY | 3 slot, 304mm length & 123mm height |
| LIQUID COOLING SUPPORT | NONE |
| CASE FANS SUPPORTED | 2x 120mm (requires seperate fan bracket not included) |
| POWER SUPPLY COMPATIBILITY | SFX / SFX-L |
| 2.5 / 3.5” DRIVES SUPPORTED | 1x 2.5″ (based on components) |
| COLOURS | Black, Silver & Gunmetal |
There are some areas of note with the S5M. There is no mounting for 120/140mm case fans on GPU side as no fan bracket is included or available despite being included in case specifications.

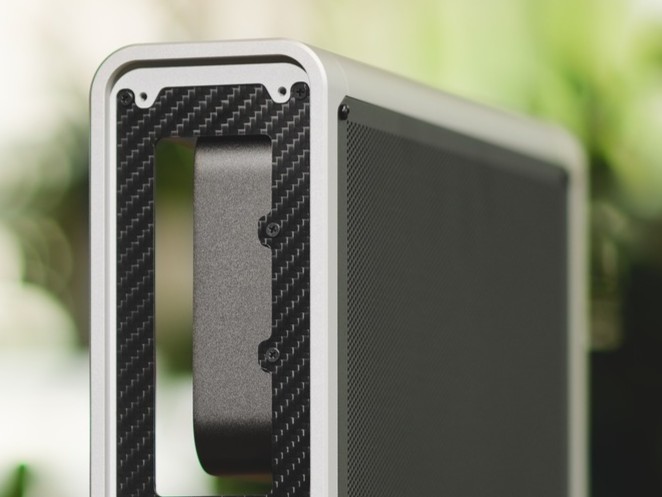

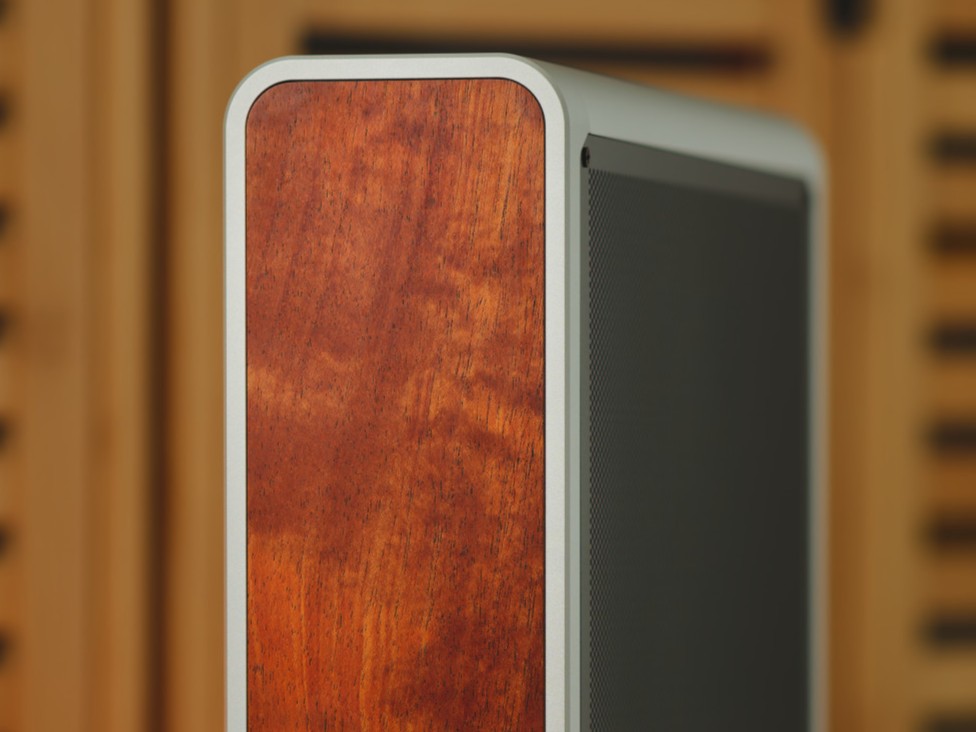

S5M does not use countersunk mounting for external case screws causing the screws to protrude on the front faceplate and side panels. The stock faceplate is also recessed into the front of the case causing noticeable bezel. This can be addressed with custom faceplates, but at notable extra cost depending on your location.
