// Community Build

MESHROOM S V2 (ATX LC)

17.35L · VERT-SANDWICH · 4-SLOT MODE
By L91 Feb 4, 2026 ssupd Meshroom S V2 (with extender bracket)
View Case DB View Case in 3D All Builds
Case ssupd Meshroom S V2 (with extender bracket)
Colour Black
Layout / Mode 4_slot_mode
Observed Fitment Standard Fit
Submitted Configuration

Hardware

8 installed
Motherboard Manual
MSI MAG B650 TOMAHAWK WIFI
Memory (RAM)
G.Skill Flare X5
Graphics Card
Nvidia RTX 5080 16GB GDDR7 Founders Edition (304x40mm)
Processor
AMD 7800X3D (AM5)
CPU Cooler Manual
Modultra LOBO
AIO / Radiators Manual
Alphacool NexXxoS ST20 240
Case Fans Manual
2x Noctua NF-A12 Chromax, 2x SilverStone Air Slimmer 140
Power Supply
Corsair SF1000 Platinum ATX 3.1 (1000W)
Real-World Evidence

Fitment

Builder supplied
Observed Outcome Standard Fit

Reported from this completed Build. Community evidence is advisory and does not replace published component or case specifications.

From the User

Build Notes

First-hand notes

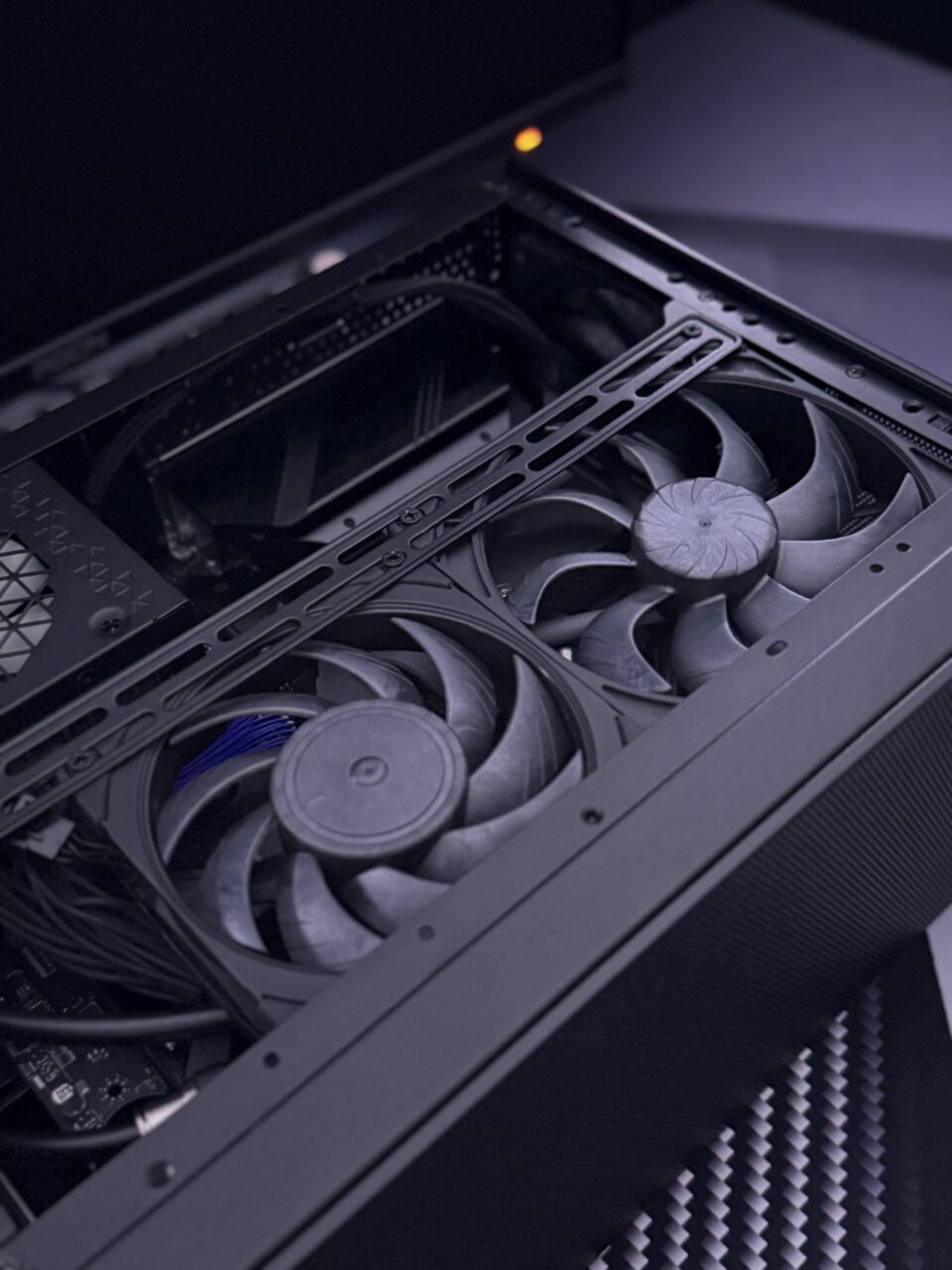

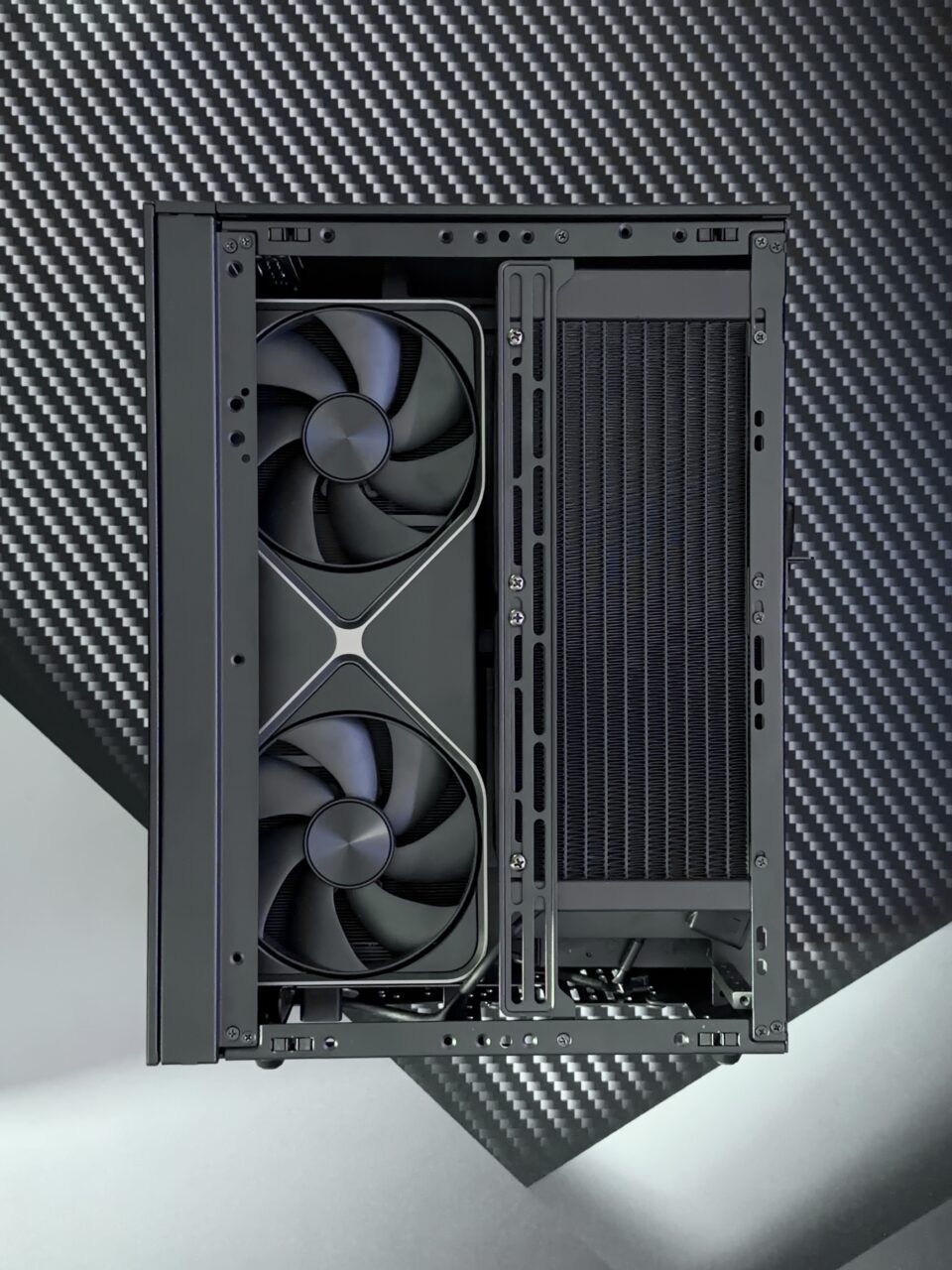

ATX meets SFF 🫶 dense 16.5L build fitting MSI B650 Tomahawk ATX motherboard. Nvidia RTX 5080 FE, 240x20mm radiator with 2x NF-A12 Chromax.black fans cooling the R7 7800X3D. Corsair SF1000 2024 with custom black low-profile cables. 2x 140 Air Slimmer case fans located at top and bottom-front of the case. I used 290mm coaxial style straight 180 degree riser cable from Velkase, which is unfortunately no longer available. It’s tight…
