NFC S5M
''Still small. Still unapologetically premium.
But this time, a little more muscle...
A little more modular... A lot more airflow!''
View Gallery

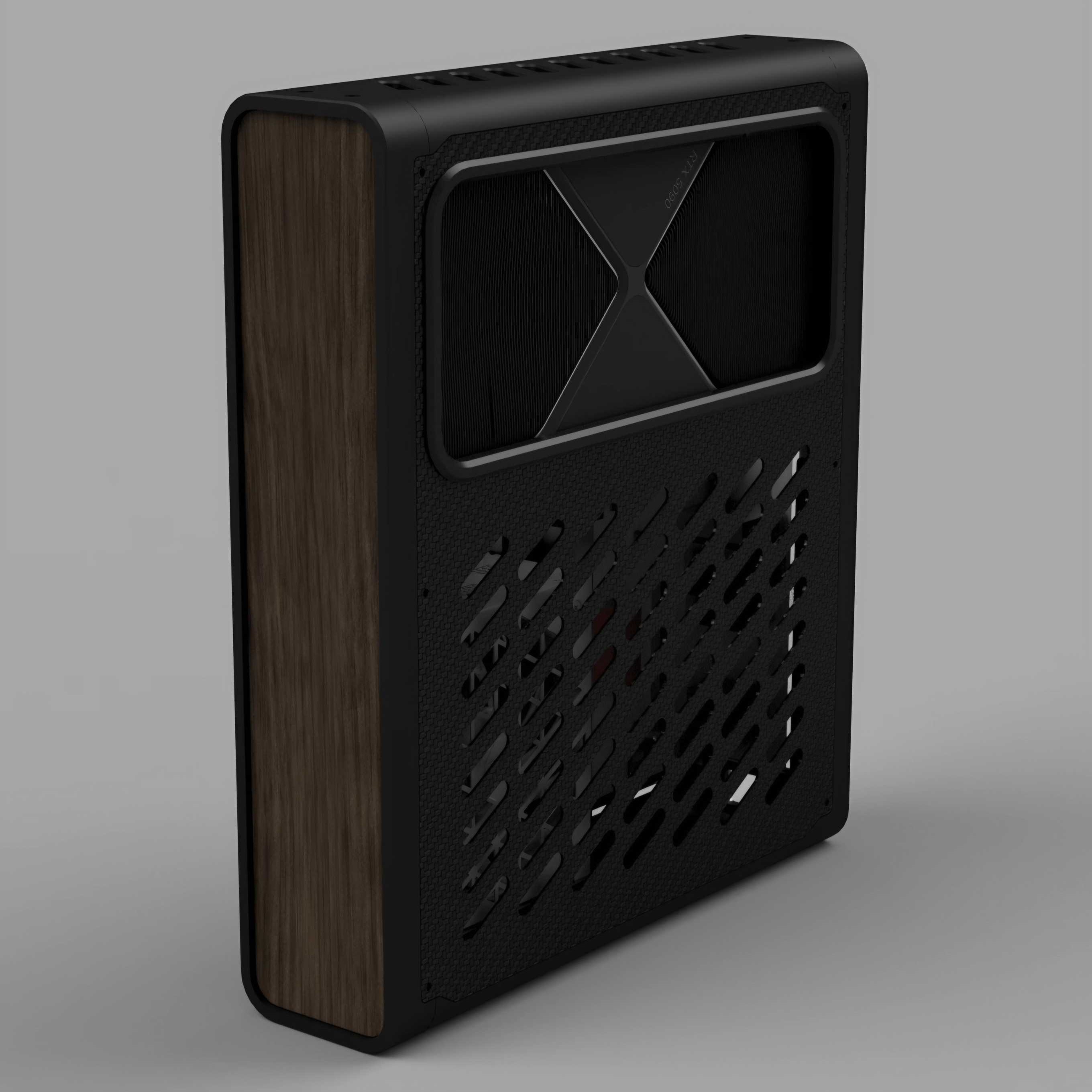

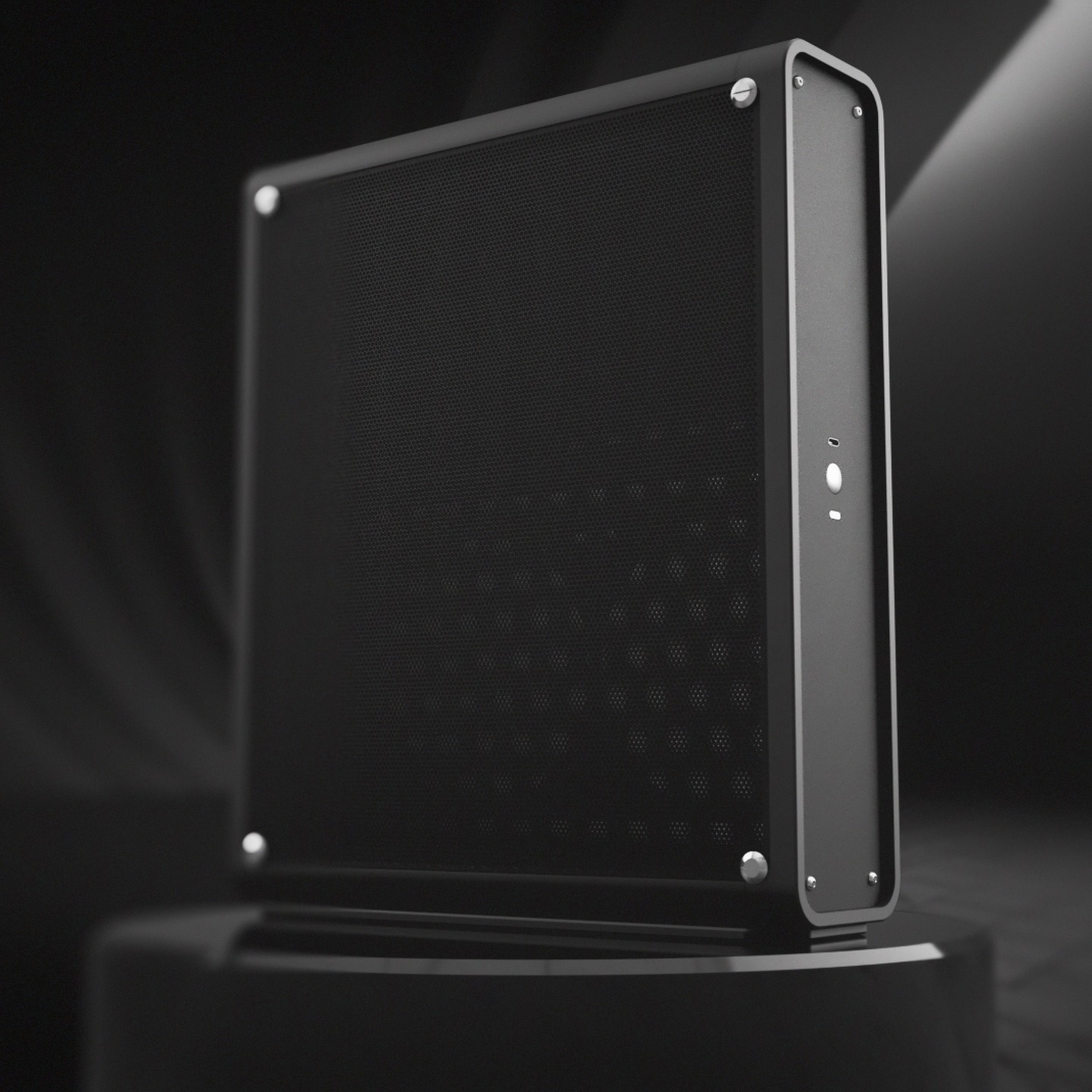

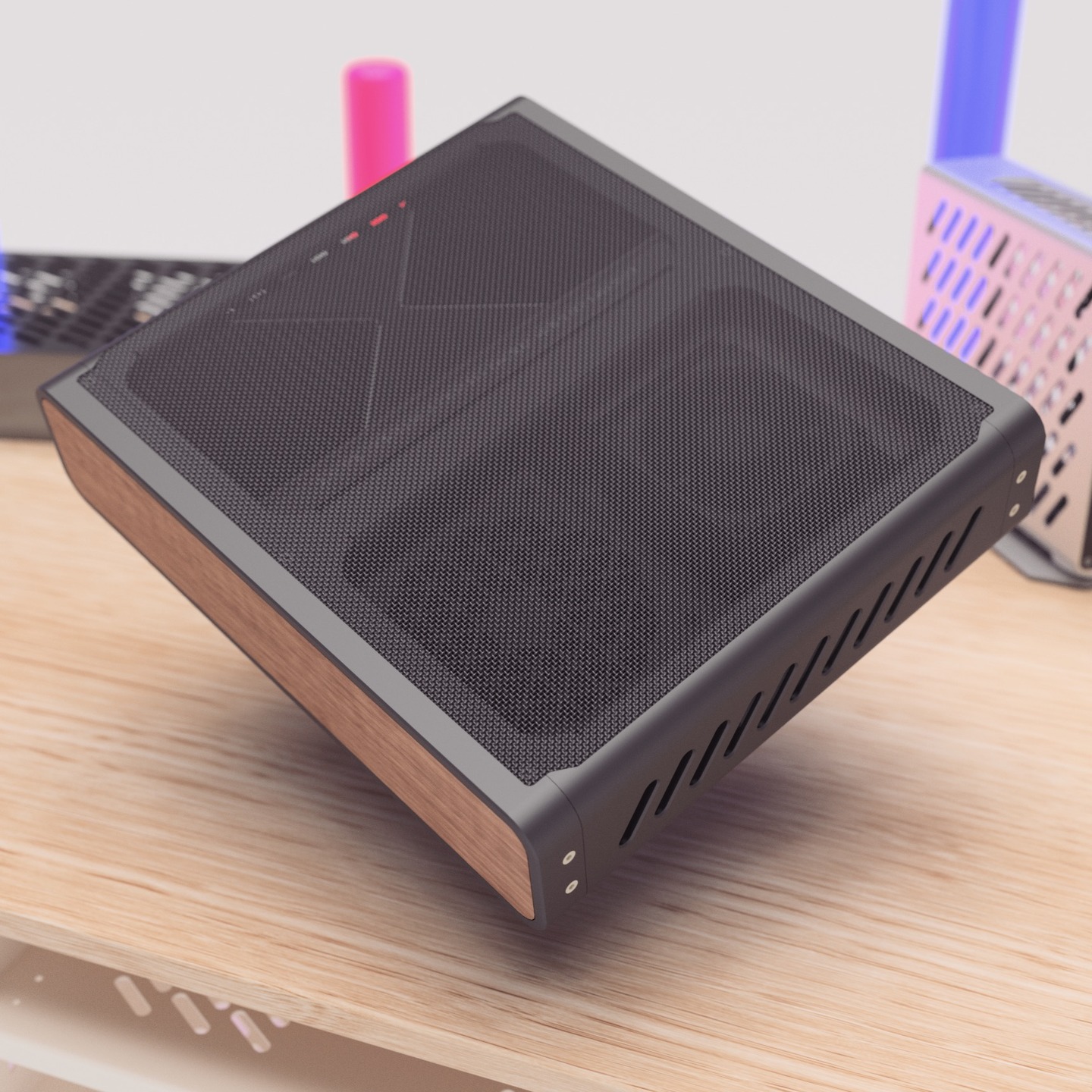

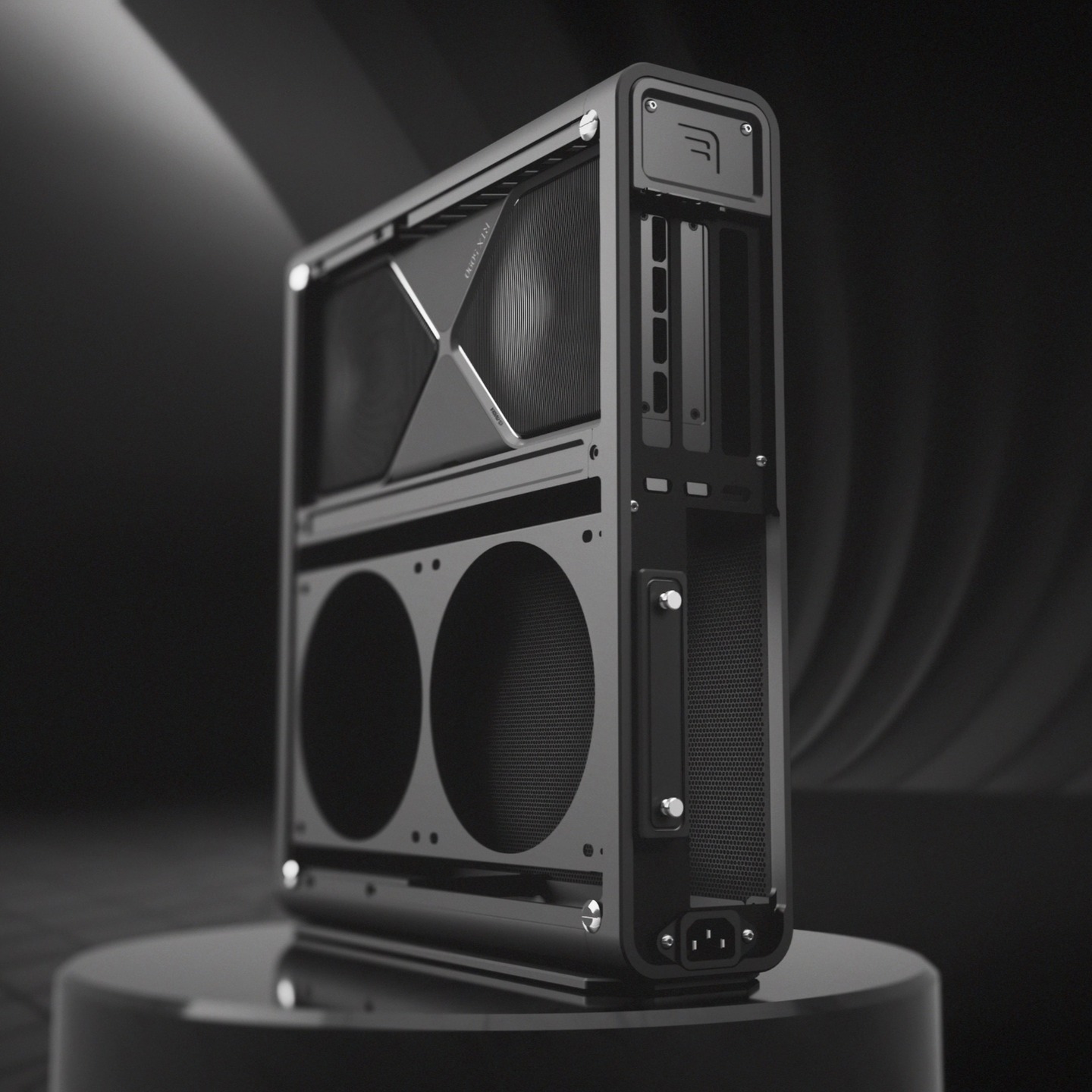

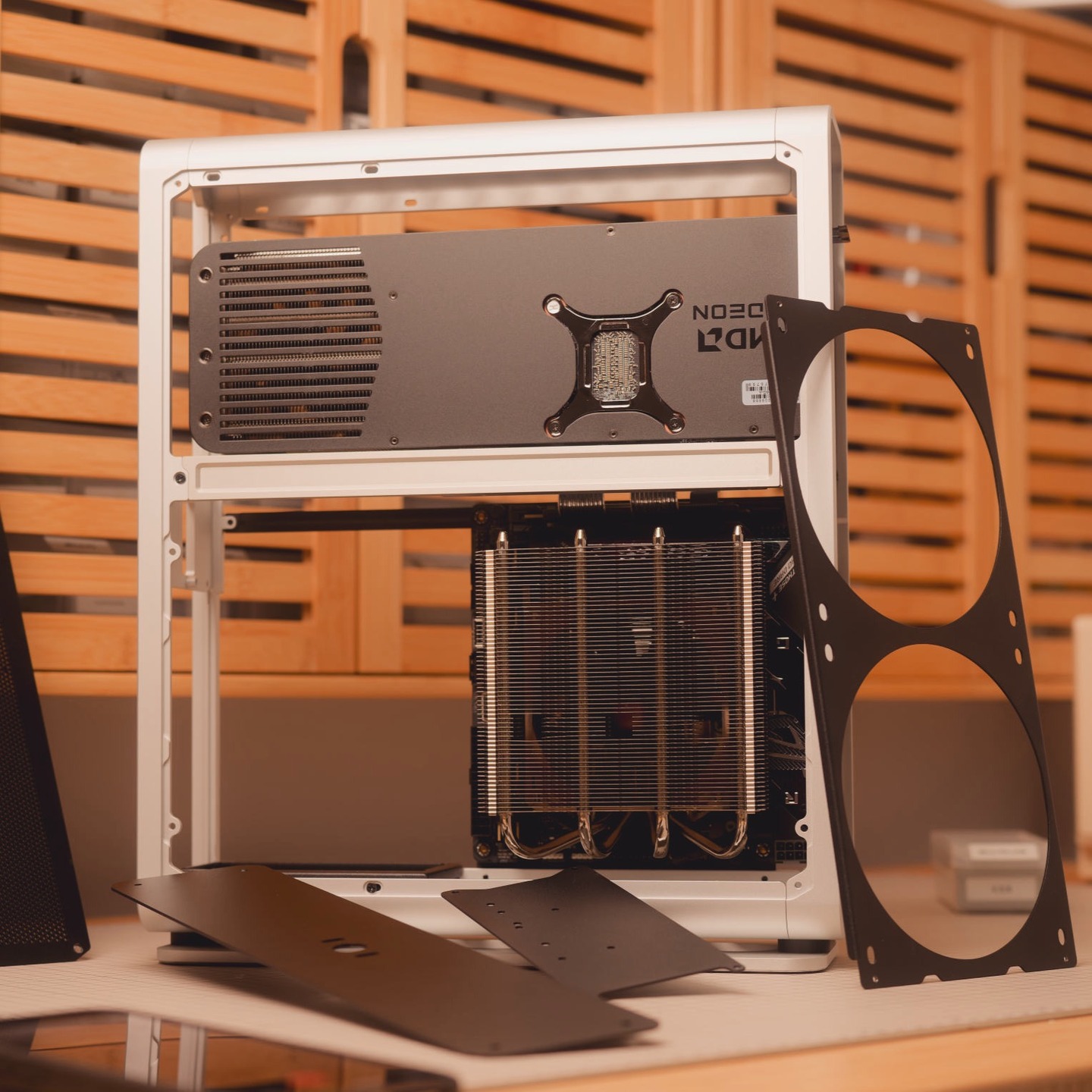

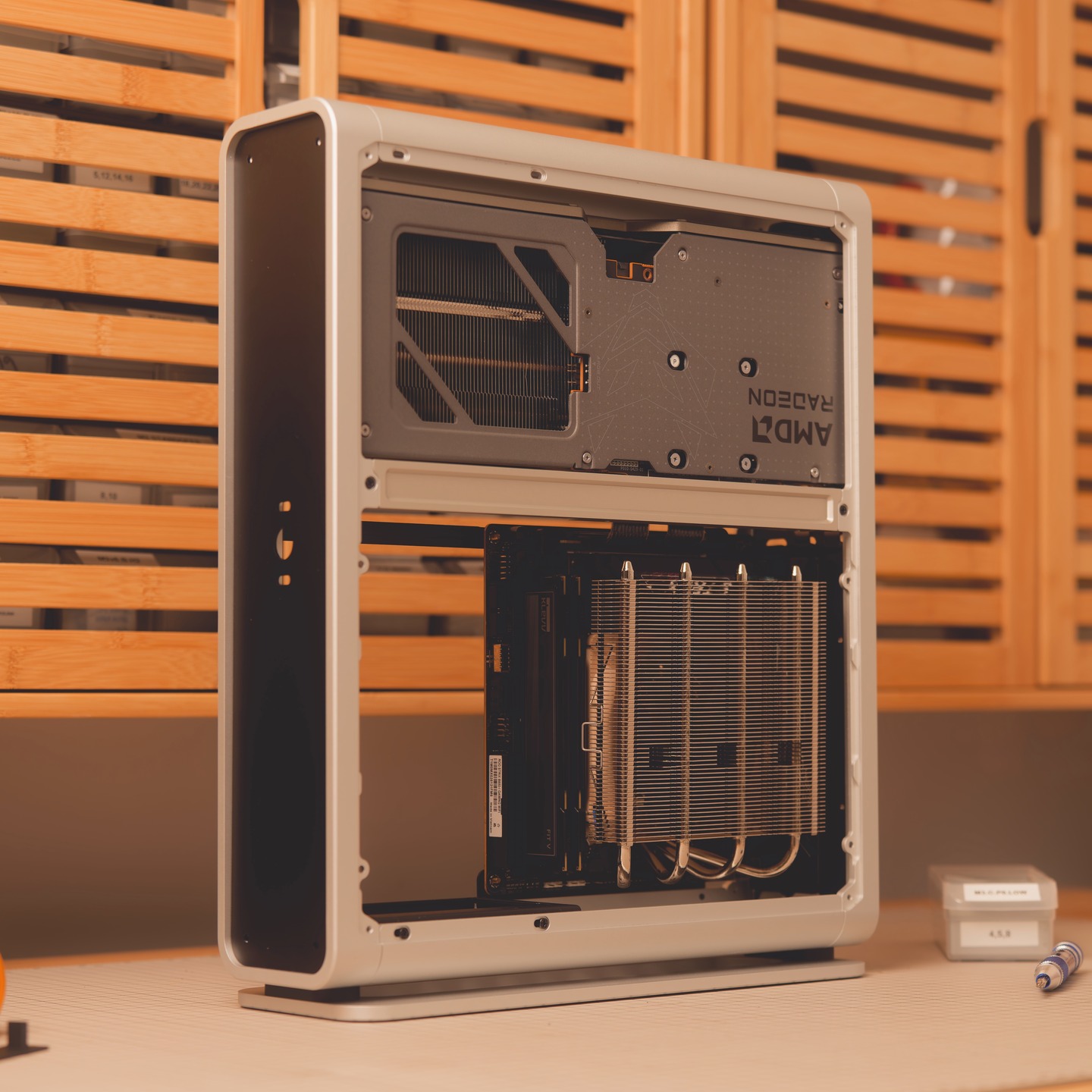

Skyreach 5 MINI is NFC Systems successor to Skyreach 4 MINI. Not From Concentrate have partnered with NCASE for manufacturing. Full case specifications are now available on ncased.com. The S5M is 10L case optimised for RTX 5080/90 FE graphics cards. Other GPU's are also supported upto 304mm long, 123mm tall & 3-Slots wide. CPU coolers upto 66mm in height are also supported. Case pricing is between $225-$255 USD as per NCASE product page.
SPECIFICATIONS
MATERIALS
Chassis: 3.5-25mm Aluminum, CNC Machined and Anodized
Fan Bracket: 1.0mm Steel, Powder Coated
Side Panels: 1.5mm Aluminum, Powder Coated
DIMENSIONS
318×86x368mm
(L×W×H without stand/protrusions/screws)
VOLUME
10 Litres
(without stand/protrusions/screws)
CASE I/O
Power Button, 1x USB Type-C
MOTHERBOARD SUPPORT
Mini-ITX
CPU COOLER CLEARANCE
66mm
GRAPHHICS CARD COMPATIBILITY
3 slot, 304mm length & 123mm height
LIQUID COOLING SUPPORT
NONE
CASE FANS SUPPORTED
2x 120mm (based on components)
POWER SUPPLY COMPATIBILITY
SFX / SFX-L
2.5 / 3.5” DRIVES SUPPORTED
1x 2.5" (based on components)
COLOURS
Black, Silver & Gunmetal
