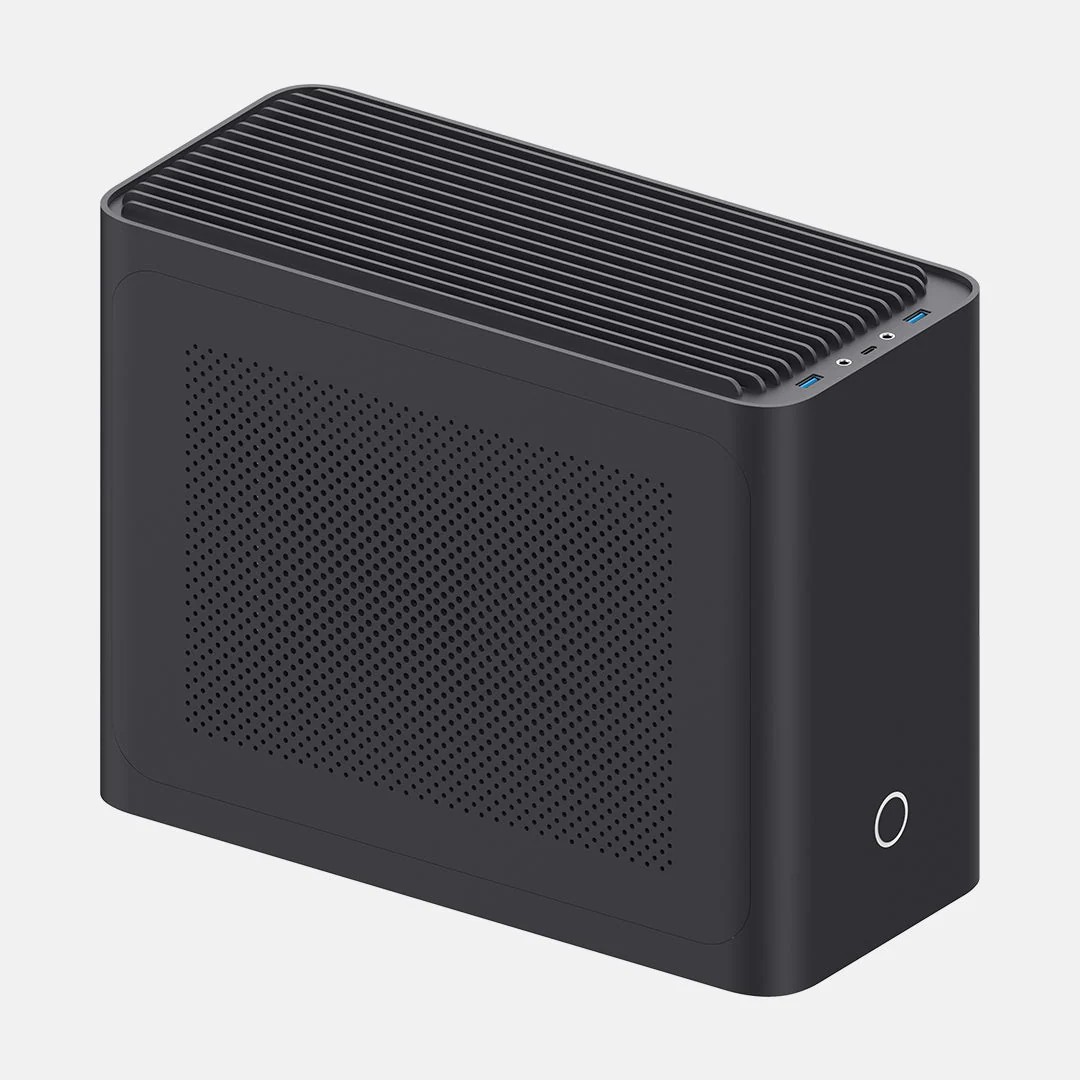

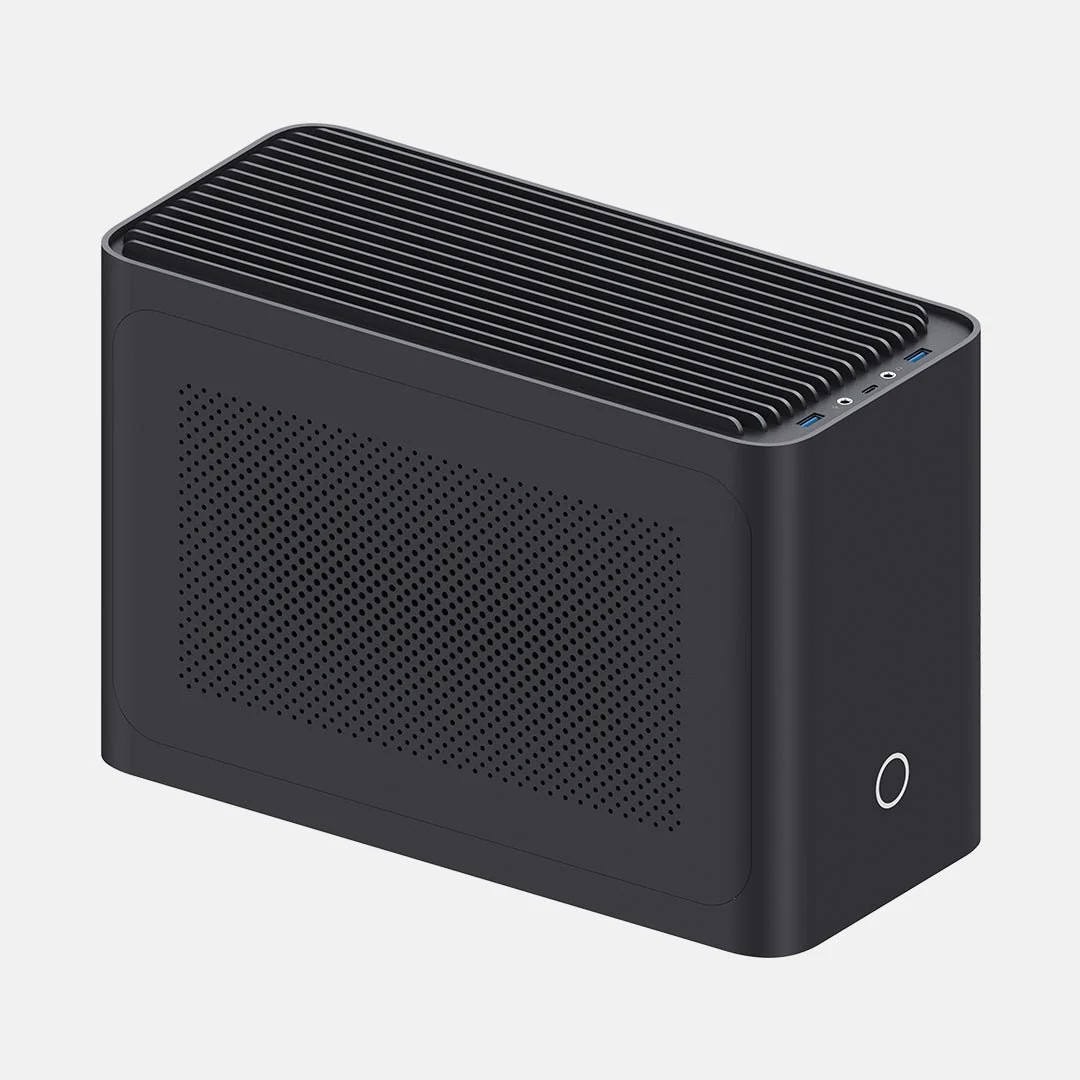

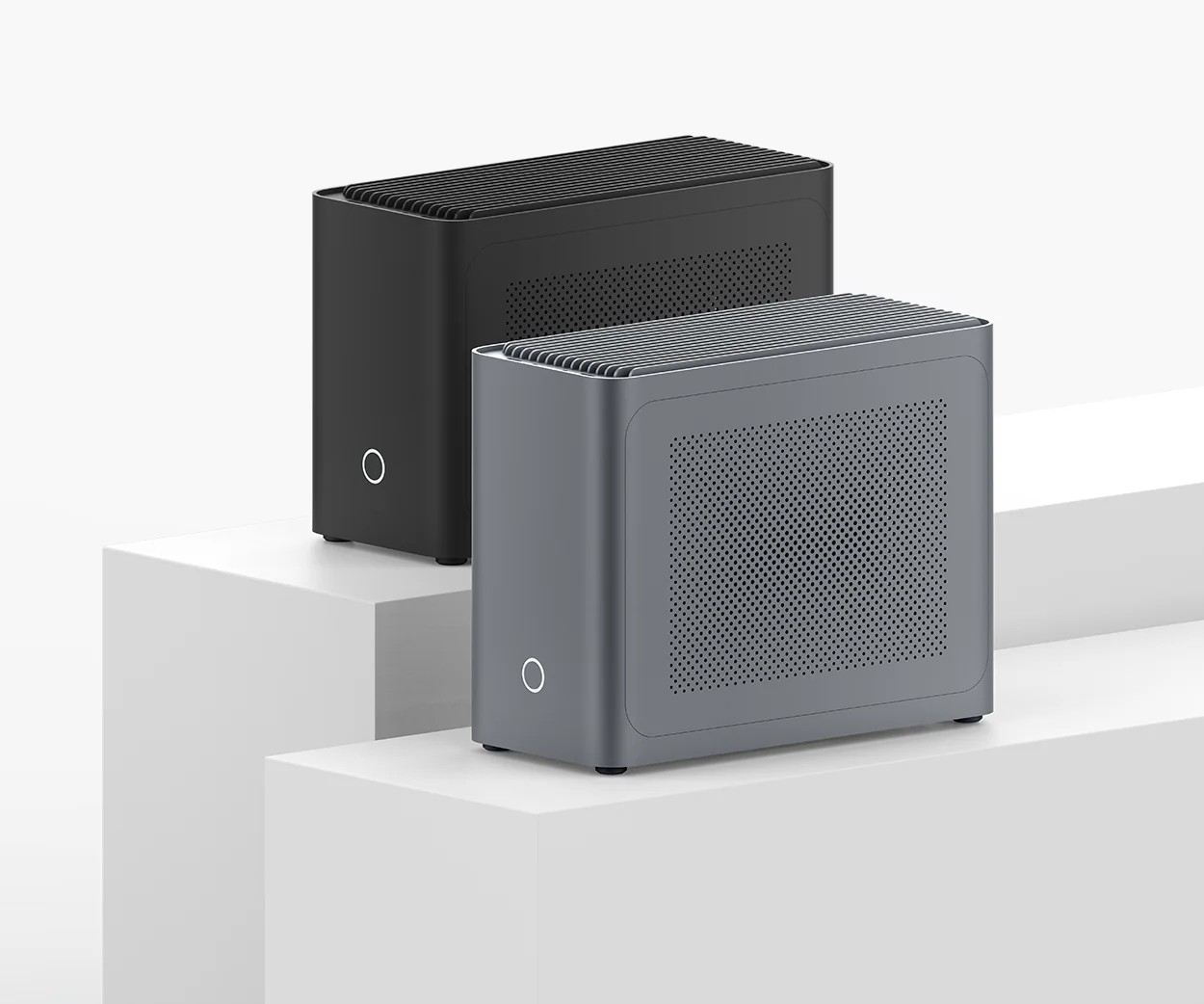

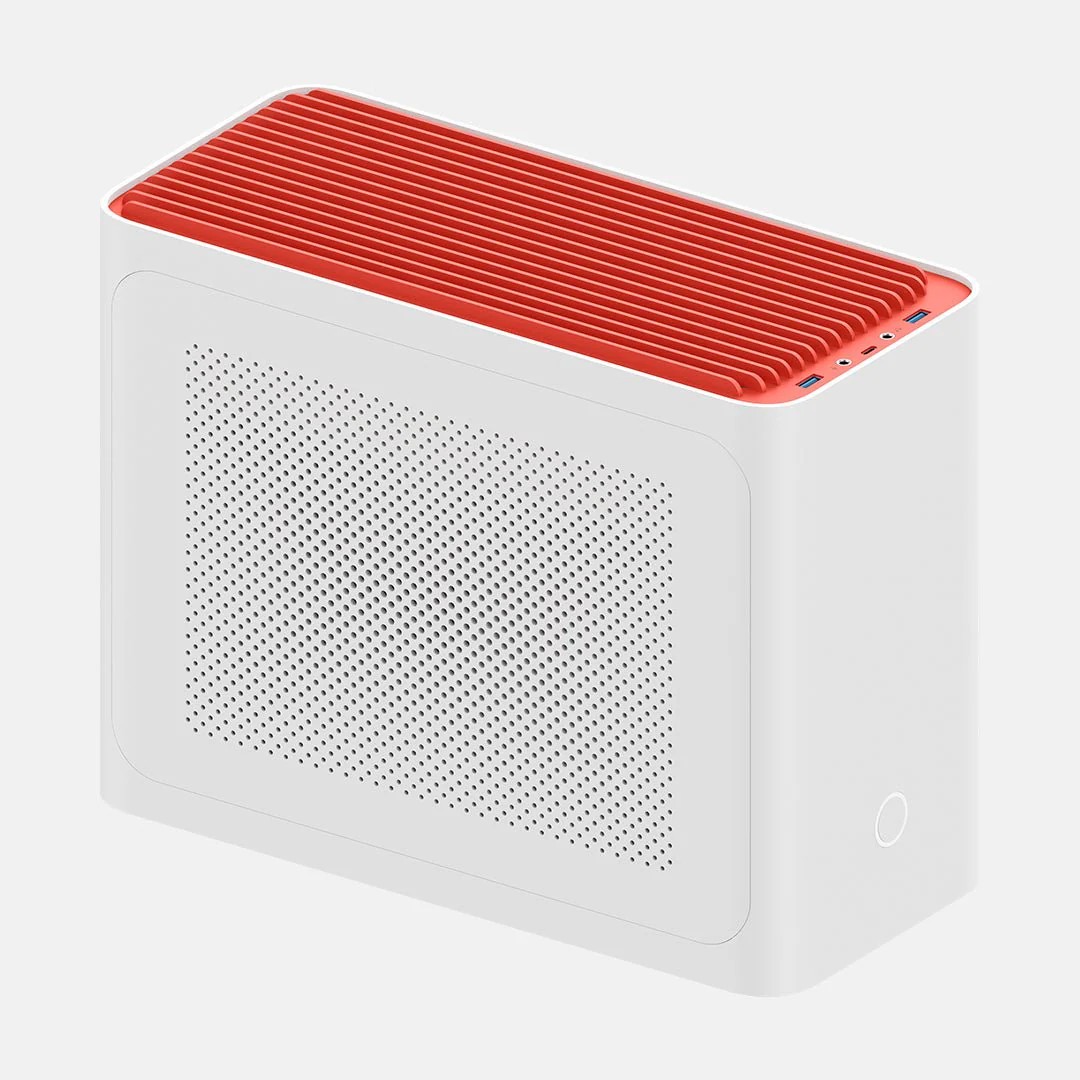

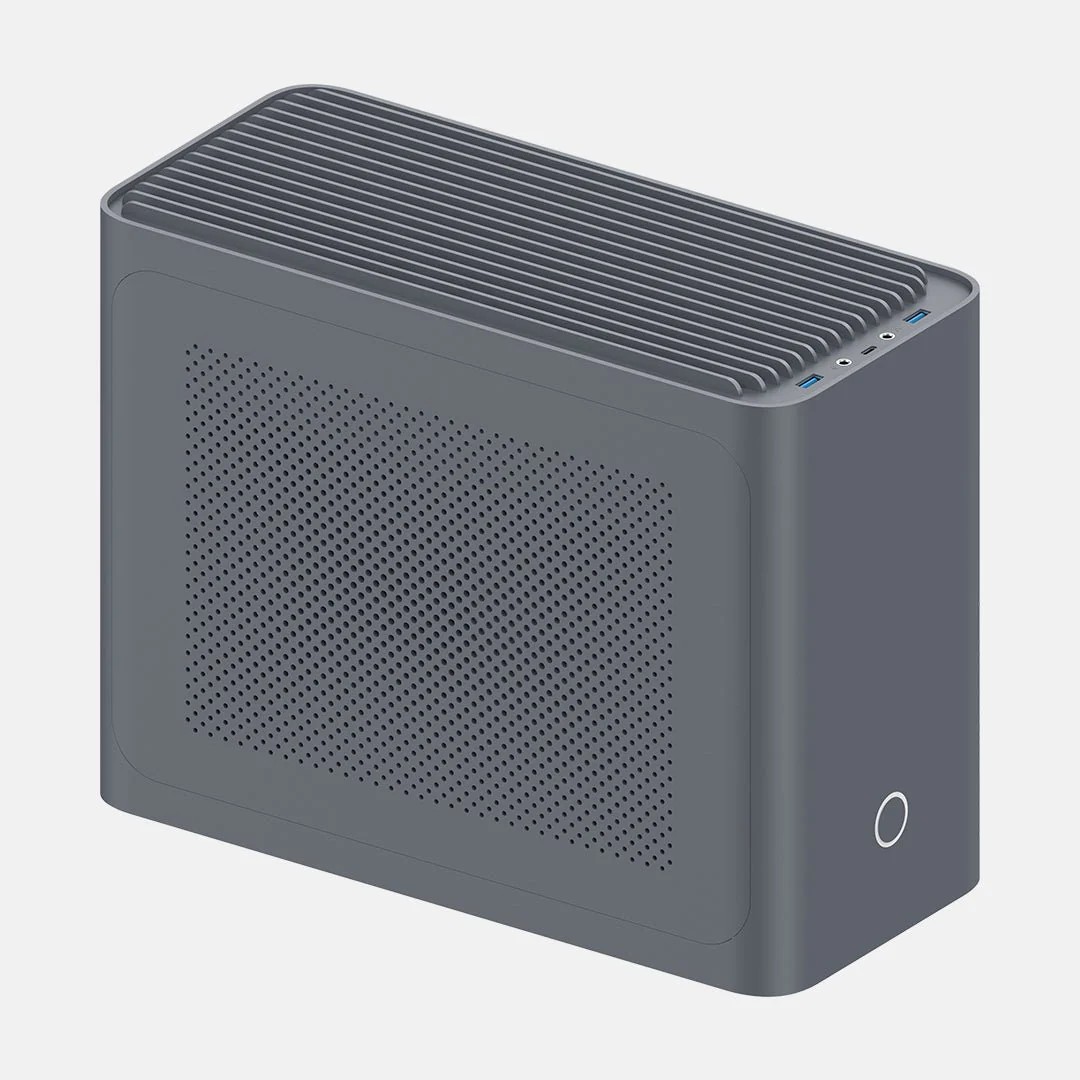

IQUNIX ZX-1
The ZX-1 is aluminium unibody frame Mini-ITX case starting 9.2L internal volume for the air cooling version and 10.6L for the liquid cooling version. Case pricing starts at US$219 and ships to most countries. Use our IQUNIX store affiliate link and code ITX-L91 at checkout for $20 saving.
SPECIFICATIONS
| MODEL | AIR COOLING | LIQUID COOLING |
| MATERIALS | Cast Aluminium | Cast Aluminium |
| DIMENSIONS | 330×149×217mm (L×W×H) | 330×149×250mm (L×W×H) |
| VOLUME | 9.2 Litres (internal) | 10.6 Litres (internal) |
| CASE I/O | Power Button, HD Audio, USB Type-C, 2x USB 3.0 Type-A | Power Button, HD Audio, USB Type-C, 2x USB 3.0 Type-A |
| MOTHERBOARD COMPATIBILITY | Mini-ITX | Mini-ITX |
| CPU COOLER CLEARANCE | 70mm | 55mm |
| RISER CABLE | PCIe 3.0/4.0 X16 (170mm) | PCIe 3.0/4.0 X16 (170mm) |
| GRAPHHICS CARD COMPATIBILITY | 305×45mm | 305×60mm |
| CASE FANS SUPPORTED | Top: 2x 120mm Bottom: 1x 120mm | Top: 2x 120mm (replaced by AIO) Bottom: 1x 120mm |
| RADIATORS SUPPORTED | N/A | Top: 120 / 240mm |
| POWER SUPPLY COMPATIBILITY | SFX / SFX-L | SFX / SFX-L |
| 2.5 / 3.5” DRIVES SUPPORTED | 3x 2.5” | 3x 2.5” |

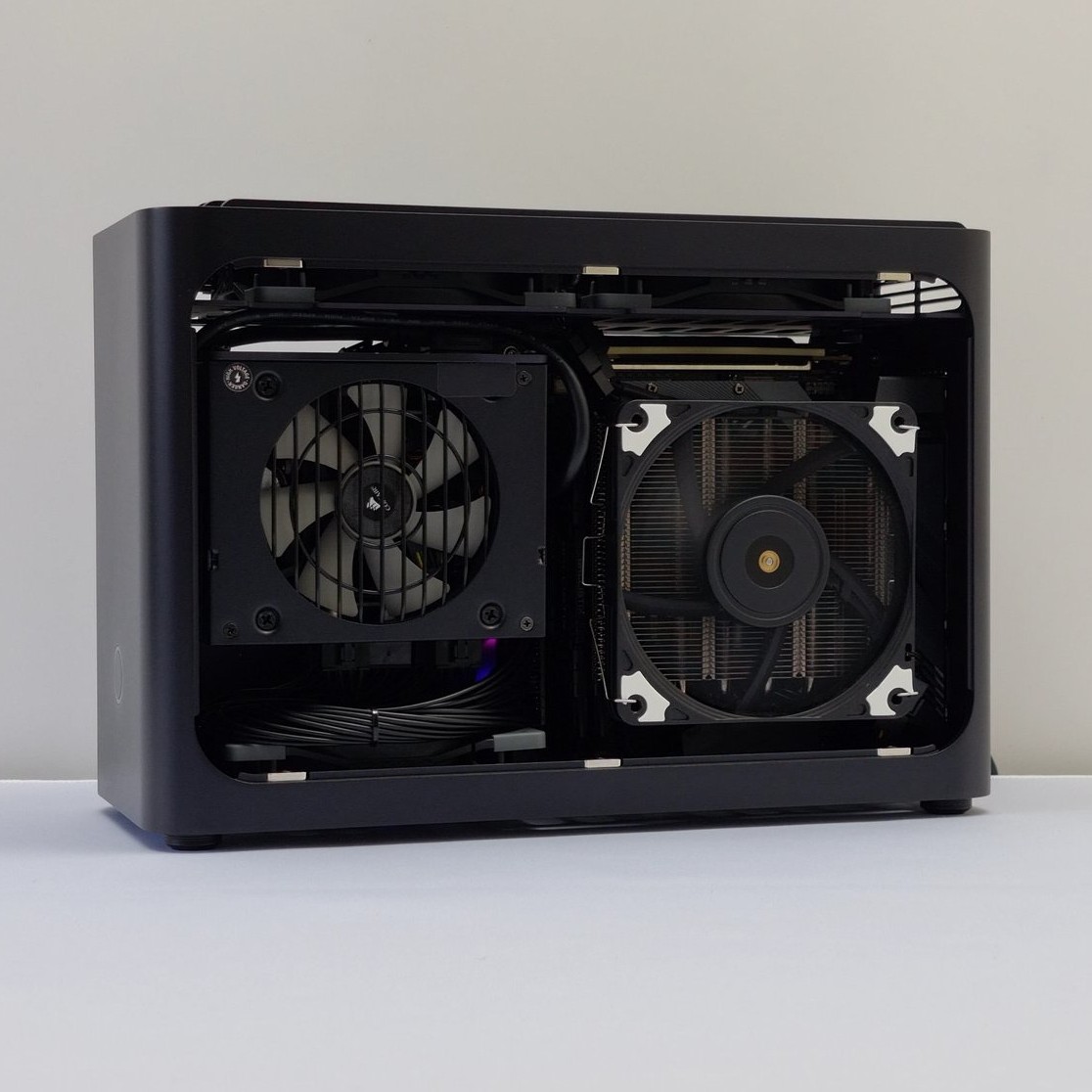

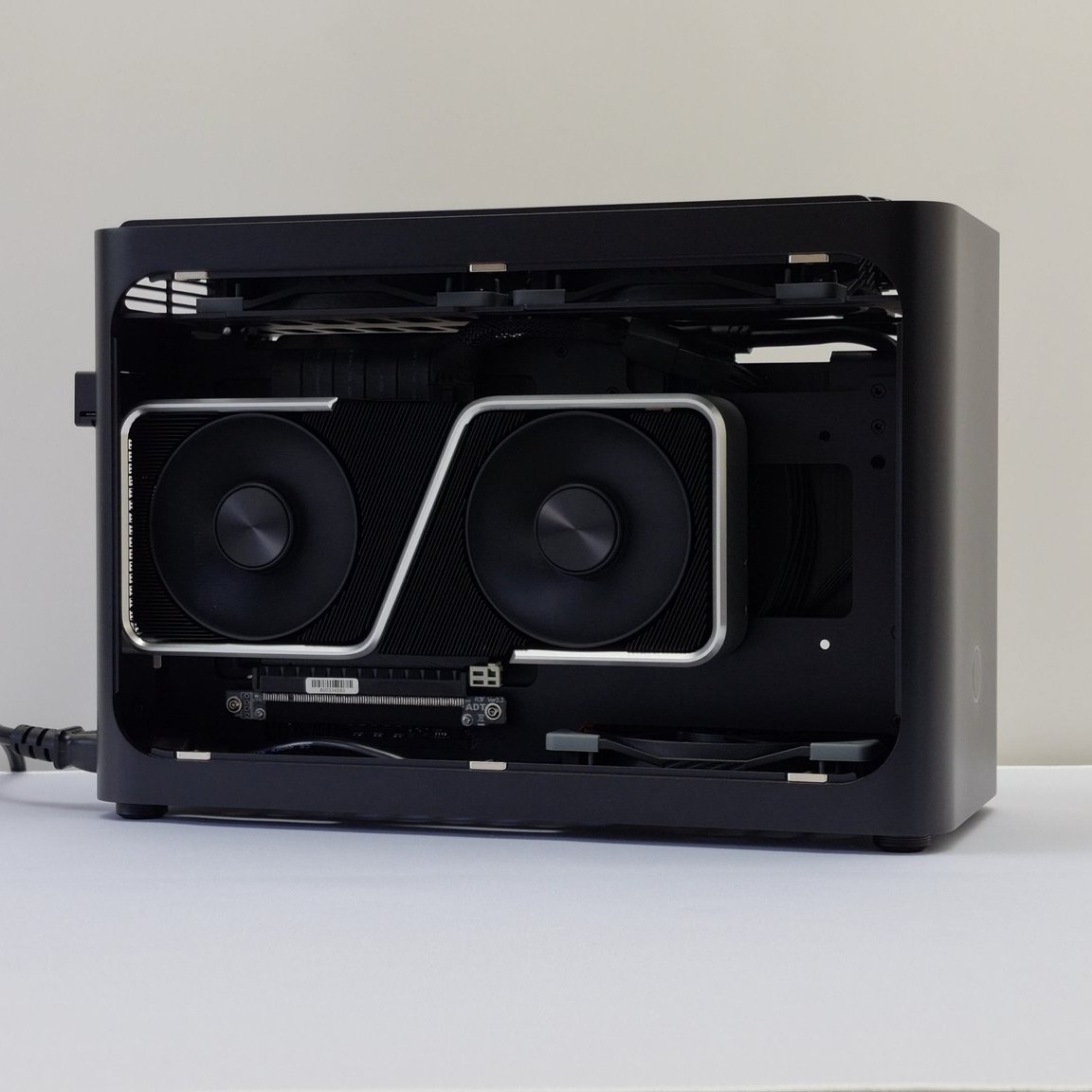

IQUNIX ZX1 (air cooled)
Air cooled version: we’ve updated some of the hardware to the most recent available.
MOTHERBOARD
Rog Strix B650E-I Gaming WiFi
CPU
Ryzen 7 7800X3D
GPU
Radeon RX 9070 XT
RAM
32GB Gskill S5 DDR5, 6000MHz, CL30
COOLER
Noctua L12 Ghost Edition + 120mm slim fan
PSU
Corsair SF1000 2024
STORAGE
1TB + 2TB NVME
FANS
1x NF-A12x25

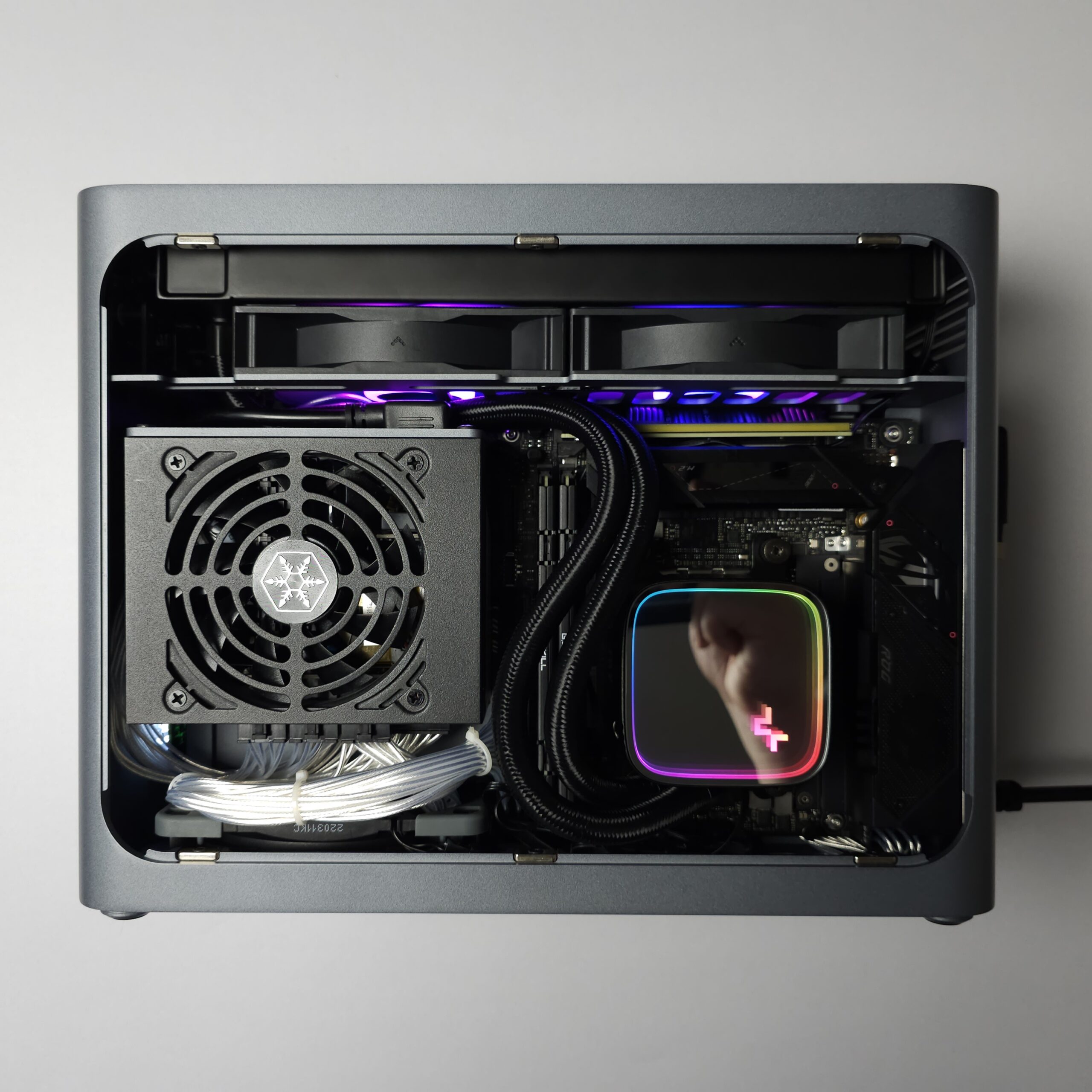

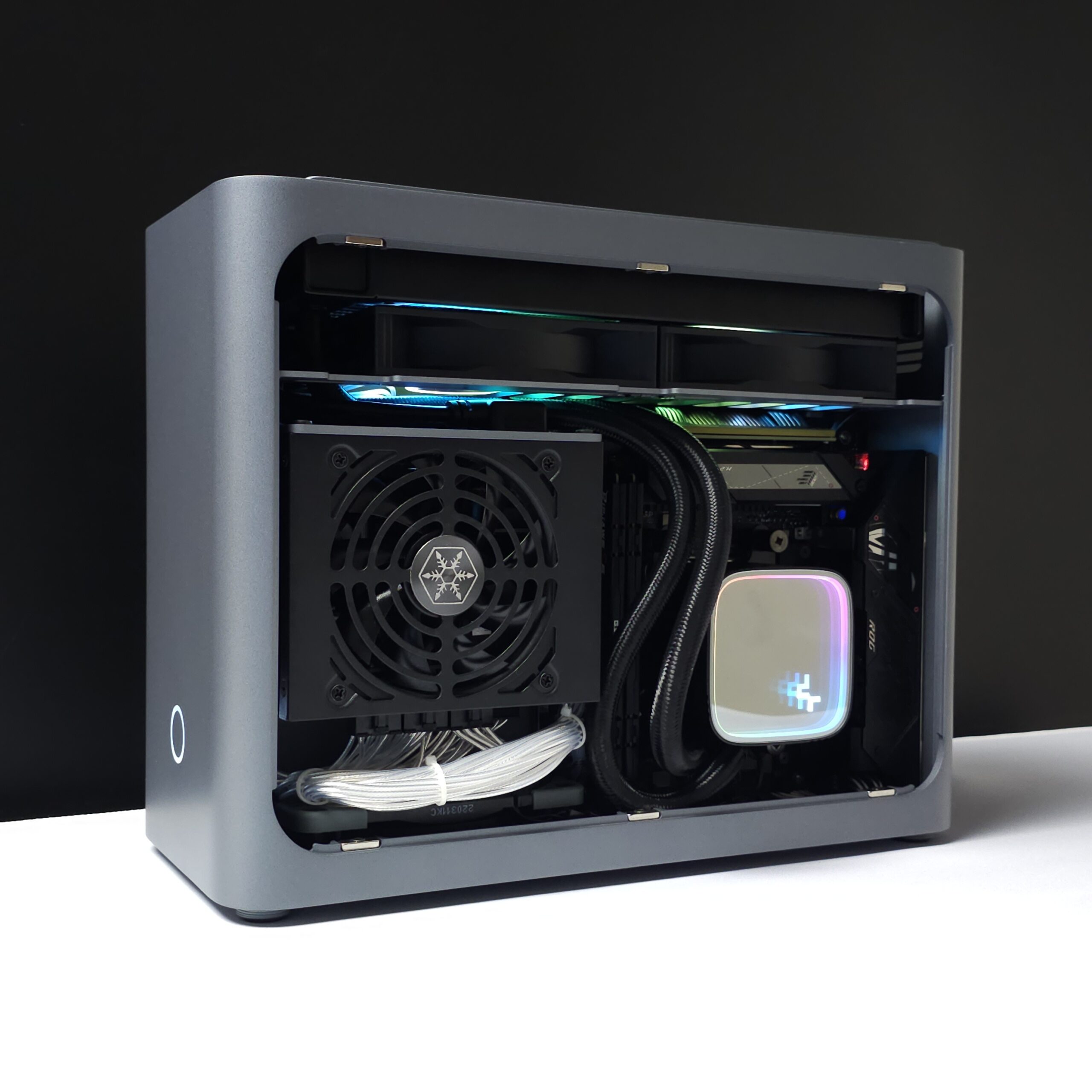

IQUNIX ZX1 (liquid cooling)
Watercooling version: we’ve updated some of the hardware to the most recent available.
MOTHERBOARD
Rog Strix B650E-I Gaming WiFi
CPU
Ryzen 7 7800X3D
GPU
Radeon RX 9070 XT
RAM
32GB Gskill S5 DDR5, 6000MHz, CL30
COOLER
CoolerMaster 240 Atmos Stealth
PSU
Corsair SF1000 2024
STORAGE
1TB + 2TB NVME
FANS
2x NF-A12x25 (AIO stock fan swap)
FINAL THOUGHTS
We love the aesthetics of the IQUNIX ZX1. Unfortunately its design makes it it difficult to build in and the curved shape reduces internal volume and hard ware compatibility.
