MCPRUE APOLLO SE AIR

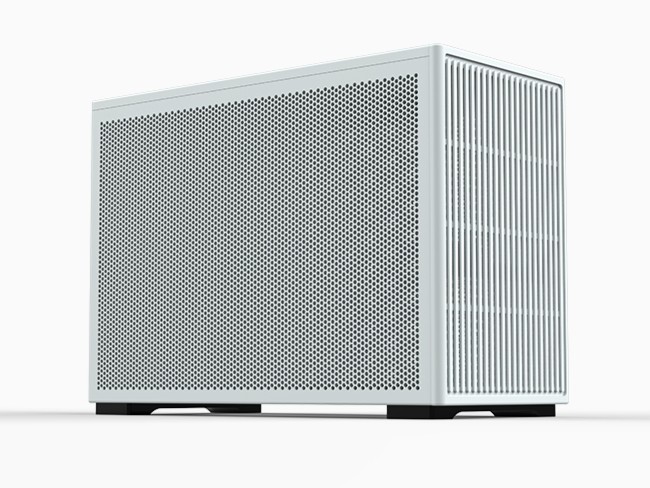

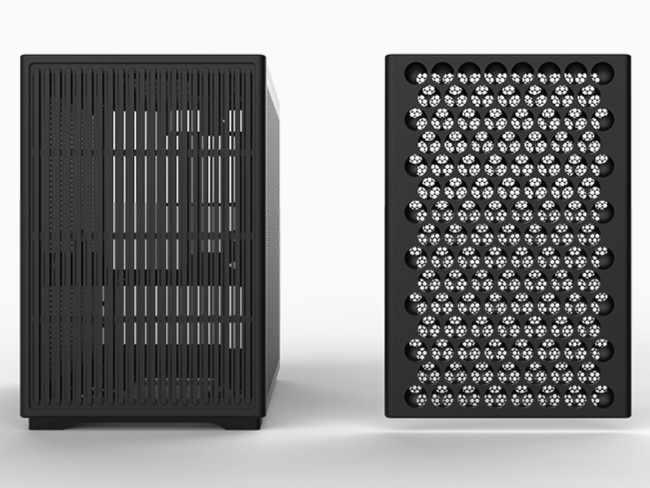

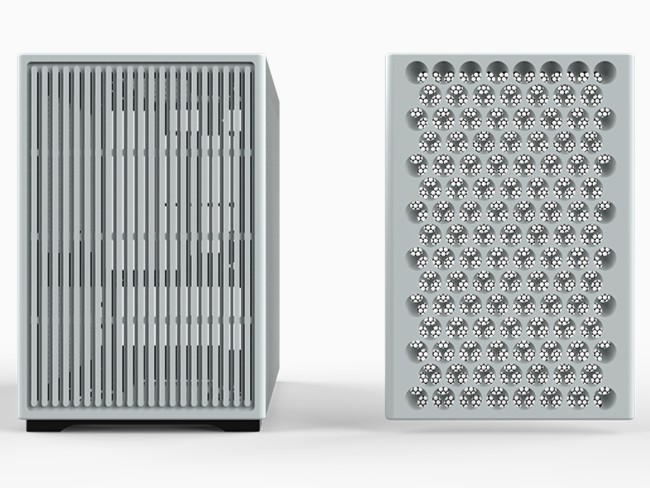

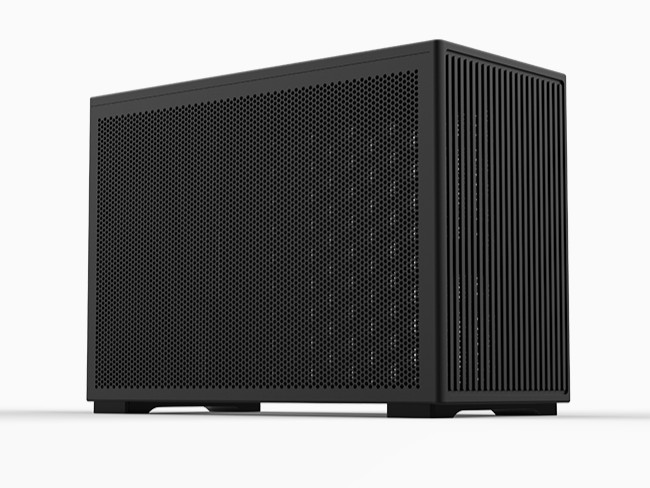

MCPRUE APOLLO AIR is 15.6L in volume, supports air coolers upto 148mm in height, modern 3 slot by 330mm graphics cards and side mounted liquid cooling. Case pricing between $349-359. The SE AIR features aluminium exterior with chamfered front panel edges and optimal spherical front panel.
SPECIFICATIONS
| MATERIALS | Aluminium T6063 & 1.5mm Steel |
| DIMENSIONS | 357.6×171.8×252.7mm (L×W×H without stand / case feet) |
| VOLUME | 15.6 Litres (without stand / case feet) |
| CASE I/O | Power Button, 1x USB 3.2 Type-C (Type-E Male), 1x USB 3.0 Type-C (USB3 20 Pin) |
| MOTHERBOARD SUPPORT | Mini-ITX |
| CPU COOLER CLEARANCE | 148mm air coolers 60mm pump height |
| GRAPHHICS CARD COMPATIBILITY | 330mm length, 65mm width & 155mm height (recommended GPU height should not exceed 145mm for power connector clearance) |
| LIQUID COOLING SUPPORT | 240 / 280 (side mounted) |
| CASE FANS SUPPORTED | Top: 2x 120 / 140mm (max GPU thickness 30mm) Front: 1x 120 / 140mm Side: 2x 120 / 140mm Rear: 1x 92mm (slim fan may be required depending on hardware configuration) |
| POWER SUPPLY COMPATIBILITY | SFX / SFX-L |
| 2.5 / 3.5” DRIVES SUPPORTED | NONE |
| COLOURS | Silver & Space Black |
We plan on sharing additional media including builds using APOLLO SE AIR during the next retail release window.
