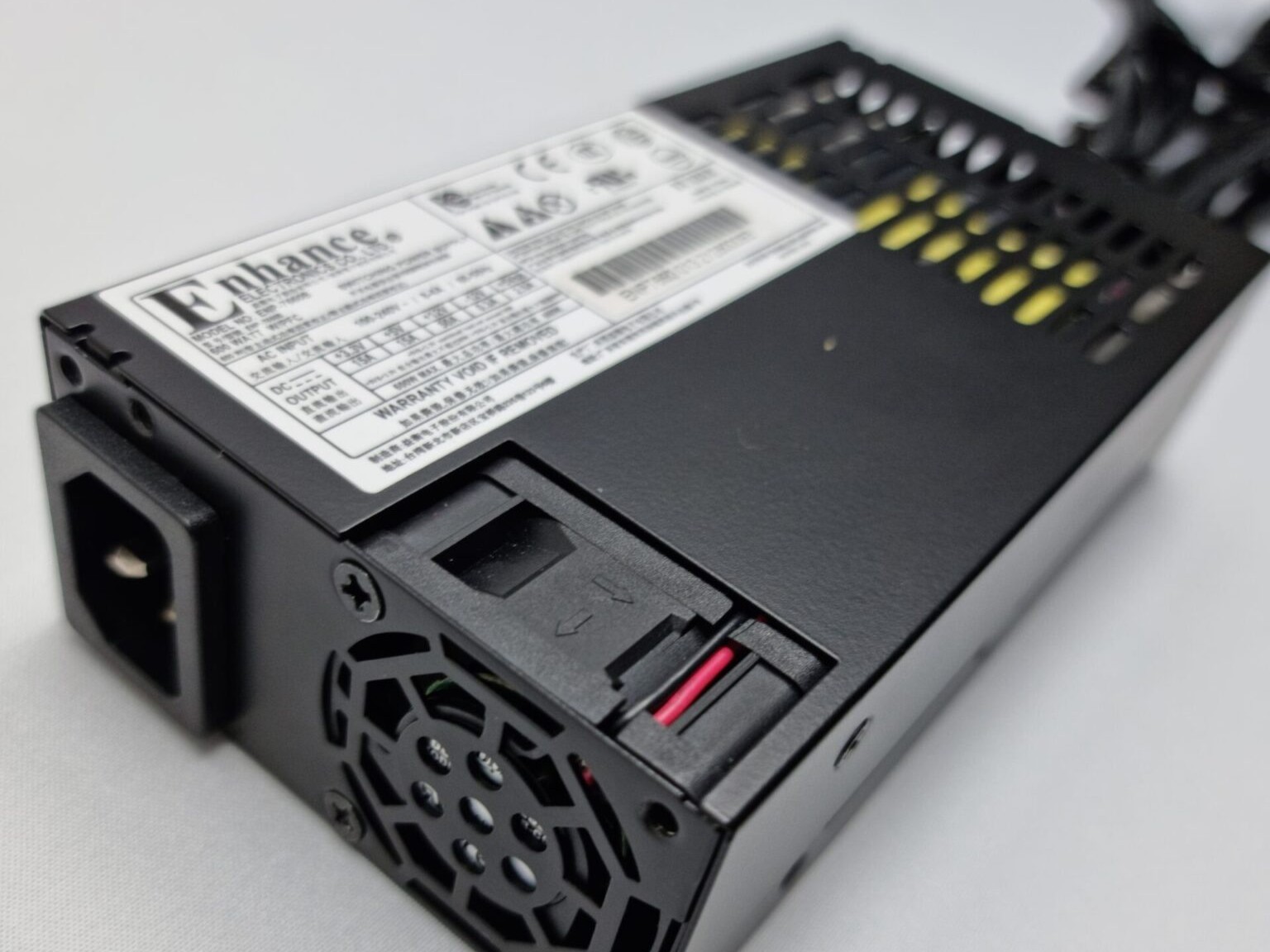

Enhance ENP-7660

ENHANCE ENP-7660

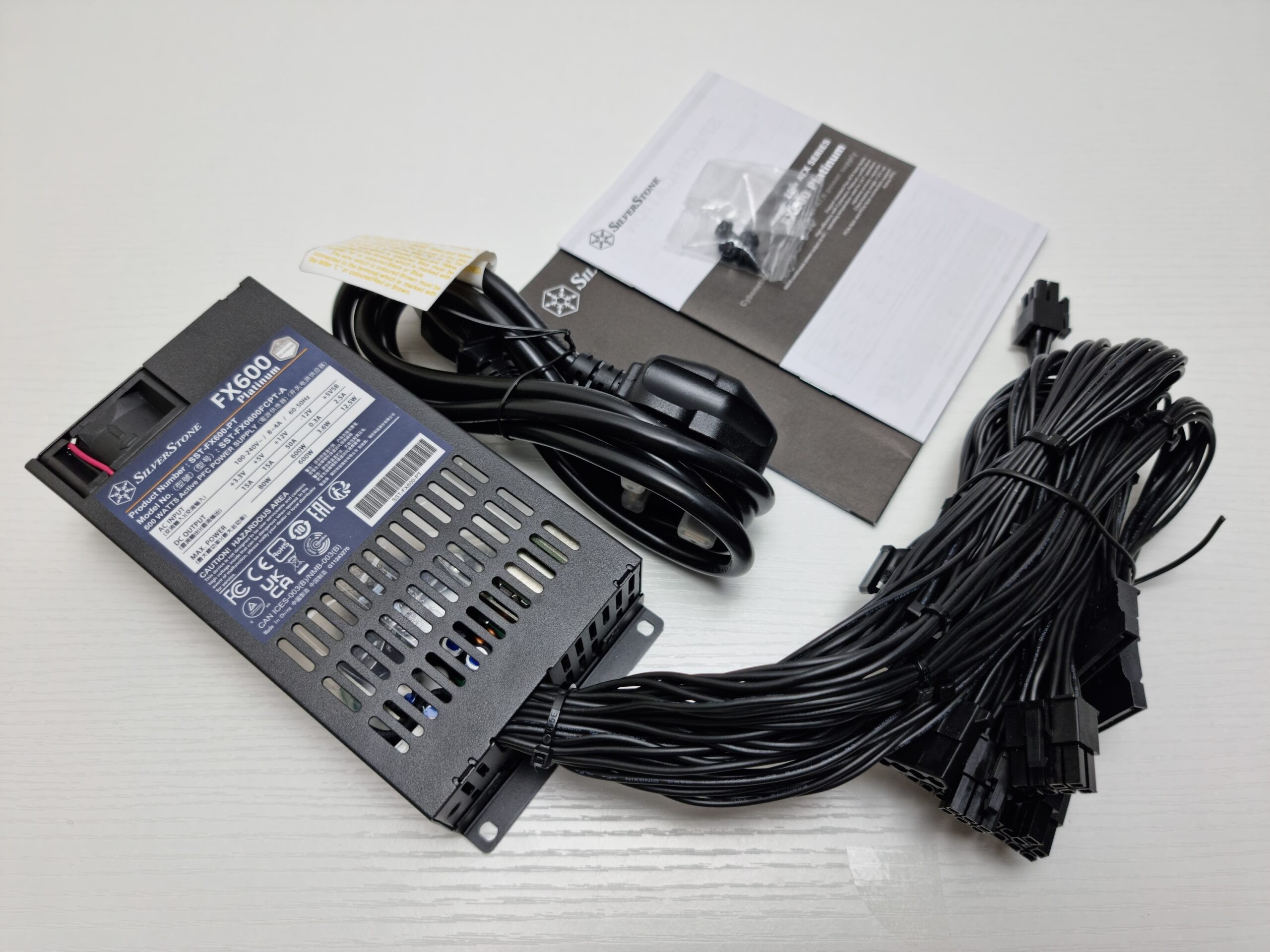

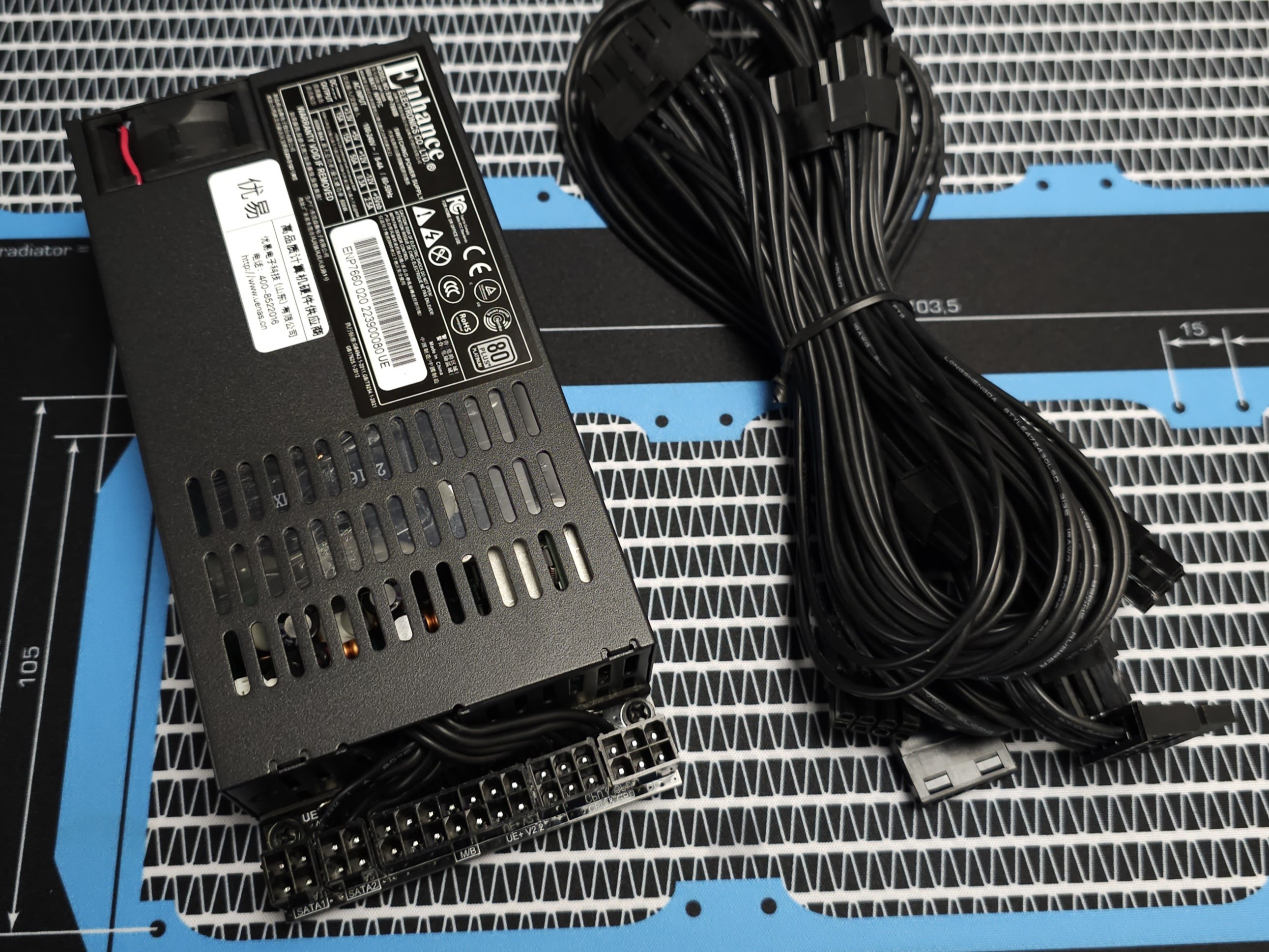

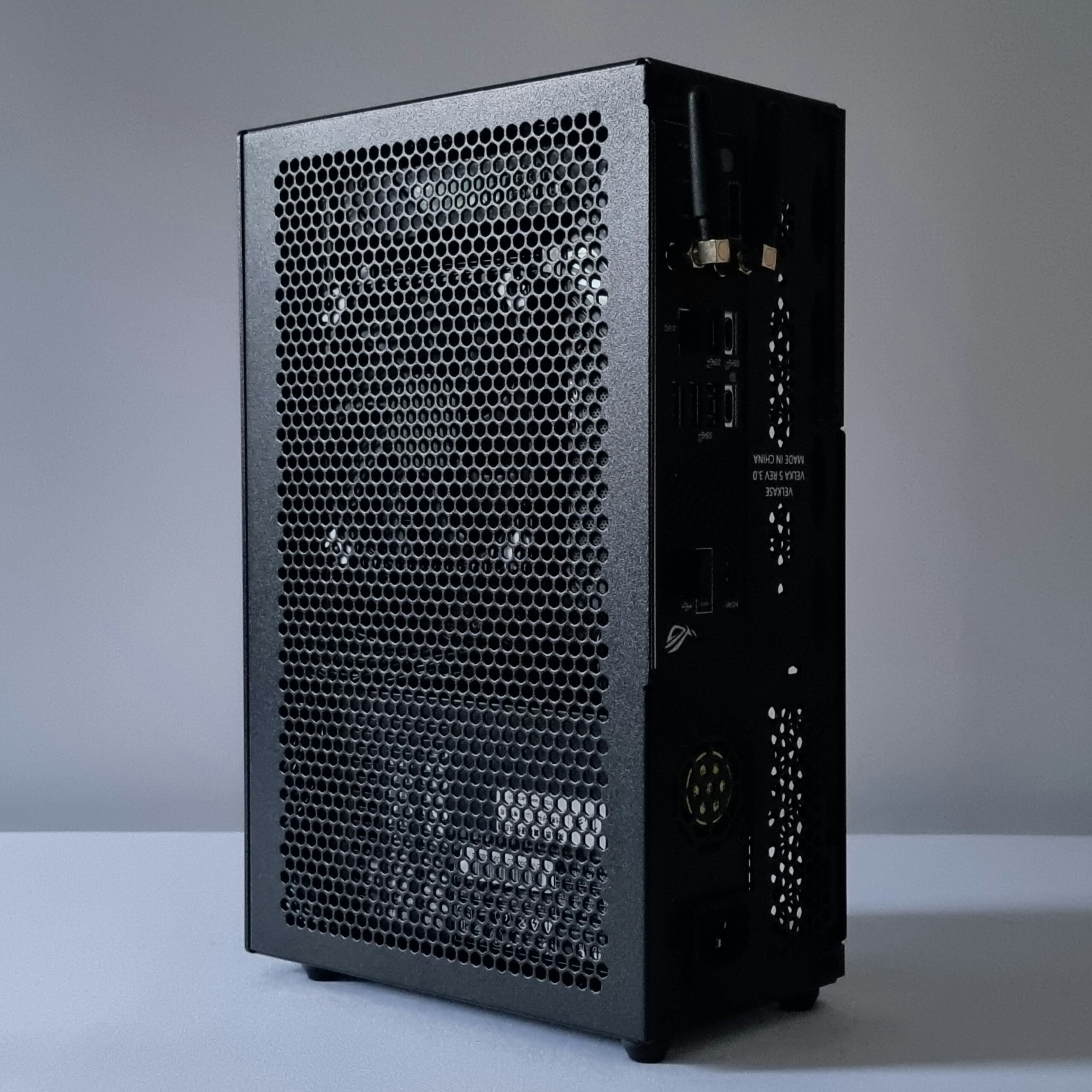

ENP-7660 is 600W Platinum Flex-ATX power supply from Enhance Electronics. This OEM model is also used by other manufacturers such as SilverStone, Velkase, Overtek. The ENP-7660B has been replaced by ENP-7660L fully modular variant.

SPECIFICATIONS

MANUFACTURER (OEM)

Enhance Electronics

FORM FACTOR

Flex-ATX

CERTIFICATION

Platinum

WATTAGE

600W

OPERATING TEMPERATURE

0°C~40°C

DIMENSIONS

81.5×40.5×150mm (W×D×L)

FAN SPECIFICATIONS

40x20mm

POWER CONNECTORS

Connectors vary based on manufacturer/brand, but typically include: 1x 4+4 pin EPS, 1x 12VPWR, 2x 6+2 pin PCIe, 1x 20+4 pin

SAFETY FEATURES

- Over Power Protection (110~130%)
- Over Voltage Protection
- Short Circuit Protection
- Over Temperature Protection

NOISE PROFILE

Typical noise output for Enhance ENP-7660B models. Noise output may vary based on the including fan.
WATTAGEFAN RPMdB(A) at 50CM
50W287532.5
100W295032.5
200W298033
300W303033
400W309033.5
500W455035.5
600W840052

MANUFACTURERS MODELS

We've included links to manufacturer Flex-ATX models based on the 600W ENP-7660 below.

CONCLUSIONS

The ENP 7660 is near silent, with only some fan motors audible up to 480W. RPM and noise levels will dramatically increase at 480~540~600W or if PSU becomes too hot.

Enhance Electronics ENP-7660 is widely considered the best Flex-ATX power supply for small form factor systems. Warranty may vary based on country and/or retailer.

Manufacturer may alter their variants such as changing cable selections, included fan and external branding.
